VIAIR | 400C Dual Performance Value Pack

Description

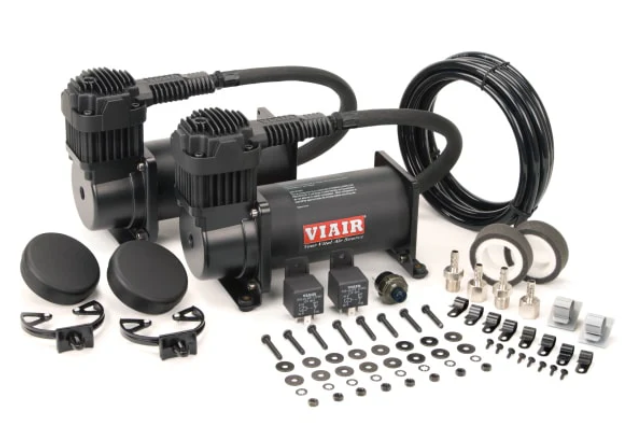

The VIAIR 400C Dual Performance Value Pack is our fastest filling, highest CFM air compressor system, This kit is perfect for industrial use, air horns, off-road applications, and a great addition to any air suspension kit. The 400C Dual Performance Value Pack includes two 12-volt Chrome or Stealth Black VIAIR 400C air compressors, two heavy duty 40-amp relays and an 110 PSI cut-on, 145 PSI cut-off pressure switch. Each Dual Performance Value Pack comes with remote mount filter assemblies and mounting hardware.

Specifications

SPECS:

CFM: 4.55 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 33% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 10.0 Gallon
Combined Max. Amp Draw: 60-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

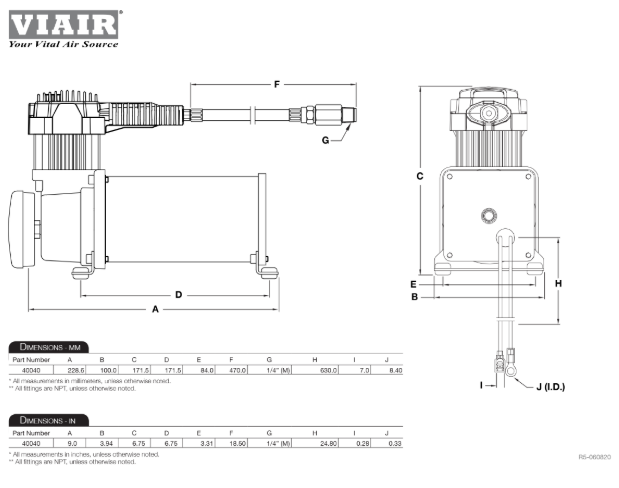

Dimensions: 9″L x 4″W x 6.75″H (Each Unit)
Net Weight: 17.30 lbs.

FEATURES:

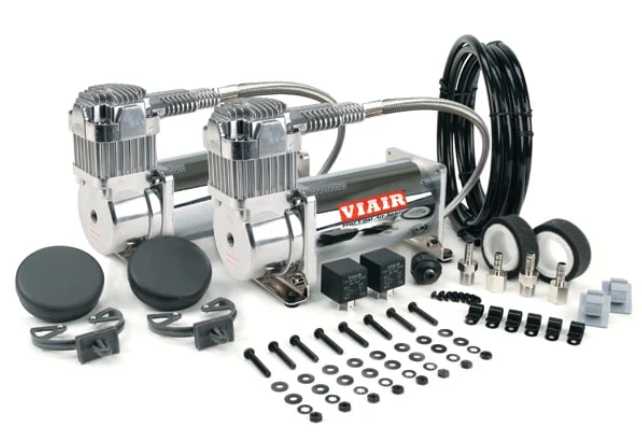

(2) 400C Chrome Air Compressors
w/Thermal Overload Protectors
(2) Air Filter Assemblies
(2) Remote Mount Brackets
(2) Sets of Remote Mount Fittings
(2) Sets of Spare Air Filter Elements
(2) Leader Hose Clips
(6) Air Line Clips with Included Hardware
(8) Sets of Nuts, Bolts, Washers and Lock Washers
(2) 40-Amp Relays
(1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off)
(2) Stainless Steel Braided Leader Hoses with Inline Check Valve
Air Line (For Remote Mount Filter Installation)

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

Performance
