VIAIR | 380C Dual Performance Value Pack
Color:
SELECT OPTIONS
Color:
Color:
Description

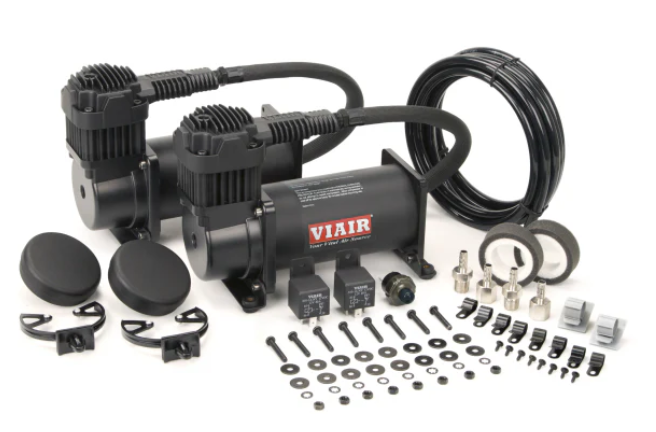

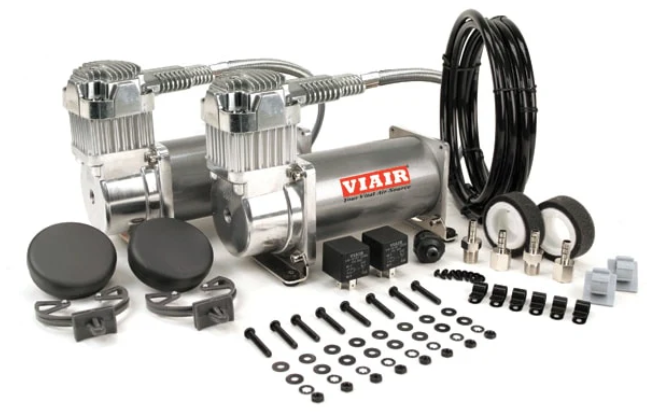

The VIAIR 380C Dual Performance Value Pack is ideal for air suspension systems capable of providing a maximum of 200 PSI and a 100% duty cycle. The kit features two 12-volt Pewter, Chrome, or Stealth Black 380C air compressors, two heavy duty 40-amp relays and a 165 PSI cut-on, 200 PSI cut-off heavy-duty pressure switch. Each 380C Dual Performance Value Pack also comes with remote mountable air filter assemblies and mounting hardware.
Specifications
SPECS:
CFM: 2.54 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
Max. Working Pressure: 200 PSI
Max. Air Tank Size: 10.0 Gallon
Combined Max. Amp Draw: 46-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

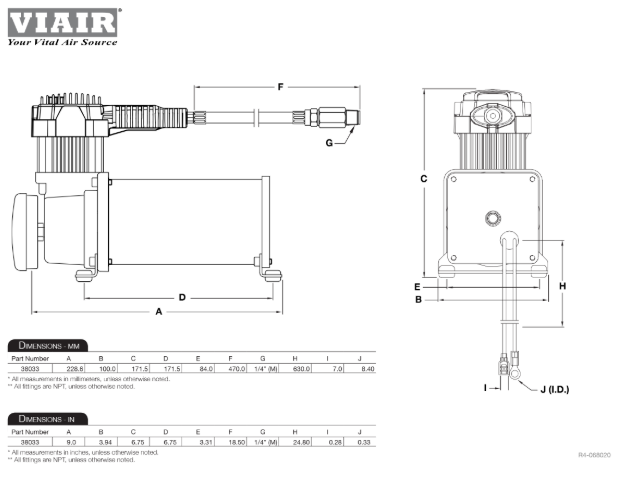

Dimensions: 9″L x 4″W x 6.75″H (Each Unit)
Net Weight: 17.50 lbs.
FEATURES:
(2) 380C (Chrome, Pewter, or Stealth Black) Air Compressors
w/Thermal Overload Protectors
(2) Air Filter Assemblies
(2) Remote Mount Brackets
(2) Sets of Remote Mount Fittings
(2) Sets of Spare Air Filter Elements
(2) Leader Hose Clips
(6) Air Line Clips with Included Hardware
(8) Sets of Nuts, Bolts, Washers and Lock Washers
(2) 40-Amp Relays
(1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
(2) Stainless Steel Braided Leader Hoses with Inline Check Valve
Air Line (For Remote Mount Filter Installation)
PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
PSI | CFM | A | BAR | LPM | A |
---|---|---|---|---|---|
0 | 2.54 | 28 | 0 | 72.0 | 28 |
10 | 2.42 | 29 | 1.0 | 67.0 | 30 |
20 | 2.30 | 31 | 2.0 | 61.7 | 33 |
30 | 2.17 | 33 | 3.0 | 57.5 | 34 |
40 | 2.07 | 34 | 4.0 | 53.5 | 36 |
50 | 1.95 | 35 | 5.0 | 49.8 | 37 |
60 | 1.87 | 36 | 6.0 | 46.4 | 39 |
70 | 1.78 | 37 | 7.0 | 43.3 | 41 |
80 | 1.70 | 38 | 8.0 | 40.3 | 43 |
90 | 1.61 | 39 | 9.0 | 37.2 | 44 |
100 | 1.54 | 41 | 10.0 | 34.5 | 42 |
110 | 1.46 | 42 | 11.0 | 31.8 | 41 |
120 | 1.40 | 43 | 12.0 | 29.2 | 40 |
130 | 1.32 | 44 | 13.0 | 26.6 | 38 |
140 | 1.25 | 43 | 14.0 | 23.7 | 37 |
150 | 1.19 | 42 | |||
160 | 1.12 | 41 | |||
170 | 1.06 | 40 | |||
180 | 0.99 | 39 | |||
190 | 0.93 | 38 | |||
200 | 0.86 | 37 |
Fill Rates
2.5 GALLON TANK | FILL RATE |
---|---|
0 to 200 PSI | 3 min. 13 sec. (± 10 sec.) |
165 to 200 PSI | 53 sec. (± 05 sec.) |
5.0 GALLON TANK | FILL RATE |
0 to 200 PSI | 7 min. 11 sec. (± 15 sec.) |
165 to 200 PSI | 2 min. 06 sec. (± 10 sec.) |
