VIAIR | 325C Compressor
Configuration
SELECT OPTIONS
Configuration
Configuration
Description

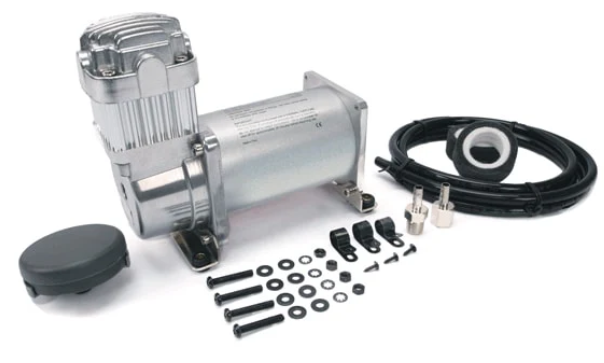

The 325C air compressor is used in a variety of applications from industrial to motorsports. It has a max run time of 20 minutes and comes in 4 different configurations to fit the needs of every customer.
See Resources Section below for wiring Diagram Options
Specifications
SPECS:
CFM: 1.59 @ 0 PSI
12-Volt / 24-Volt
Permanent Magnetic Motor
Duty Cycle: 33% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 5.0 Gallon
Max. 12V Amp Draw: 22-Amps
Max. 24V Amp Draw: 13-Amps
1/4″ NPT Intake Port
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

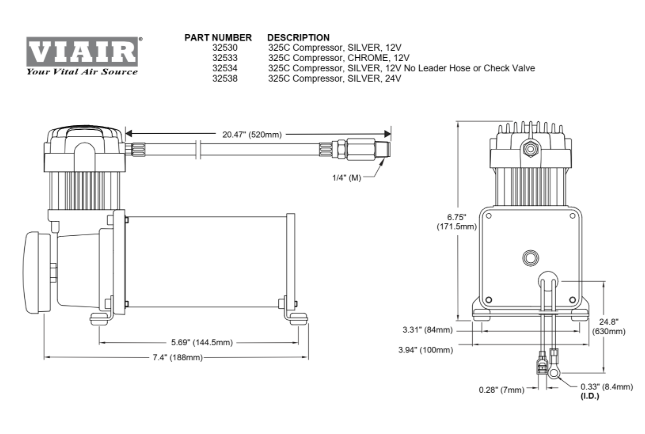

Dimensions: 8″L x 4″W x 6.75″H
Net Weight: 7.5 lbs.
FEATURES:
Thermal Overload Protector
Check Valve
Vibration Isolators
Mounting Hardware

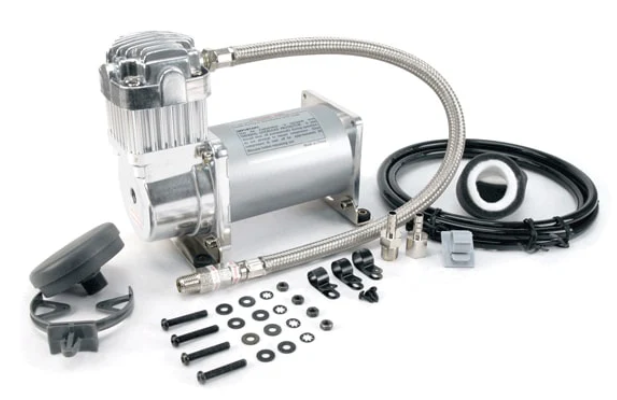

Stainless Steel Braided Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instructions
PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
PSI | CFM | A | BAR | LPM | A |
---|---|---|---|---|---|
0 | 1.59 | 14 | 0 | 45.0 | 14 |
10 | 1.40 | 16 | 1.0 | 37.6 | 16 |
20 | 1.24 | 16 | 2.0 | 34.1 | 18 |
30 | 1.20 | 18 | 3.0 | 32.3 | 18 |
40 | 1.17 | 18 | 4.0 | 29.1 | 20 |
50 | 1.08 | 19 | 5.0 | 26.0 | 21 |
60 | 1.01 | 20 | 6.0 | 23.7 | 21 |
70 | 0.93 | 21 | 7.0 | 21.5 | 21 |
80 | 0.87 | 21 | 8.0 | 19.7 | 21 |
90 | 0.82 | 21 | 9.0 | 18.0 | 21 |
100 | 0.77 | 21 | 10.0 | 16.5 | 21 |
110 | 0.72 | 21 | |||
120 | 0.68 | 21 | |||
130 | 0.64 | 21 | |||
140 | 0.60 | 21 | |||
150 | 0.57 | 21 |
24-Volt Compressor - Supply Voltage 28 Volts
PSI | CFM | A | BAR | LPM | A |
---|---|---|---|---|---|
0 | 1.80 | 7 | 0 | 51.0 | 7 |
10 | 1.68 | 8 | 1.0 | 44.1 | 8 |
20 | 1.41 | 9 | 2.0 | 38.7 | 10 |
30 | 1.36 | 10 | 3.0 | 36.5 | 10 |
40 | 1.31 | 10 | 4.0 | 34.3 | 11 |
50 | 1.25 | 10 | 5.0 | 32.1 | 11 |
60 | 1.20 | 11 | 6.0 | 30.0 | 11 |
70 | 1.15 | 11 | 7.0 | 28.0 | 12 |
80 | 1.09 | 11 | 8.0 | 26.4 | 13 |
90 | 1.04 | 11 | 9.0 | 24.6 | 12 |
100 | 0.99 | 12 | 10.0 | 22.5 | 12 |
110 | 0.95 | 13 | |||
120 | 0.92 | 13 | |||
130 | 0.87 | 12 | |||
140 | 0.81 | 12 | |||
150 | 0.78 | 12 |
Fill Rates
12-Volt Compressor
2.5 GALLON TANK | FILL RATE |
---|---|
0 to 105 PSI | 2 min. 35 sec. (± 10 sec.) |
85 to 105 PSI | 40 sec. (± 05 sec.) |
0 to 145 PSI | 4 min. 15 sec. (± 10 sec.) |
110 to 145 PSI | 1 min. 25 sec. (± 05 sec.) |
5.0 GALLON TANK | FILL RATE |
0 to 105 PSI | 5 min. 15 sec. (± 10 sec.) |
85 to 105 PSI | 1 min. 25 sec. (± 05 sec.) |
0 to 145 PSI | 8 min. 45 sec. (± 15 sec.) |
110 to 145 PSI | 2 min. 55 sec. (± 10 sec.) |
24-Volt Compressor
2.5 GALLON TANK | FILL RATE |
---|---|
0 to 105 PSI | 2 min. 25 sec. (± 10 sec.) |
85 to 105 PSI | 35 sec. (± 05 sec.) |
0 to 145 PSI | 3 min. 30 sec. (± 10 sec.) |
110 to 145 PSI | 1 min. 10 sec. (± 05 sec.) |
5.0 GALLON TANK | FILL RATE |
0 to 105 PSI | 4 min. 45 sec. (± 10 sec.) |
85 to 105 PSI | 1 min. 05 sec. (± 05 sec.) |
0 to 145 PSI | 7 min. 25 sec. (± 15 sec.) |
110 to 145 PSI | 2 min. 25 sec. (± 10 sec.) |
