VIAIR | 310C Stealth Series Dual Performance Value Pack (31032)
SELECT OPTIONS
Description
The 310 Stealth-Series dual pack compressors feature upgraded internals, a newly developed head and a new metal filter assembly with internally integrated muffler, reducing audible noise levels by up to 50%. Equipped with spring-loaded vibration isolators, black sleeved stainless steel leader hose and black nickel plated check valves. RoHs/REACH certified.
See Resources Section below for wiring Diagram Options
Specifications
SPECS:
CFM: 2.05 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI
Duty Cycle: 50% @ 200 PSI
Max. Working Pressure: 200 PSI
Max. Air Tank Size: 10.0 Gallon
Max. 12V Amp Draw: 46-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

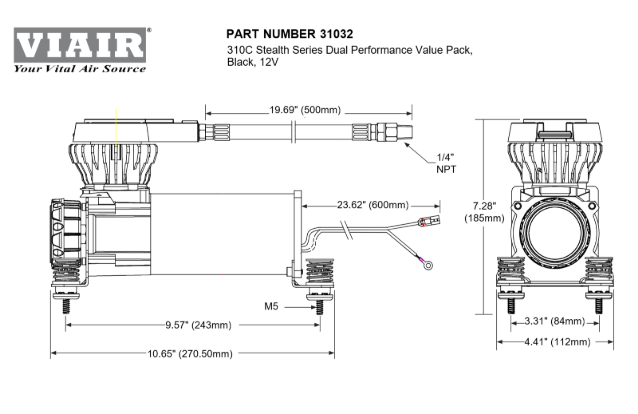

Dimensions: 10.7″L x 4.4″W x 7.3″H
Net Weight: 19.5lbs.

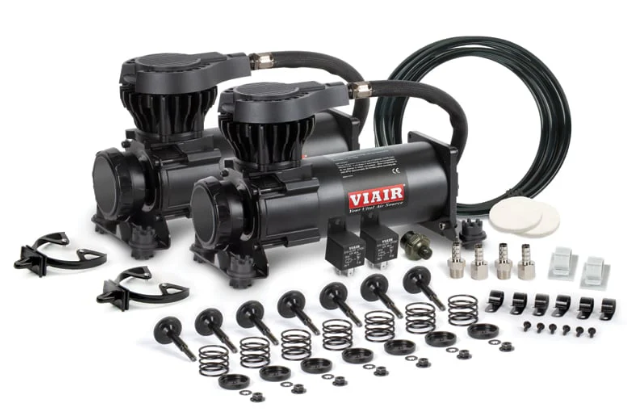

FEATURES:
Thermal Overload Protector
Heavy Duty Pressure Switch
(165 PSI on, 200 PSI off)
Black Sleeved
Stainless Steel Braided Leader Hoses
Inline Check Valve
40-Amp 12v Relays
Spring Loaded Vibration Isolating Feet
Mounting Hardware
Air Line for Remote Mount Air Filter
Remote Mount 6-Stage
Air Filter/Muffler Assemblies
(2) Replacement Air Filter Elements
Installation Instructions
PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. * Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary. ** Compared to VIAIR 350C/380C compressors noise levels.
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.05 | 25 | 0 | 58.0 | 25 |
| 10 | 1.86 | 27 | 1.0 | 51.7 | 29 |
| 20 | 1.80 | 29 | 2.0 | 49.0 | 31 |
| 30 | 1.73 | 31 | 3.0 | 45.7 | 32 |
| 40 | 1.64 | 32 | 4.0 | 42.7 | 33 |
| 50 | 1.57 | 32 | 5.0 | 41.0 | 34 |
| 60 | 1.49 | 33 | 6.0 | 38.3 | 35 |
| 70 | 1.44 | 34 | 7.0 | 36.3 | 35 |
| 80 | 1.39 | 34 | 8.0 | 34.7 | 35 |
| 90 | 1.32 | 35 | 9.0 | 33.0 | 35 |
| 100 | 1.28 | 35 | 10.0 | 31.7 | 35 |
| 110 | 1.26 | 35 | 11.0 | 30.3 | 36 |
| 120 | 1.20 | 35 | 12.0 | 28.3 | 36 |
| 130 | 1.17 | 35 | 13.0 | 26.7 | 36 |
| 140 | 1.15 | 35 | 14.0 | 25.0 | 36 |
| 150 | 1.09 | 36 | |||
| 160 | 1.07 | 37 | |||
| 170 | 1.02 | 36 | |||
| 180 | 0.98 | 36 | |||
| 190 | 0.94 | 36 | |||
| 200 | 0.91 | 36 |
Fill Rates
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 200 PSI | 3 min. 40 sec. (± 10 sec.) |
| 165 to 200 PSI | 55 sec. (± 10 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 200 PSI | 7 min. 10 sec. (± 15 sec.) |
| 165 to 200 PSI | 1 min. 40 sec. (± 10 sec.) |
