Description
The 300P SXS is an upgraded version of our regular 300P, equipped with an SAE power cord that allows you to use different attachments to power the compressor. It's tailored for off-road, comes with mounting straps for UTVs and can inflate tires up to 33". It's a great choice for new and experienced off-roaders looking for a fast and dependable unit that will not break the bank.
What’s in the Box
Carry Bag
Specifications
SPECS:
CFM: 2.30 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 33% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Amp Draw: 30-Amps
Ingress Protection Rating: IP54
Max Ambient Temp: +158°F
Min Ambient Temp: -4°F
Dimensions: 9″L x 4.9″W x 7.5″H
Net Weight: 8.70 lbs.
Power Cord Length: 8 ft.
Air Hose Length: 25 ft.
FEATURES:
Thermal Overload Protector

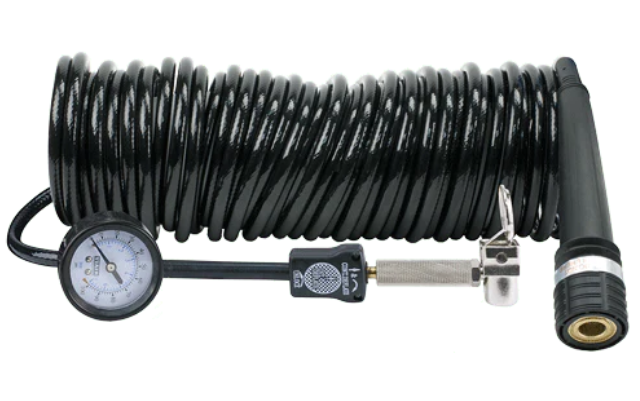

5-in-1 Inflator/Deflator Air Hose with Inline 60 PSI Gauge
Aluminum Sand Tray with Vibration Isolators
Permanent 2-pin SAE for battery with 40-amp inline fuse holder
Dual Battery Clamps with 2-Pin SAE Connector

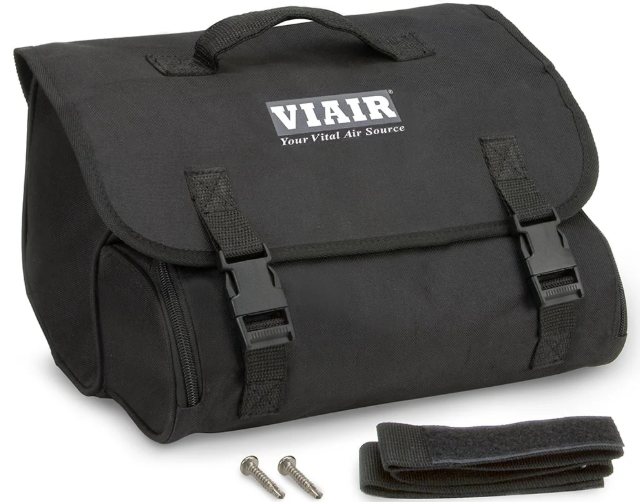

Heavy Duty Carry Bag with Straps and Hardware for Mounting

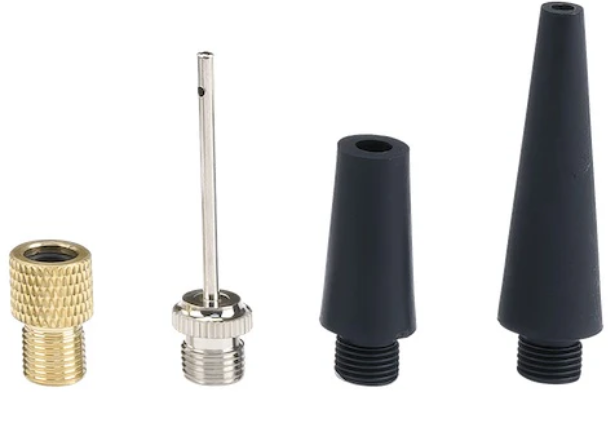

3 pc. Inflation Tips Kit
Presta Valve Adaptor
PLEASE NOTE:
The air hose supplied with this kit may become brittle from prolonged exposure to UV/sunlight. – Stow when not in use. Never allow the hose to come into contact with the head of the compressor during use (melting hazard). The use of the included air hose is not recommended in sub zero or freezing conditions. The 300P does not work with Presta bicycle valves, unless used with a Presta Valve Adaptor. The 300P does not work with the VIAIR Winterization Kit (P/N 90145).
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
PSI |
CFM |
A |
BAR |
LPM |
A |
0 |
2.30 |
17 |
0 |
65.0 |
17 |
10 |
1.94 |
21 |
1.0 |
52.6 |
22 |
20 |
1.76 |
23 |
2.0 |
46.3 |
24 |
30 |
1.62 |
24 |
3.0 |
40.5 |
26 |
40 |
1.48 |
25 |
4.0 |
35.7 |
27 |
50 |
1.34 |
27 |
5.0 |
31.0 |
27 |
60 |
1.24 |
27 |
6.0 |
26.6 |
28 |
70 |
1.13 |
27 |
7.0 |
23.6 |
29 |
80 |
0.99 |
28 |
8.0 |
19.1 |
30 |
90 |
0.92 |
28 |
9.0 |
15.8 |
29 |
100 |
0.85 |
29 |
10.0 |
14.0 |
28 |
110 |
0.74 |
30 |
|
|
|
120 |
0.63 |
30 |
|
|
|
130 |
0.56 |
29 |
|
|
|
140 |
0.53 |
28 |
|
|
|
150 |
0.46 |
27 |
|
|
|
Fill Rates
31″ X 10.5″ |
FILL RATE |
0 to 30 PSI |
3 min. 25 sec. (± 10 sec.) |
15 to 30 PSI |
2 min. 00 sec. (± 05 sec.) |
33″ X 12.5″ |
FILL RATE |
0 to 30 PSI |
5 min. 00 sec. (± 10 sec.) |
15 to 30 PSI |
2 min. 45 sec.(± 05 sec.) |
Product Resources
User Manual

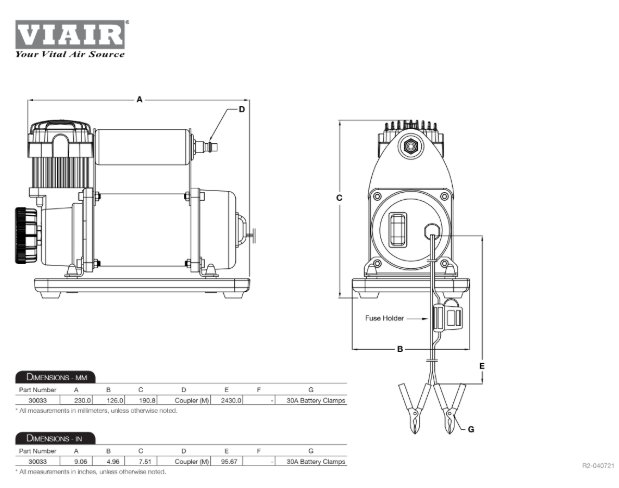

Dimensional Drawing
