VIAIR | 300P RVS Portable Compressor (30034)
SELECT OPTIONS
Description
The VIAIR 300P-RVS is a powerful and compact 12-volt portable tire inflator perfect for RV Tow-ables and smaller RV’s. 300P-RVS is able to reach and fill most Towable size tires from 80 to 90 PSI in just 44 seconds.
Specifications
SPECS:
CFM: 2.30 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 33% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Amp Draw: 30-Amps
Max. Tire Size: 245/70R19.5
Ingress Protection Rating: IP54
Max Ambient Temp: +158°F
Min Ambient Temp: -4°F

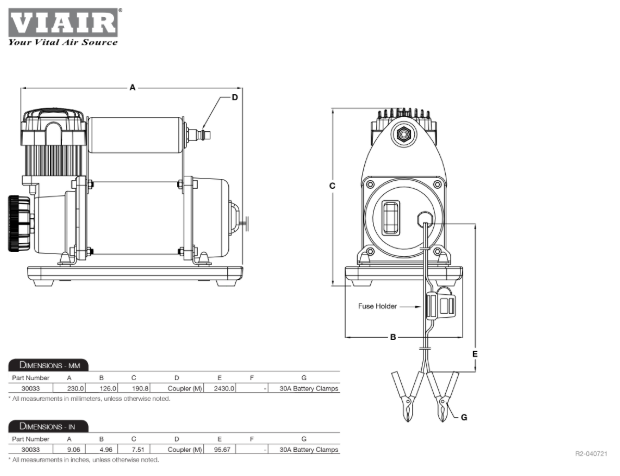

Dimensions: 9″L x 4.9″W x 7.5″H
Net Weight: 8.70lbs.
Power Cord Length: 8ft.
Air Hose Length: 30ft.

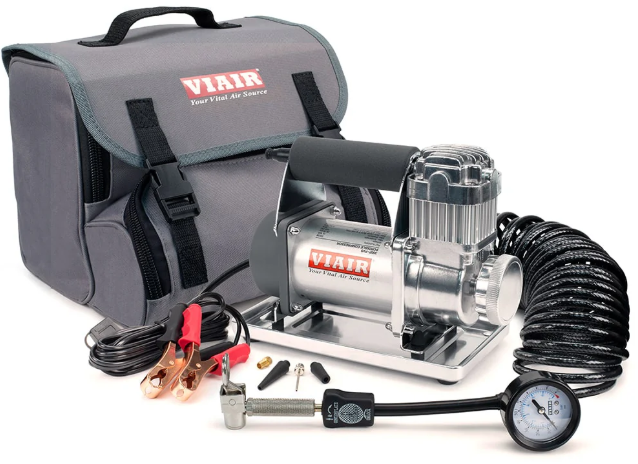

FEATURES:
Thermal Overload Protector
5-in-1 Inflator/Deflator Air Hose with Inline 150 PSI Gauge
Aluminum Sand Tray with Vibration Isolators

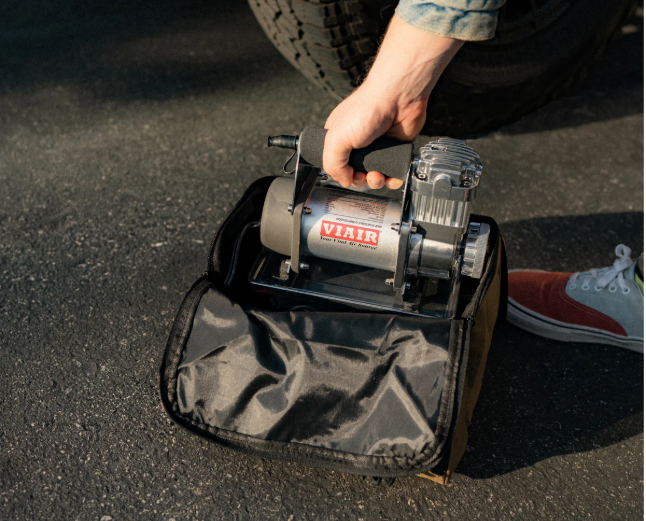

Deluxe Dual Compartment Carry Bag
40-Amp Inline Fuse Holder
Dual Battery Clamps
3pc. Inflation Tips Kit
Presta Valve Adaptor
PLEASE NOTE:
The 300P-RVS does not work with Presta bicycle valves, unless used with a Presta Valve Adaptor. The 300P-RVS does not work with the VIAIR Winterization Kit (P/N 90145).
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.30 | 17 | 0 | 65.0 | 17 |
| 10 | 1.94 | 21 | 1.0 | 52.6 | 22 |
| 20 | 1.76 | 23 | 2.0 | 46.3 | 24 |
| 30 | 1.62 | 24 | 3.0 | 40.5 | 26 |
| 40 | 1.48 | 25 | 4.0 | 35.7 | 27 |
| 50 | 1.34 | 27 | 5.0 | 31.0 | 27 |
| 60 | 1.24 | 27 | 6.0 | 26.6 | 28 |
| 70 | 1.13 | 27 | 7.0 | 23.6 | 29 |
| 80 | 0.99 | 28 | 8.0 | 19.1 | 30 |
| 90 | 0.92 | 28 | 9.0 | 15.8 | 29 |
| 100 | 0.85 | 29 | 10.0 | 14.0 | 28 |
| 110 | 0.74 | 30 | |||
| 120 | 0.63 | 30 | |||
| 130 | 0.56 | 29 | |||
| 140 | 0.53 | 28 | |||
| 150 | 0.46 | 27 |
Fill Rates
| 33″ (245/70R19.5) | FILL RATE |
|---|---|
| 50 to 60 PSI | 55 sec. (± 03 sec.) |
| 60 to 80 PSI | 1 min. 41 sec. (± 05 sec.) |
| 80 to 90 PSI | 44 sec. (± 03 sec.) |
| 90 to 110 PSI | 1 min. 38 sec. (± 05 sec.) |
