Description
The VIAIR 280C Dual Pack is ideal for lighter air suspension systems, capable of providing a maximum of 150 PSI and a 30% duty cycle. The kit features two 12-volt Silver on Black 280C air compressors, two 40-amp relays and a 110 PSI cut-on, 145 PSI cut-off heavy-duty pressure switch. Each 280C Dual Performance Value Pack also comes with remote mountable air filter assemblies and mounting hardware.
Specifications
SPECS:
CFM: 2.96 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 30% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 5.0 Gallon
Combined Max. Amp Draw: 38-Amps
Ingress Protection Rating: IP54
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

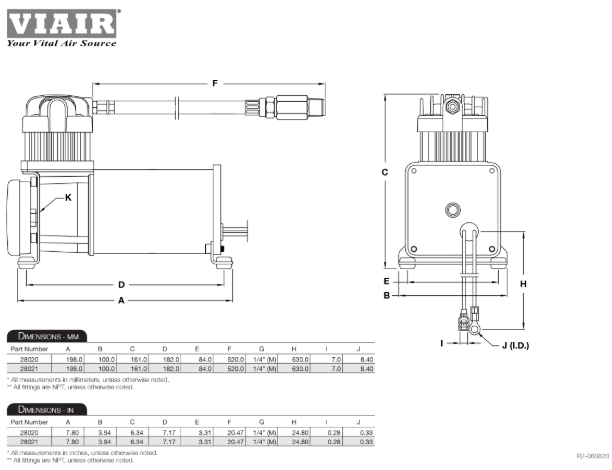

Dimensions: 7.13″L x 3.95″W x 6.35″H (Each Unit)
Net Weight: 17.50 lbs.

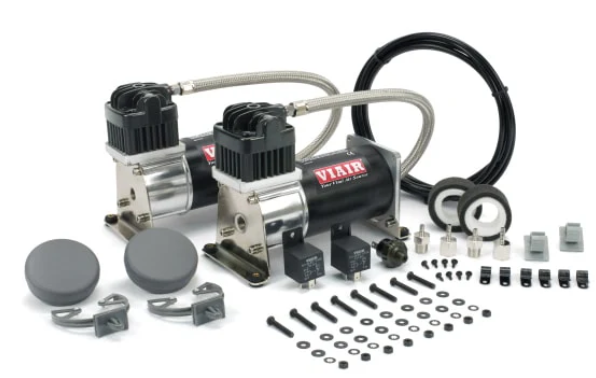

FEATURES:
(2) 280C (Black on Silver) Air Compressors
w/Thermal Overload Protectors
(2) Air Filter Assemblies
(2) Remote Mount Brackets
(2) Sets of Remote Mount Fittings
(2) Sets of Spare Air Filter Elements
(2) Leader Hose Clips
(6) Air Line Clips with Included Hardware
(8) Sets of Nuts, Bolts, Washers and Lock Washers
(2) 40-Amp Relays
(1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off)
(2) Stainless Steel Braided Leader Hoses with Inline Check Valve
Air Line (For Remote Mount Filter Installation)
PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.96 | 21 | 0 | 84.0 | 21 |
| 10 | 2.78 | 24 | 1.0 | 75.5 | 25 |
| 20 | 2.58 | 26 | 2.0 | 69.0 | 28 |
| 30 | 2.38 | 28 | 3.0 | 62.5 | 30 |
| 40 | 2.27 | 29 | 4.0 | 56.5 | 31 |
| 50 | 2.13 | 31 | 5.0 | 51.5 | 32 |
| 60 | 1.97 | 31 | 6.0 | 47.0 | 32 |
| 70 | 1.88 | 32 | 7.0 | 43.5 | 32 |
| 80 | 1.74 | 32 | 8.0 | 39.5 | 32 |
| 90 | 1.62 | 32 | 9.0 | 36.0 | 32 |
| 100 | 1.56 | 32 | 10.0 | 33.5 | 32 |
| 110 | 1.46 | 32 | |||
| 120 | 1.37 | 32 | |||
| 130 | 1.29 | 32 | |||
| 140 | 1.23 | 32 | |||
| 150 | 1.16 | 32 |
Fill Rates
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 1 min. 34 sec. (± 10 sec.) |
| 110 to 145 PSI | 29 sec. (± 05 sec.) |
| 2.5 GALLON TANK | FILL RATE |
| 0 to 145 PSI | 1 min. 44 sec. (± 10 sec.) |
| 110 to 145 PSI | 31 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 145 PSI | 3 min. 54 sec. (± 15 sec.) |
| 110 to 145 PSI | 1 min. 11 sec. (± 10 sec.) |
