VIAIR | 150 PSI Plug-N-Play Air Source Kit (20006)
SELECT OPTIONS
Description
Our 150 PSI On Demand Air System is a Plug N Play solution for any enthusiast who enjoys fast tire inflation and performs multiple pneumatic tasks on the go. Features a 2.0 Gallon tank, pre-wired 145 PSI pressure switch, 1/4″ NPT brass drain cock, 1/4″ NPT ASME Coded and certified safety valve and 1/4″ quick connect coupler pre-installed. The Kit has an onboard ON/OFF switch and can be easily installed in the vehicle using the SAE terminal ring attachments and mounting hardware included.
Specifications
SPECS:
12-Volt
Permanent Magnetic Motor
Duty Cycle: 33% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Amp Draw: 30-Amps
Ingress Protection Rating: IP54
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

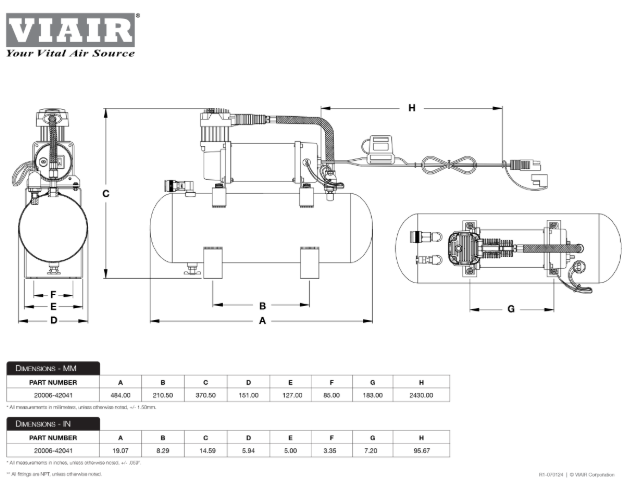

Dimensions: 19″L x 5.9″W x 14.5″H
Net Weight: 22.10 lbs.
Power Cord Length: 8 ft.
FEATURES:
2.0-Gallon Air Tank
2-Pin SAE Connector Attachment with Terminal Rings
40-Amp Inline Fuse Holder
Mounting Hardware
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.31 | 16.2 | 0 | 65.3 | 16.2 |
| 10 | 2.12 | 18.7 | 1.0 | 58.0 | 20.7 |
| 20 | 1.98 | 21.7 | 2.0 | 53.7 | 23.1 |
| 30 | 1.90 | 23.2 | 3.0 | 49.7 | 24.7 |
| 40 | 1.78 | 24.5 | 4.0 | 45.3 | 25.9 |
| 50 | 1.70 | 25.2 | 5.0 | 43.0 | 26.5 |
| 60 | 1.60 | 26 | 6.0 | 39.7 | 26.8 |
| 70 | 1.53 | 26.3 | 7.0 | 33.0 | 26.6 |
| 80 | 1.46 | 26.6 | 8.0 | 30.7 | 26.3 |
| 90 | 1.37 | 26.8 | 9.0 | 27.3 | 25.9 |
| 100 | 1.29 | 26.7 | 10.0 | 25.1 | |
| 110 | 1.21 | 26.5 | |||
| 120 | 1.12 | 26.2 | |||
| 130 | 1.08 | 25.9 | |||
| 140 | 1.01 | 25.5 | |||
| 150 | 0.93 | 24.8 |
Fill Rates
TIRE FILL RATE
| 31″X10.5″ | FILL RATE |
|---|---|
| 0 to 30 PSI | 3 min. 00 sec. (± 10 sec.) |
| 15 to 30 PSI | 1 min. 35 sec. (± 05 sec.) |
| 33″X12.5″ | FILL RATE |
| 0 to 30 PSI | 4 min. 20 sec. (± 10 sec.) |
| 15 to 30 PSI | 2 min. 05 sec. (± 05 sec.) |
| 35″X12.5″ | FILL RATE |
| 0 to 30 PSI | 5 min. 20 sec. (± 15 sec.) |
| 15 to 30 PSI | 2 min. 45 sec. (± 05 sec.) |
TANK FILL RATE
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 150 PSI | 2 min. 15 sec. (± 10 sec.) |
| 110 to 150 PSI | 35 sec. (± 05 sec.) |
