VIAIR | 120 PSI Plug-N-Play Air Source Kit (20004)
SELECT OPTIONS
Description

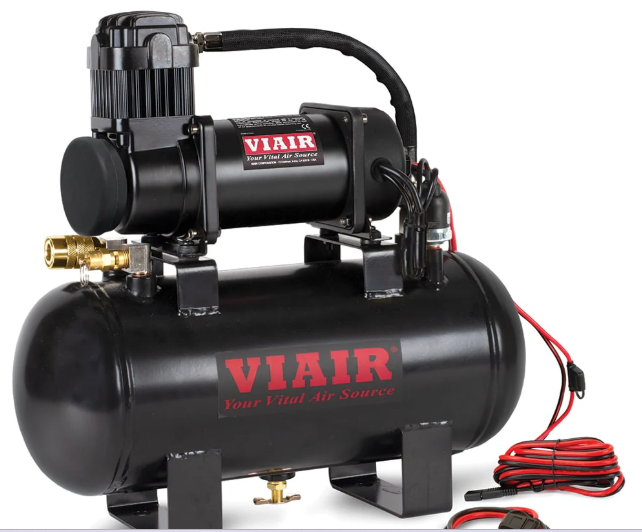

Our 120 PSI On Demand Air System is a Plug N Play solution for any enthusiast who enjoys fast tire inflation and performs multiple pneumatic tasks on the go. Features a 1.5 Gallon tank, pre-wired 120 PSI pressure switch, 1/4″ NPT brass drain cock, 1/4″ NPT ASME Coded and certified safety valve and 1/4″ quick connect coupler pre-installed. The Kit has an onboard ON/OFF switch and can be easily installed in the vehicle using the SAE terminal ring attachments and mounting hardware included.
Specifications
SPECS:
12-Volt
Permanent Magnetic Motor
Duty Cycle: 25% @ 100 PSI
Max. Working Pressure: 120 PSI
Max. Amp Draw: 30-Amps
Ingress Protection Rating: IP54
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

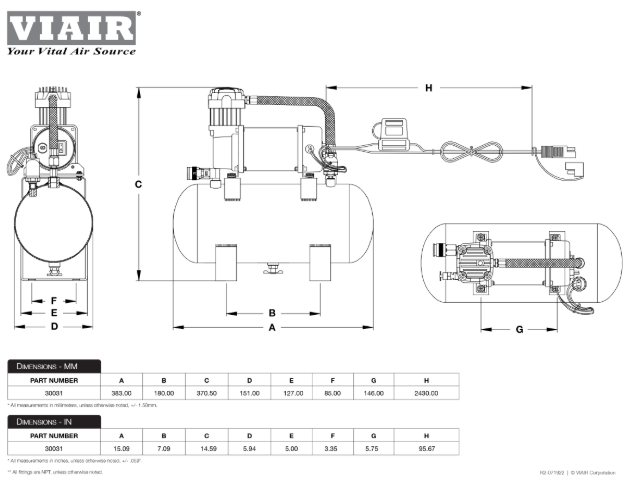

Dimensions: 15.2″L x 5.9″W x 12.8″H
Net Weight: 15.65 lbs.
FEATURES:
1.5-Gallon Air Tank
2-Pin SAE Connector Attachment with Terminal Rings
40-Amp Inline Fuse Holder
Mounting Hardware
Performance
12-Volt Compressor - Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.37 | 15 | 0 | 67.0 | 15 |
| 10 | 2.06 | 18 | 1.0 | 55.3 | 19 |
| 20 | 1.88 | 20 | 2.0 | 51.0 | 22 |
| 30 | 1.78 | 22 | 3.0 | 45.0 | 24 |
| 40 | 1.66 | 23 | 4.0 | 40.7 | 25 |
| 50 | 1.53 | 24 | 5.0 | 38.0 | 26 |
| 60 | 1.44 | 25 | 6.0 | 35.3 | 27 |
| 70 | 1.35 | 26 | 7.0 | 33.0 | 27 |
| 80 | 1.28 | 26 | 8.0 | 30.7 | 27 |
| 90 | 1.22 | 27 | |||
| 100 | 1.17 | 27 | |||
| 110 | 1.12 | 27 | |||
| 120 | 1.06 | 27 |
Fill Rates
TIRE FILL RATE
| 31″X10.5″ | FILL RATE |
|---|---|
| 0 to 30 PSI | 1 min. 57 sec. (±05 Sec.) |
| 15 to 30 PSI | 1 min. 17 sec. (± 05 Sec.) |
| 33″X12.5″ | FILL RATE |
| 0 to 30 PSI | 3 min. 37 sec. (±10 Sec.) |
| 15 to 30 PSI | 2 min. 19 sec. (± 05 Sec.) |
TANK FILL RATE
| 1.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 59 sec. (±05 Sec.) |
| 85 to 105 PSI | 13 sec. (± 03 Sec.) |
| 0 to 120 PSI | 1 min. 12 sec. (±05 Sec.) |
| 90 to 120 PSI | 19 sec. (± 03 Sec.) |
