VIAIR | 100C Compressor

$166.95

Configuration:

Variant

Quantity:

Description

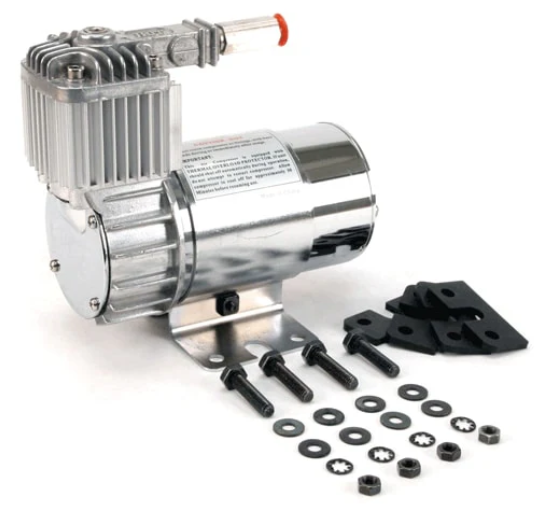

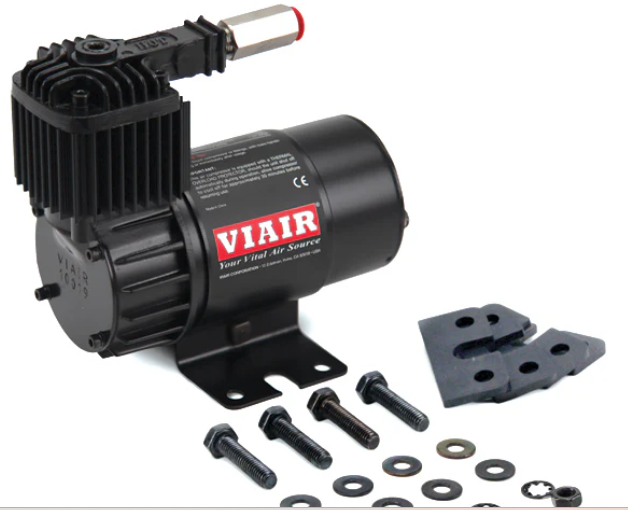

The 100C is our most powerful light duty air compressor. It's designed to fill no larger than a 1 gallon tank, has a max run time of 9 minutes and is offered in 3 different configurations.

See Resources Section below for wiring Diagram Options

Specifications

SPECS:

CFM: 1.27
12-Volt
Permanent Magnetic Motor
Duty Cycle: 15% @ 100 PSI
Max. Working Pressure: 130 PSI
Max. Air Tank Size: 1.0 Gallon
Max. 12V Amp Draw: 16-Amps
Ingress Protection Rating: IP54
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F

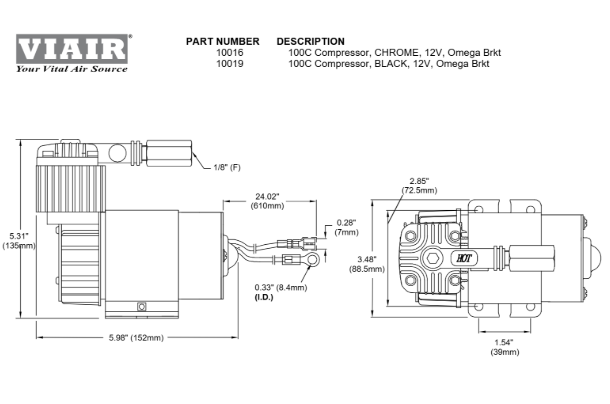

Dimensions: 6.35″L x 3.3″W x 4.9″H
Net Weight: 3.55 lbs.

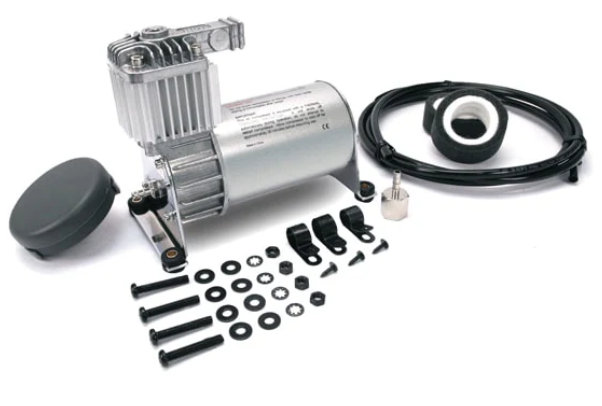

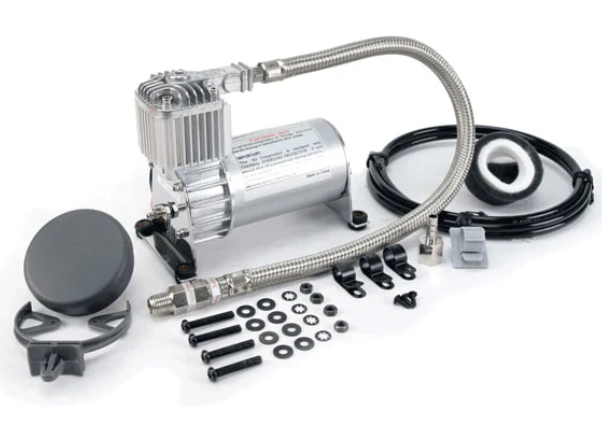

FEATURES:

Thermal Overload Protector
Check Valve
Vibration Isolators
Mounting Hardware
Stainless Steel Braided Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instructions

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

Performance

12-Volt Compressor - Supply Voltage 13.8 Volts

PSI	CFM	A	BAR	LPM	A
0	1.27	9	0	36.0	9
10	0.90	10	1.0	25.0	10
20	0.85	11	2.0	22.5	11
30	0.79	11	3.0	21.0	12
40	0.76	12	4.0	20.0	13
50	0.72	12	5.0	18.3	12
60	0.71	13	6.0	17.0	12
70	0.67	13	7.0	15.0	12
80	0.64	12	8.0	13.7	12
90	0.59	12	9.0	12.3	12
100	0.55	12
110	0.52	12
120	0.48	12
130	0.45	12

Fill Rates

0.5 GALLON TANK	FILL RATE
0 to 105 PSI	50 sec. (± 05 sec.)
85 to 105 PSI	10 sec. (± 03 sec.)
0 to 120 PSI	1 min. 00 sec. (± 05 sec.)
90 to 120 PSI	17 sec. (± 03 sec.)
1.0 GALLON TANK	FILL RATE
0 to 105 PSI	1 min. 40 sec. (± 10 sec.)
85 to 105 PSI	25 sec. (± 05 sec.)
0 to 120 PSI	2 min. 00 sec. (± 10 sec.)
90 to 120 PSI	35 sec. (± 05 sec.)
