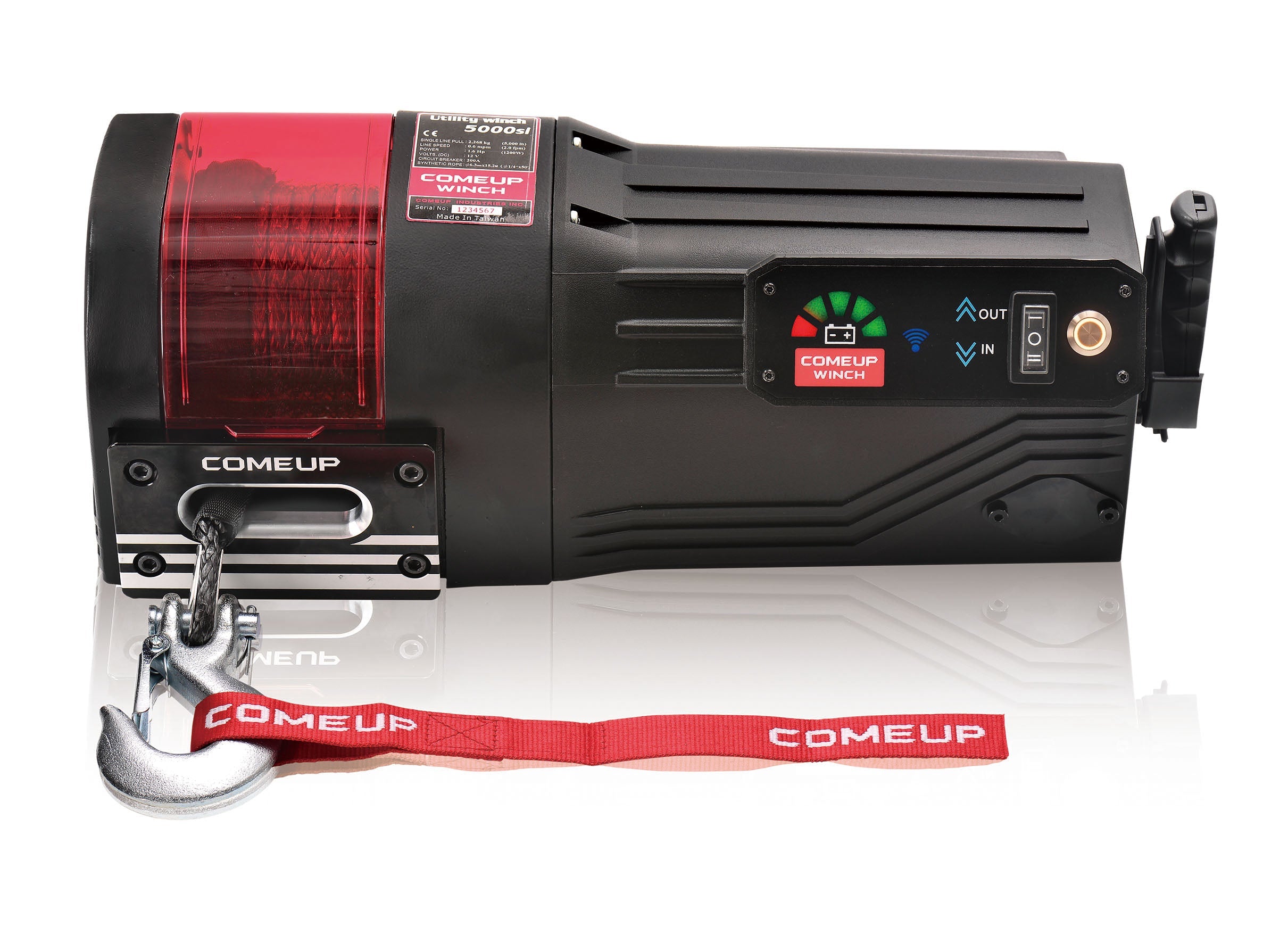

COMEUP WINCH | UW-5000si 12V, Synthetic Rope
Quantity:
SELECT OPTIONS
Quantity:
Part Number 645010
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
|
Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
| No load | 5.5 / 18.0 | 25 |
| 454 / 1,000 | 5.0 / 16.4 | 75 |
| 907 / 2,000 | 3.6 / 11.8 | 140 |
| 1,361 / 3,000 | 2.5 / 8.2 | 210 |
| 1,814 / 4,000 | 1.4 / 4.6 | 310 |
| 2,268 / 5,000 | 1.0 / 3.3 | 380 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
| 1st | 2,268 / 5,000 | 2.4 / 7.9 |
| 2nd | 1,876 / 4,136 | 5.3 / 17.4 |
| 3rd | 1,600 / 3,527 | 8.7 / 28.6 |
| 4th | 1,394 / 3,073 | 12.6 / 41.4 |
| 5th | 1,235 / 2,722 | 15.2 / 50 |
Specifications:
- Rated Line Pull 5,000 lb (2,268 kg) single line
- Motor 1,300 w / 1.74 hp 12V permanent magnet
- Gear Ratio 3-Stage Planetary 170:1
- Clutch (freespooling) Sliding ramping
- Brake Automatic load-holding mechanical brake
- Drum Size 2.1" x 3.3" (54 x 83 mm)
- Control Wireless remote control and On-board control switch
- Rope Type Synthetic Rope SK-75
- Rope Size 1/4" x 50'

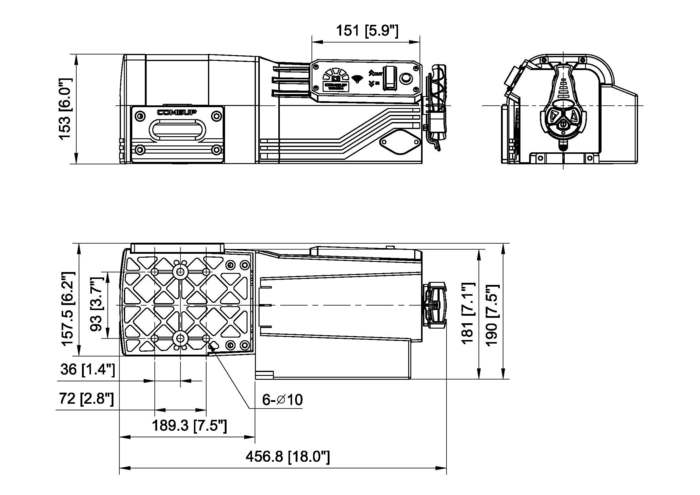

- Mounting Bolt Pattern 3.4" x 3.7" (86 x 93 mm)
- Winch Weight (including rope) 28 lb
- Box Dimensions 18.2" x 10.7" x 7.3" (462 x 271 x 185 mm)
