TUFF STUFF | 270º Degree Xl Awning

Description

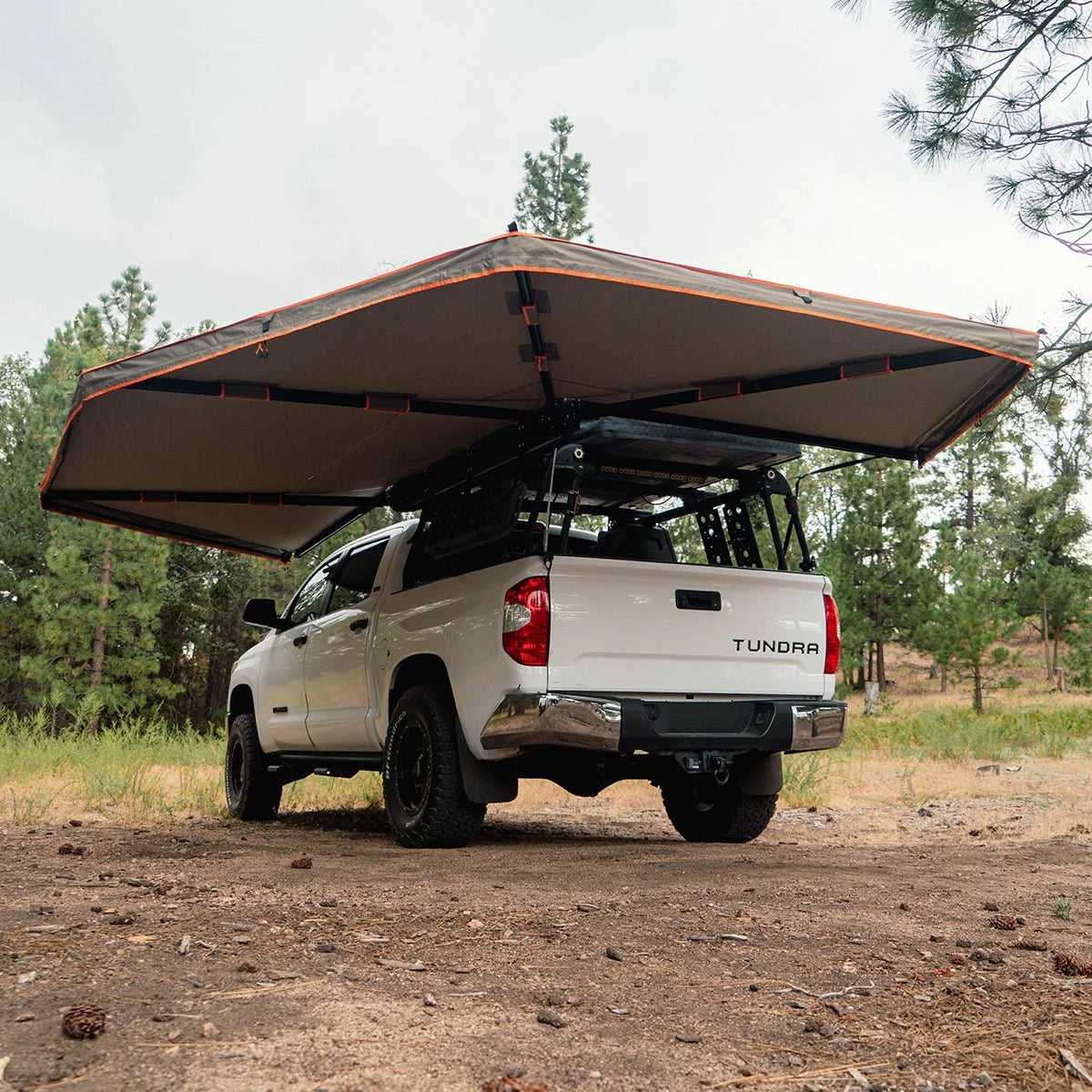

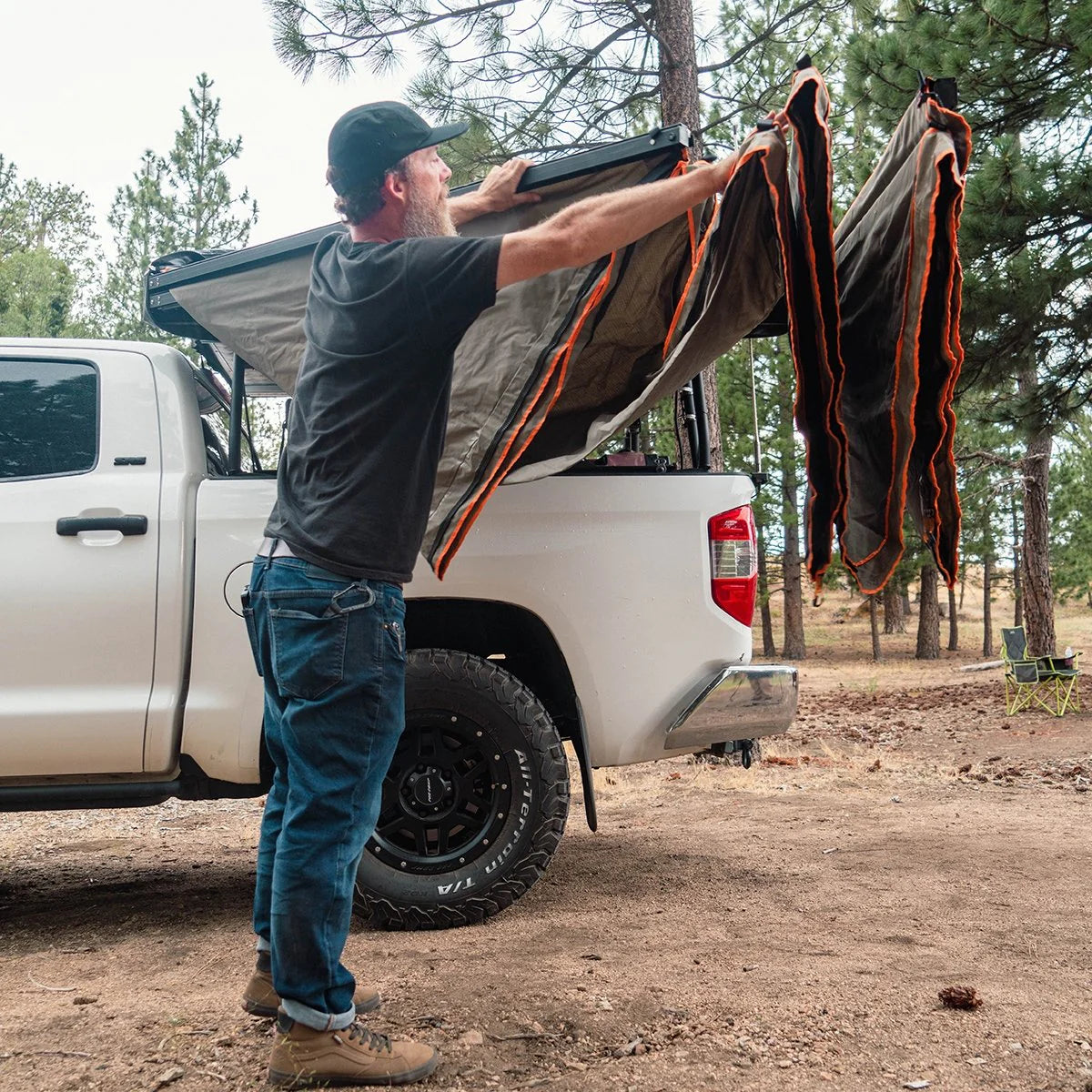

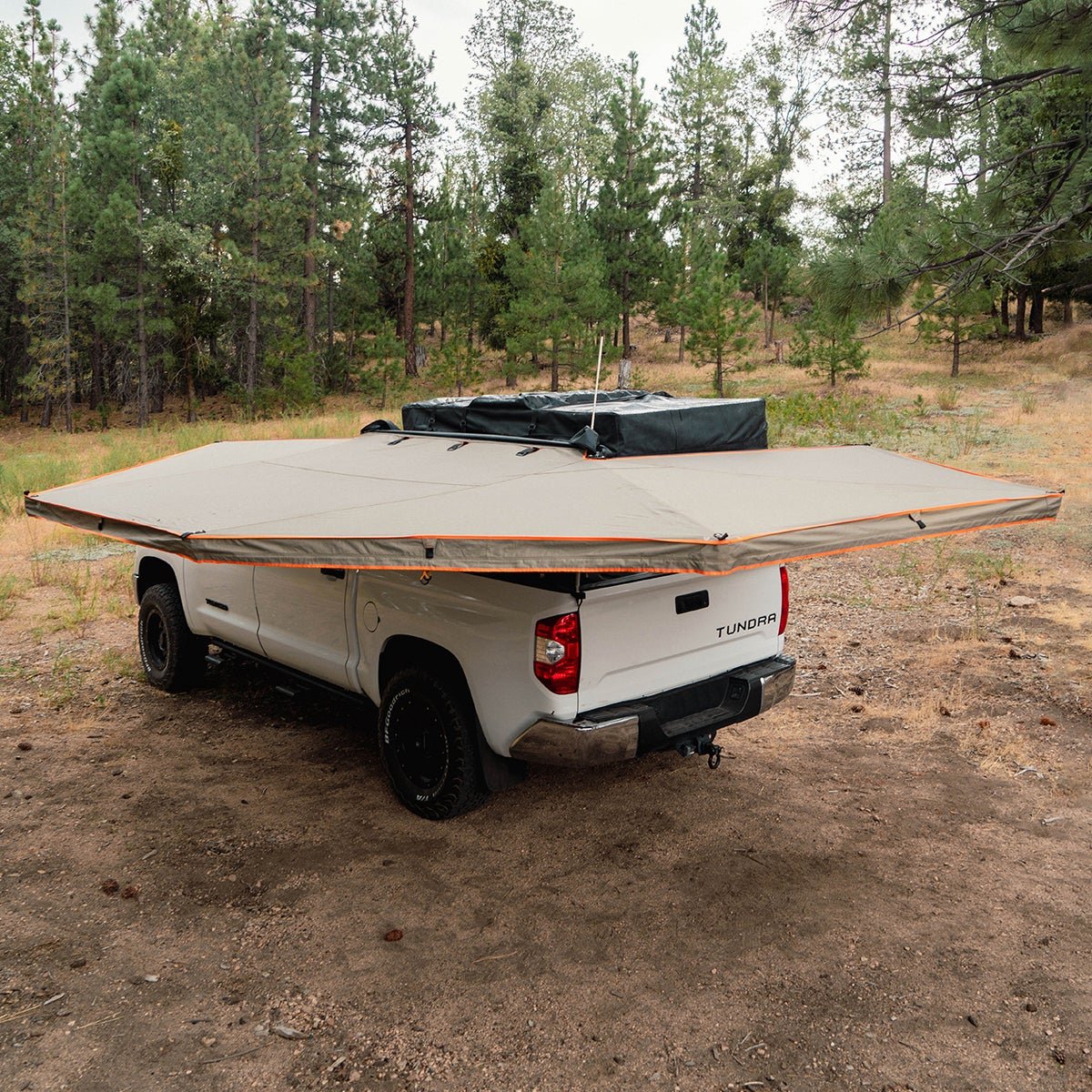

The Tuff Stuff Overland 270º Degree XL Awning provides 129 square feet of serious protection from the elements. Deploy or pack up in as little as 30 seconds and mount on almost any rack or crossbar setup. With 129 square feet of awning, you can protect your family, your neighbor's family, and the park ranger against the next rain, snow, or blazing hot sunny day.

• Provides 129 square feet of shade
• 280GSM poly cotton rip-stop awning fabric
• 2500MM waterproofing and UV protection

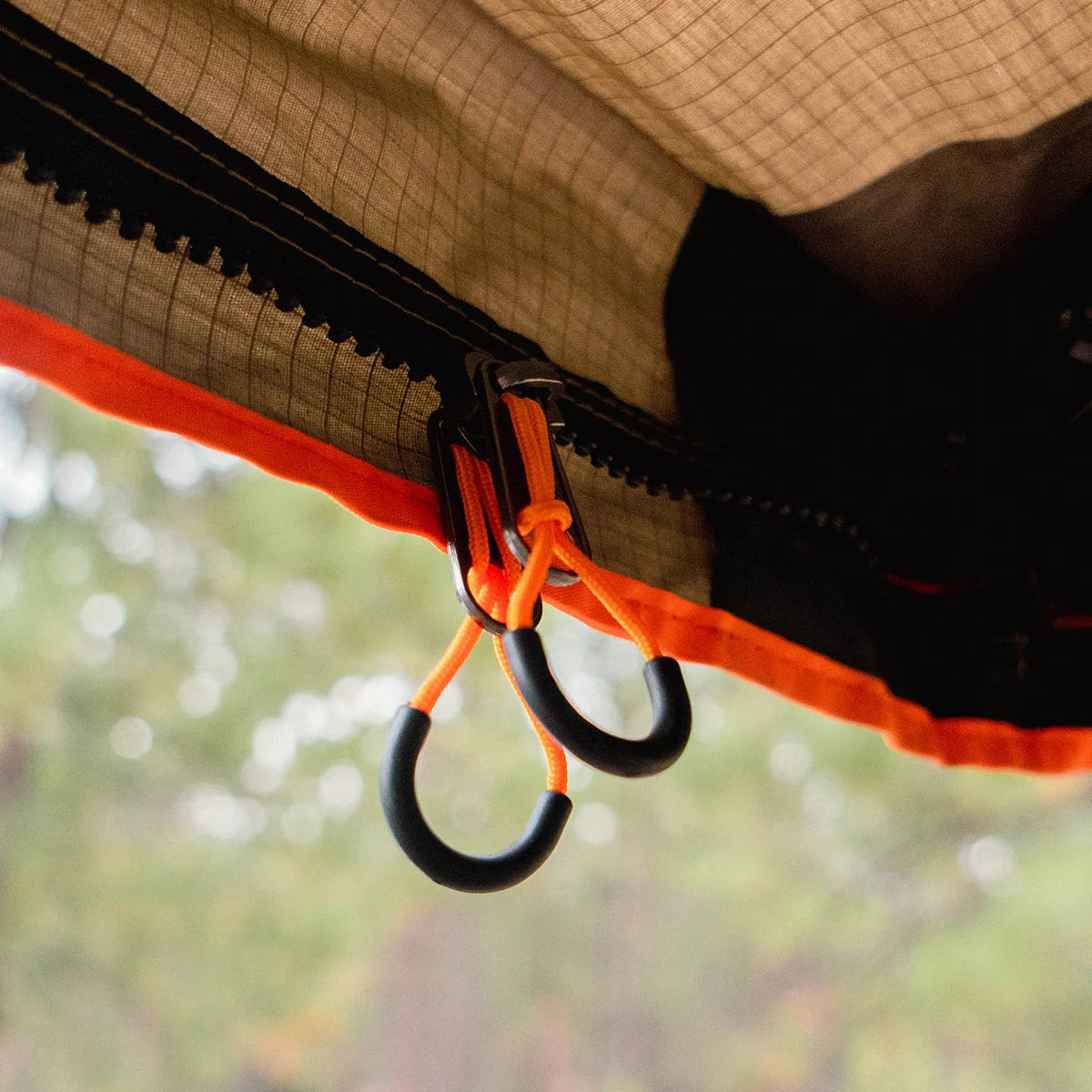

• Weather resistant 1000G PVC Driving Cover with heavy-duty zippers

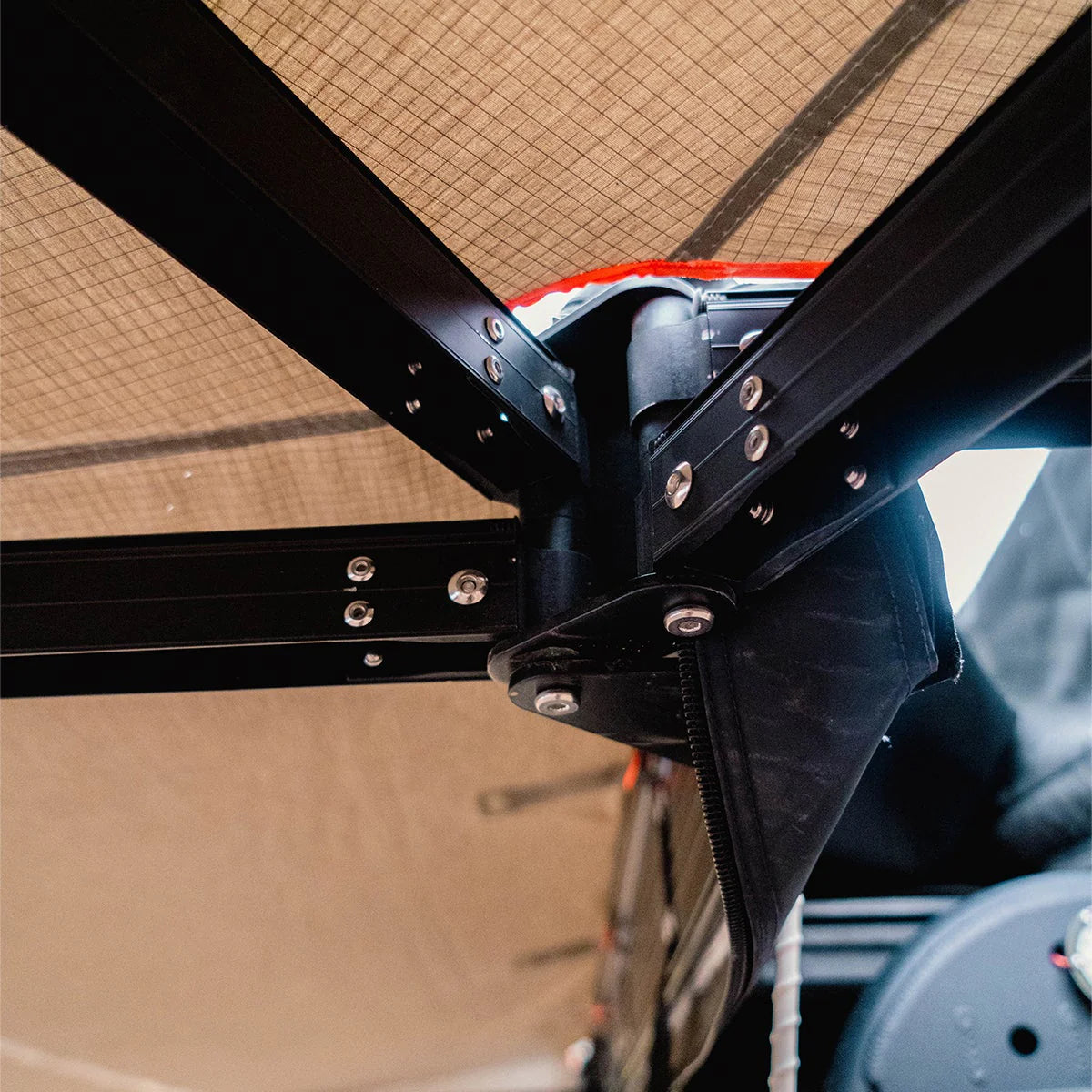

• C-Channel aluminum arms for maximum strength while keeping the awning light

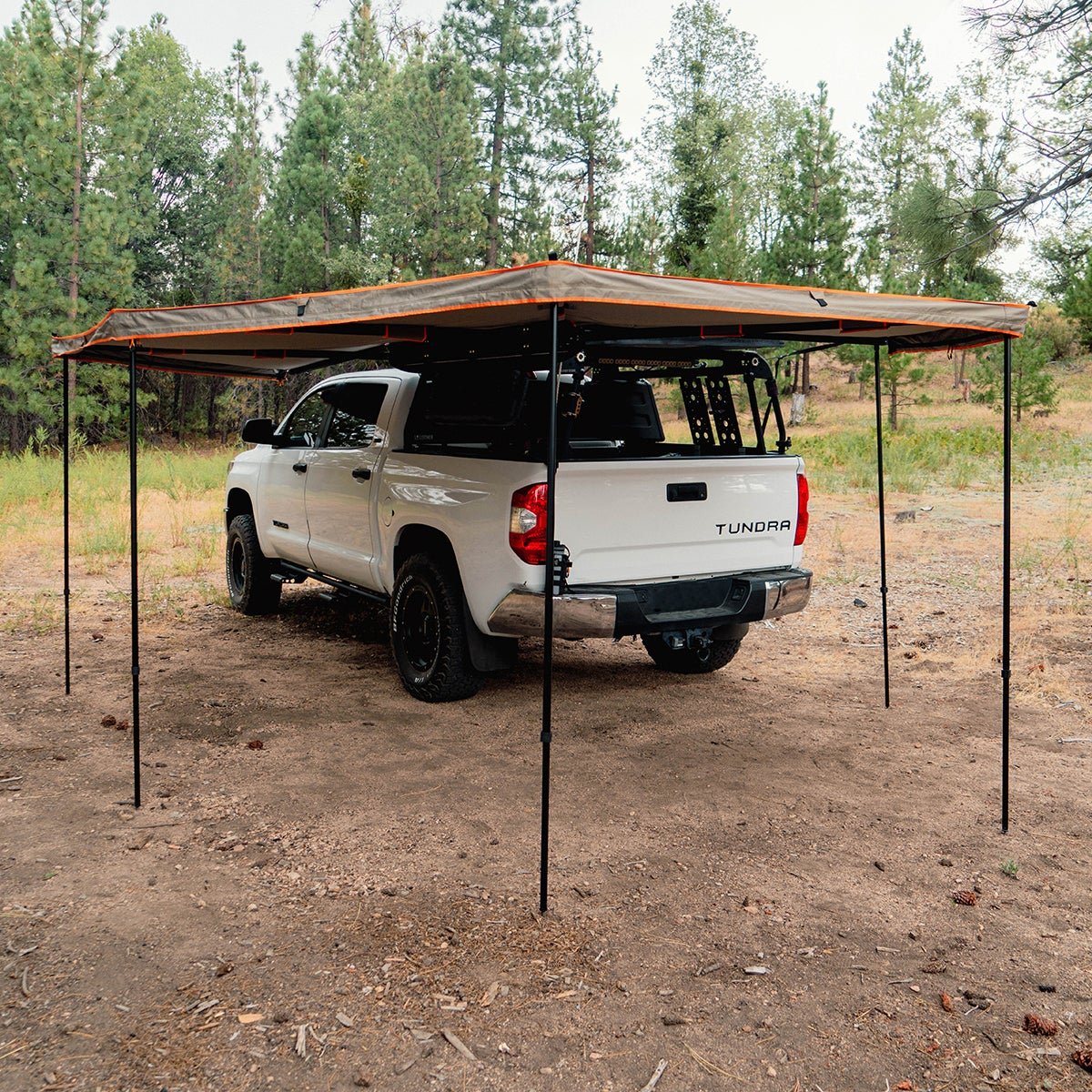

• 6 aluminum telescoping poles that store inside the awning arms
• Various guy line attachment points for structural support and rain run off
• 2 tie-downs to secure each end of the awning
• Guy lines, heavy-duty steel ground stakes, mounting brackets, hardware, and accessory storage bag

Specifications

Awning

• Backing Plate Hardware Slide Distance (vertical distance between backing plate hardware sliding channels): 4.5 inches
• Backing Plate Adjustability (maximum adjustability on backing plate hardware slides, this is the maximum distance between mounting brackets): 73 inches
• Element Rating: If blustery, heavy rain, or snow conditions, close it up. Always best to use caution in windy, snowy, or heavy rain situations.

Awning Box Includes:

• 270 XL Awning: 1 Qty

• Weight: 62 Lbs
• Closed Dimensions L/W/H: 88 x 7 x 6 inches

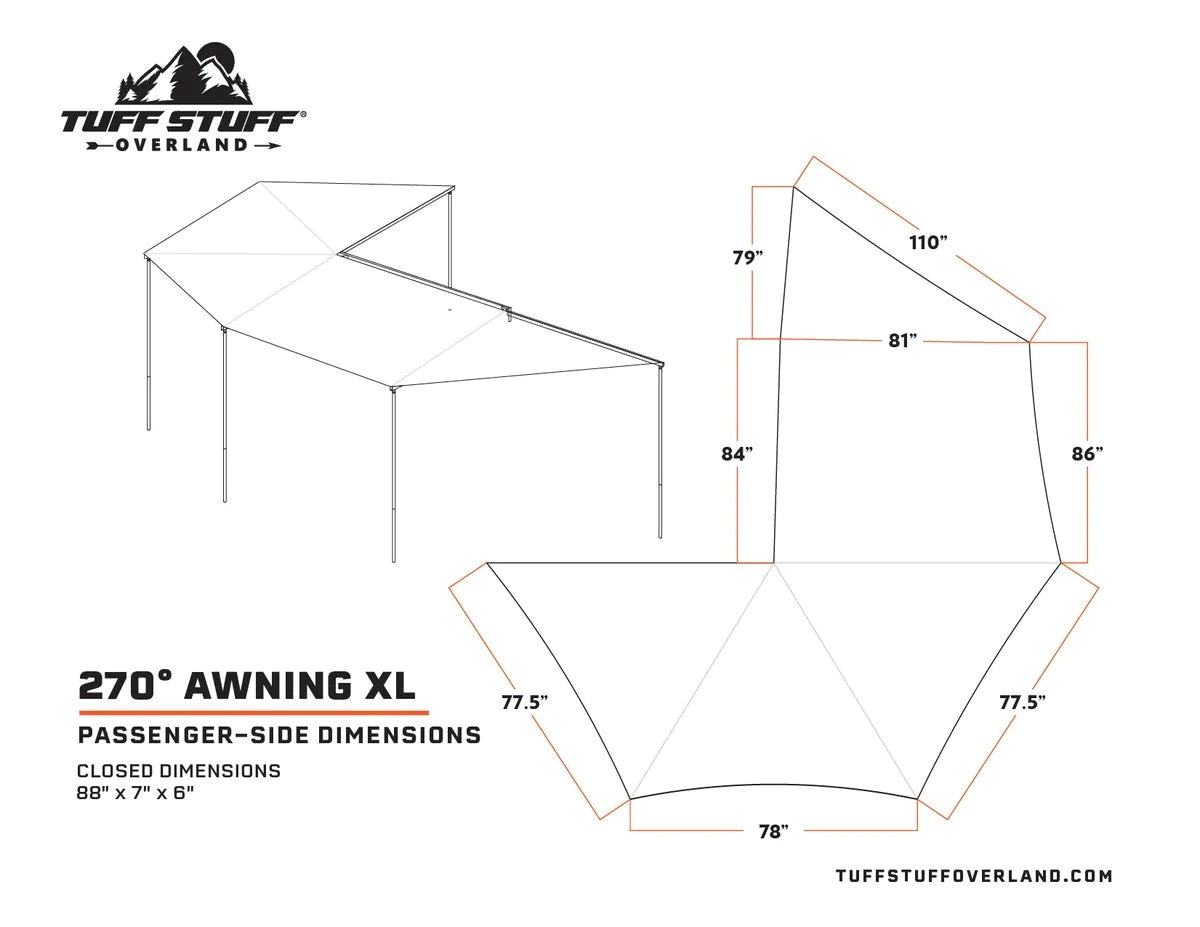

• Open Dimensions L/W/H: 240 x 157 x 102 inches (Maximum height for telescoping poles)
• Heavy-Duty Ground Stakes: 8 Qty

• Guy Lines: 8 Qty
• Tie Downs: 2 Qty
• Storage Bag: 1 Qty

Mounting Hardware Box Includes:

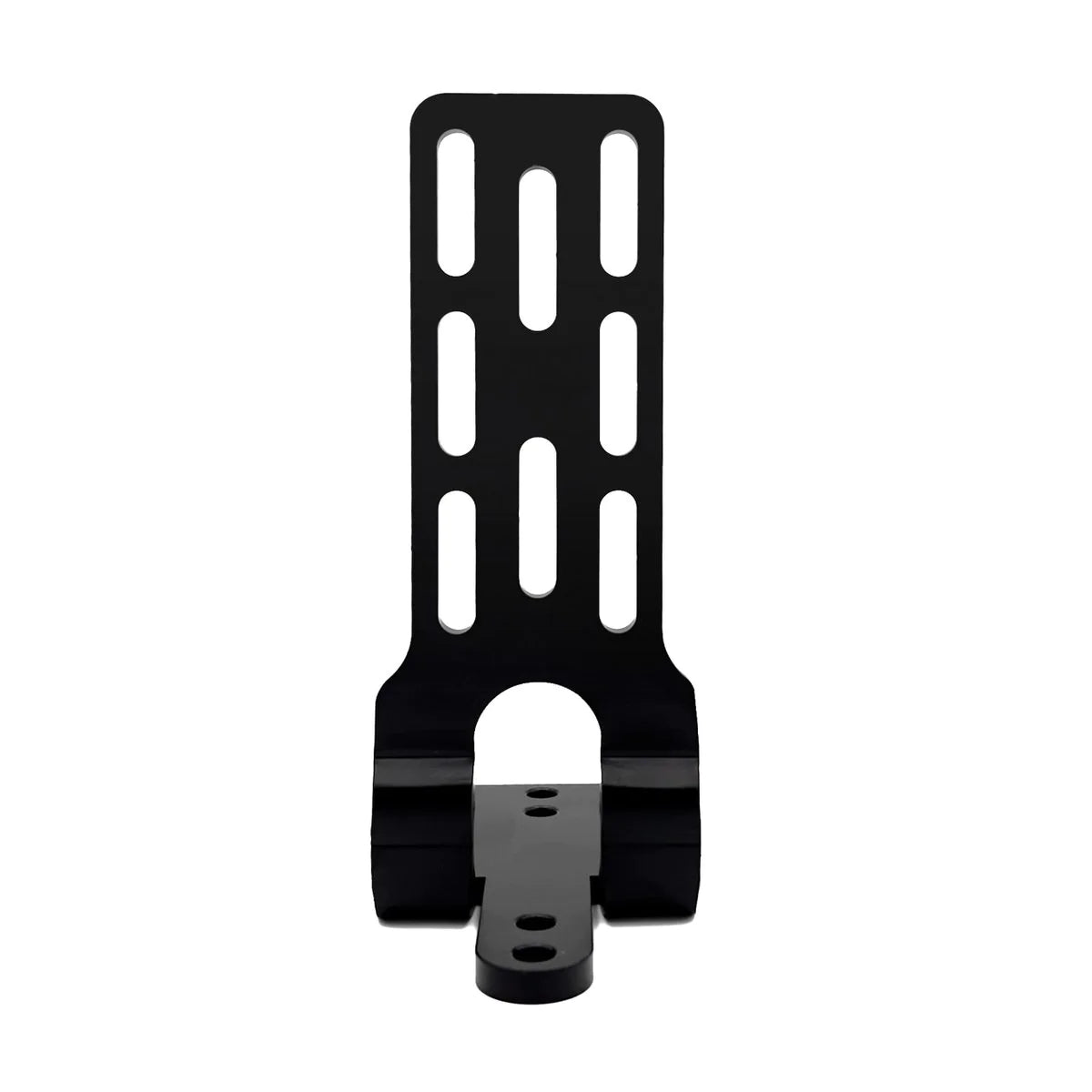

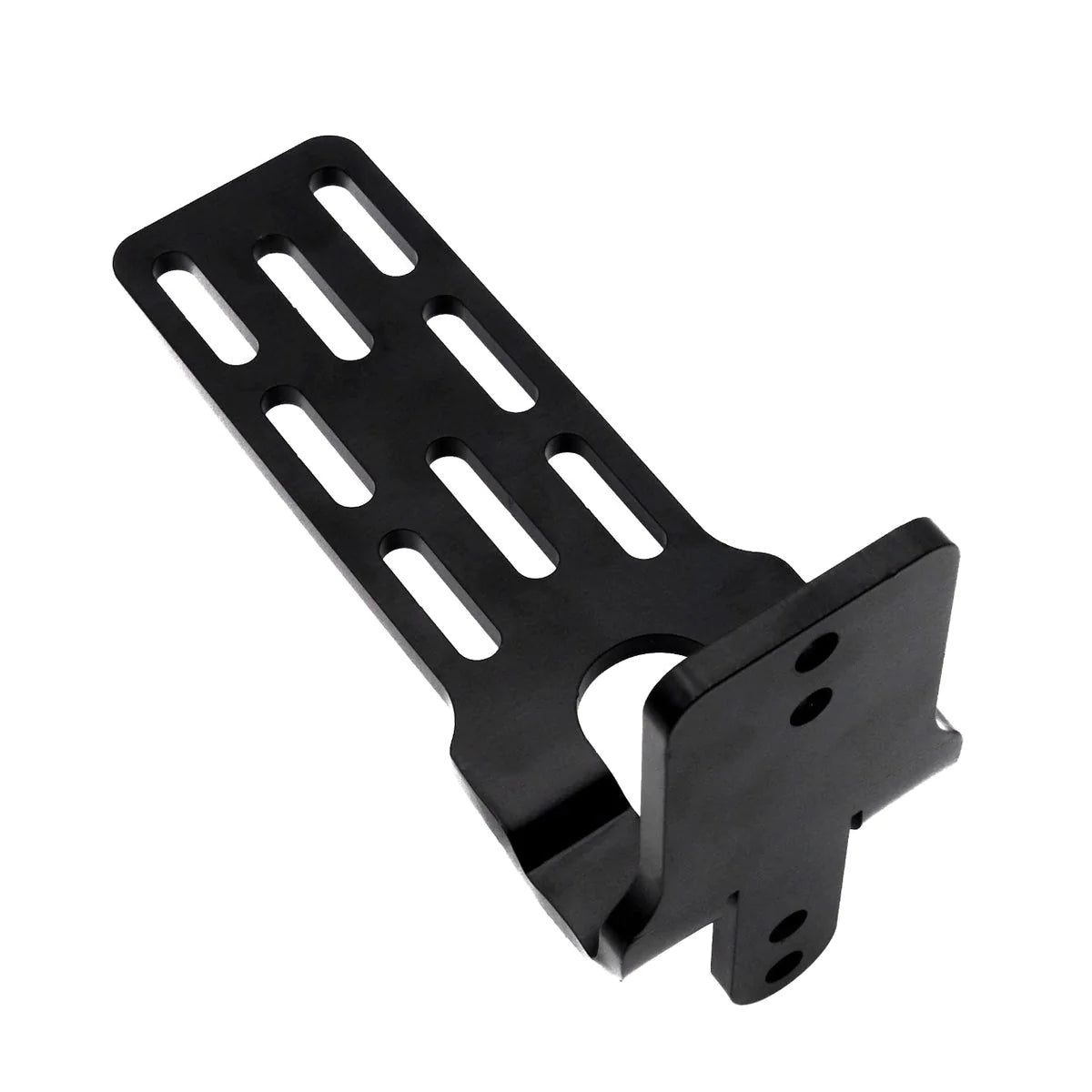

• Heavy-duty Mounting Brackets: 3 Qty
• Weight: 14.6 Lbs
• Ubolts: 6 Qty

• Pegs: 11 Qty
• Spring Washers (M8): 12 Qty
• Bolts (M8-1.25 x 25MM): 6 Qty
• Nylock Nuts (M8 x 25MM): 18 Qty
• Flat Washers (M8 x 25MM): 18 Qty
• Tensioning Straps: 2 Qty
• Guy Lines: 11 Qty
