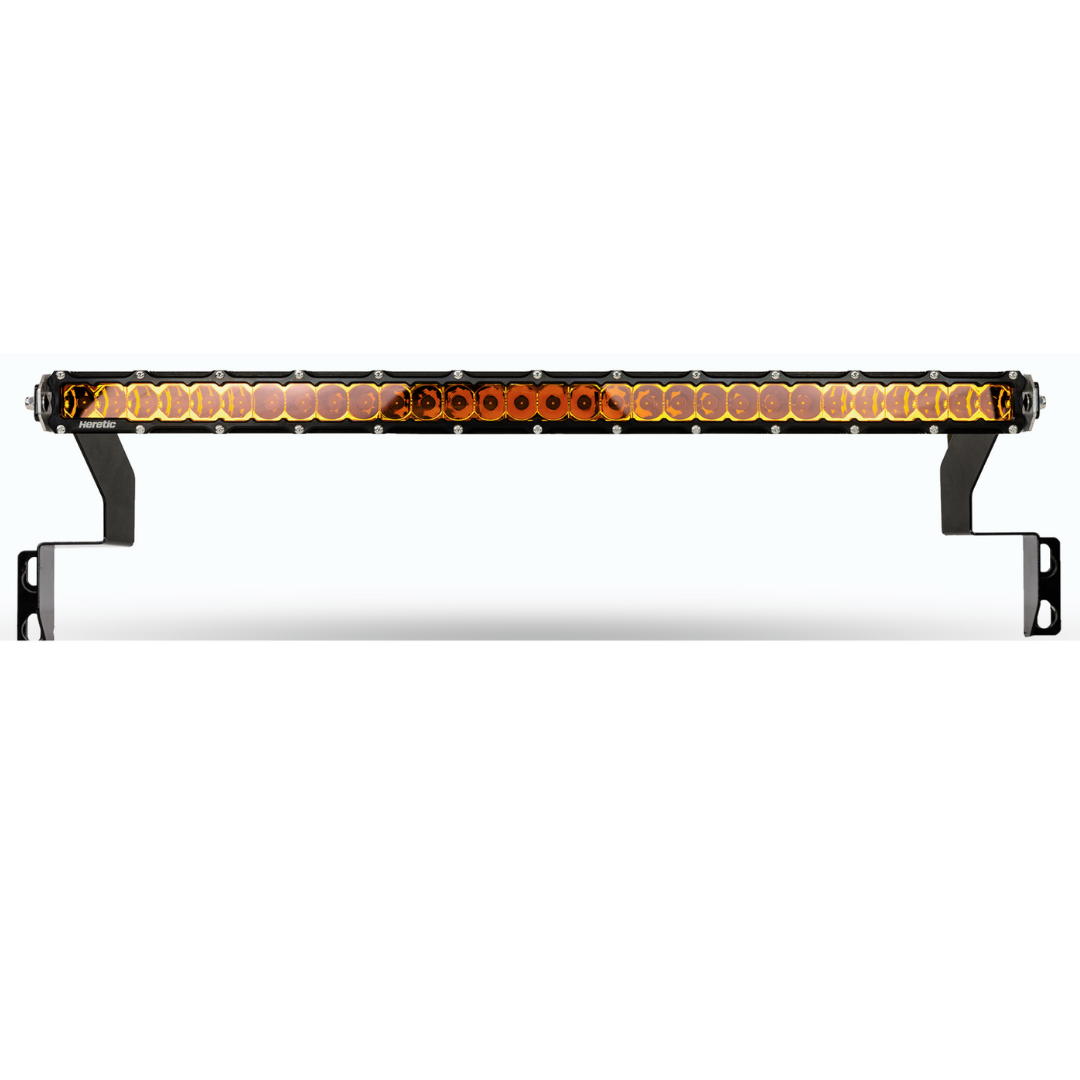

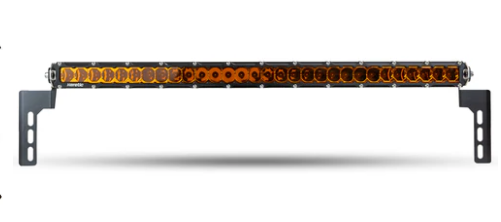

HERETIC STUDIO | Toyota Tundra - Behind The Grille - 30 Inch Light Bar - Amber Lens
Beam Pattern
SELECT OPTIONS
Beam Pattern
Beam Pattern
Overview
Shipping Time: 3-4 Weeks
The 6 series LED 30 inch light bar is the biggest bang for your buck when it comes to light bars. Because of its ideal size, it is typically used in forward-facing applications in aftermarket roof racks, UTV roll cages, and behind the grill of trucks and SUVs. The housing is a CNC machined aircraft-grade aluminum that makes it the most durable and high-quality housing on the market. We use the highest-grade LEDs and circuit boards that allow this light to be as bright as it can be while still controlling heat. Internal reflectors have been designed and optimized to shape and put out the best light possible. Make this light yours. Customize the reflector beam configuration to all spot, all flood, or combo. Chose between a clear lens or get an amber lens for dusty and foggy conditions. Color the bezel to match your rig. Give us a call and we'll make it happen. Designed, manufactured, and assembled in the USA!

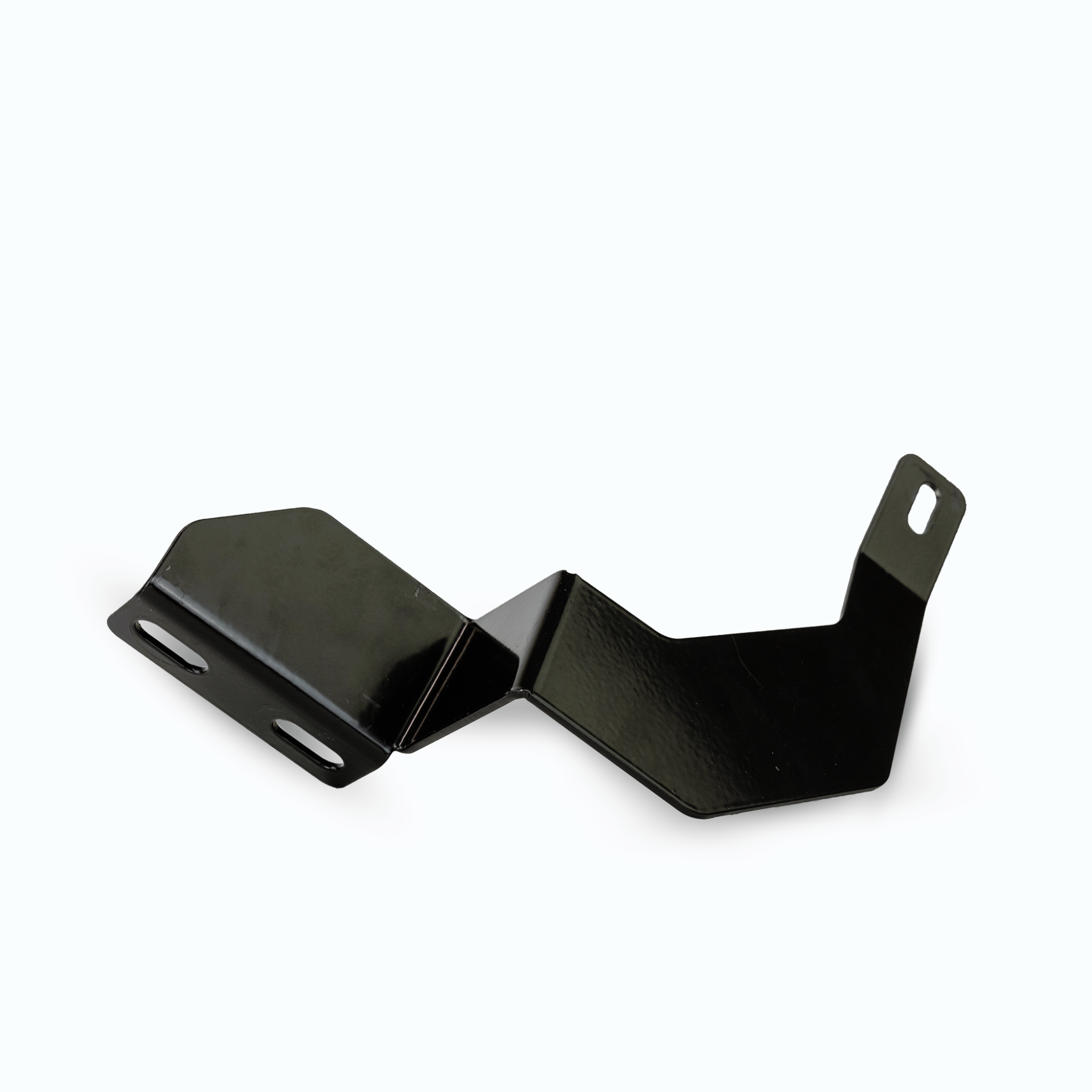

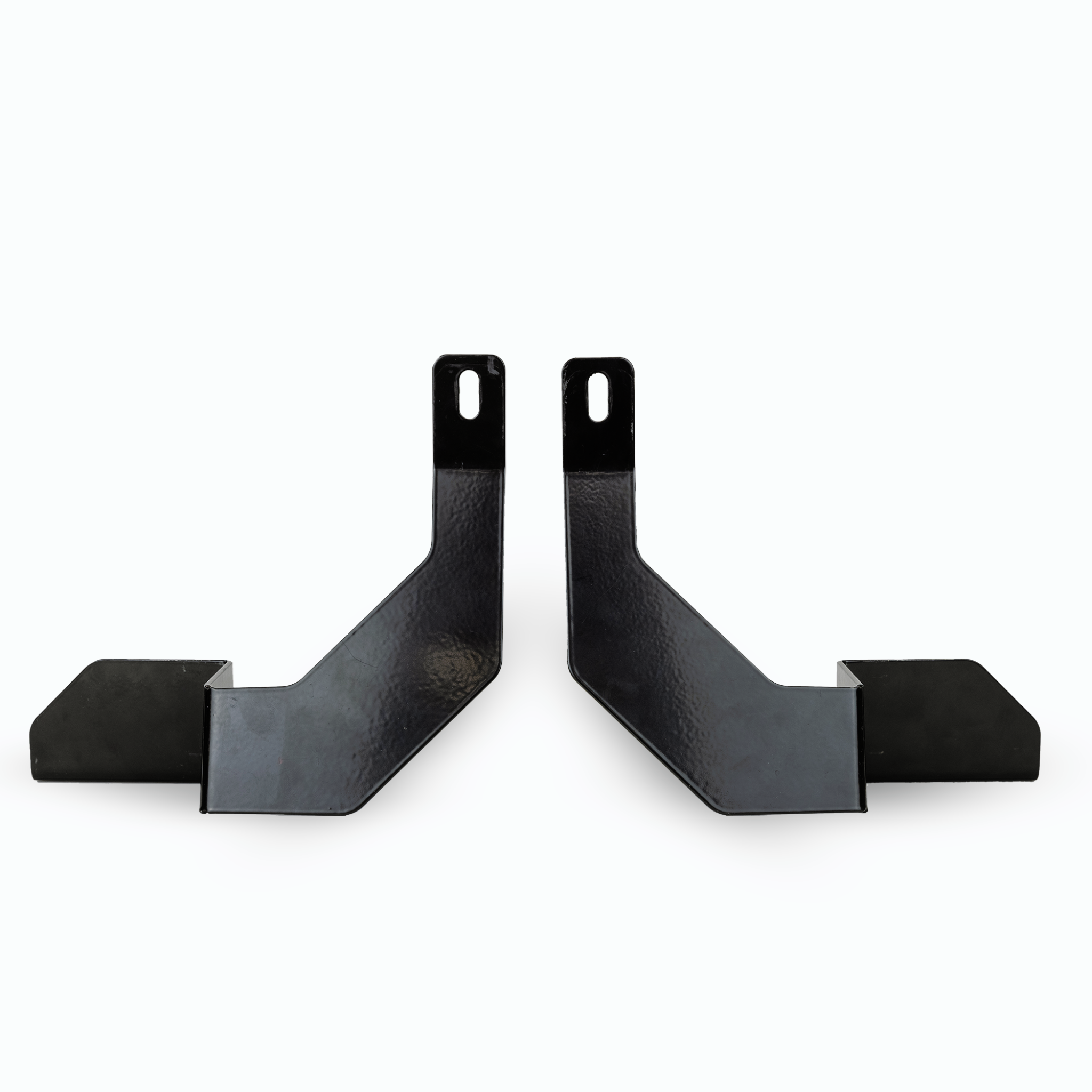

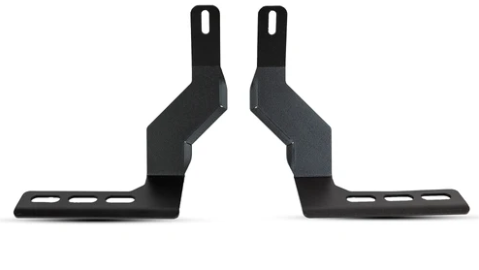

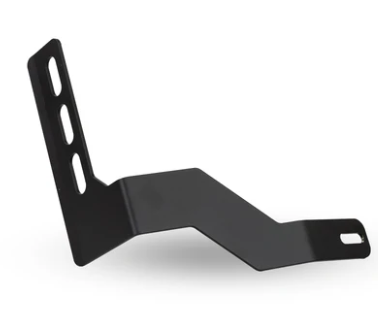

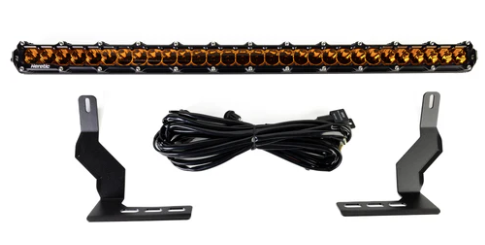

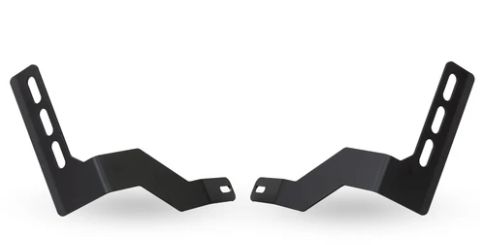

Kit includes all brackets and hardware needed to install.
Specifications
- (30) 6-watt CREE LED
- Full 180 watts of power, driven at 100%
- 21780 lumen
- 6061 billet housing
- 31 5/8 x 2 x 1.5 (bracket to bracket)
- IP68 rated Stainless steel mounts
- Amp draw 17.9 Peak at 13.8V
- Optional amber lens available
- LUX: 6188
- Candella: 618750
Installation Guide
Click to Download:
Toyota Tundra Behind the Grille Installation Guide
