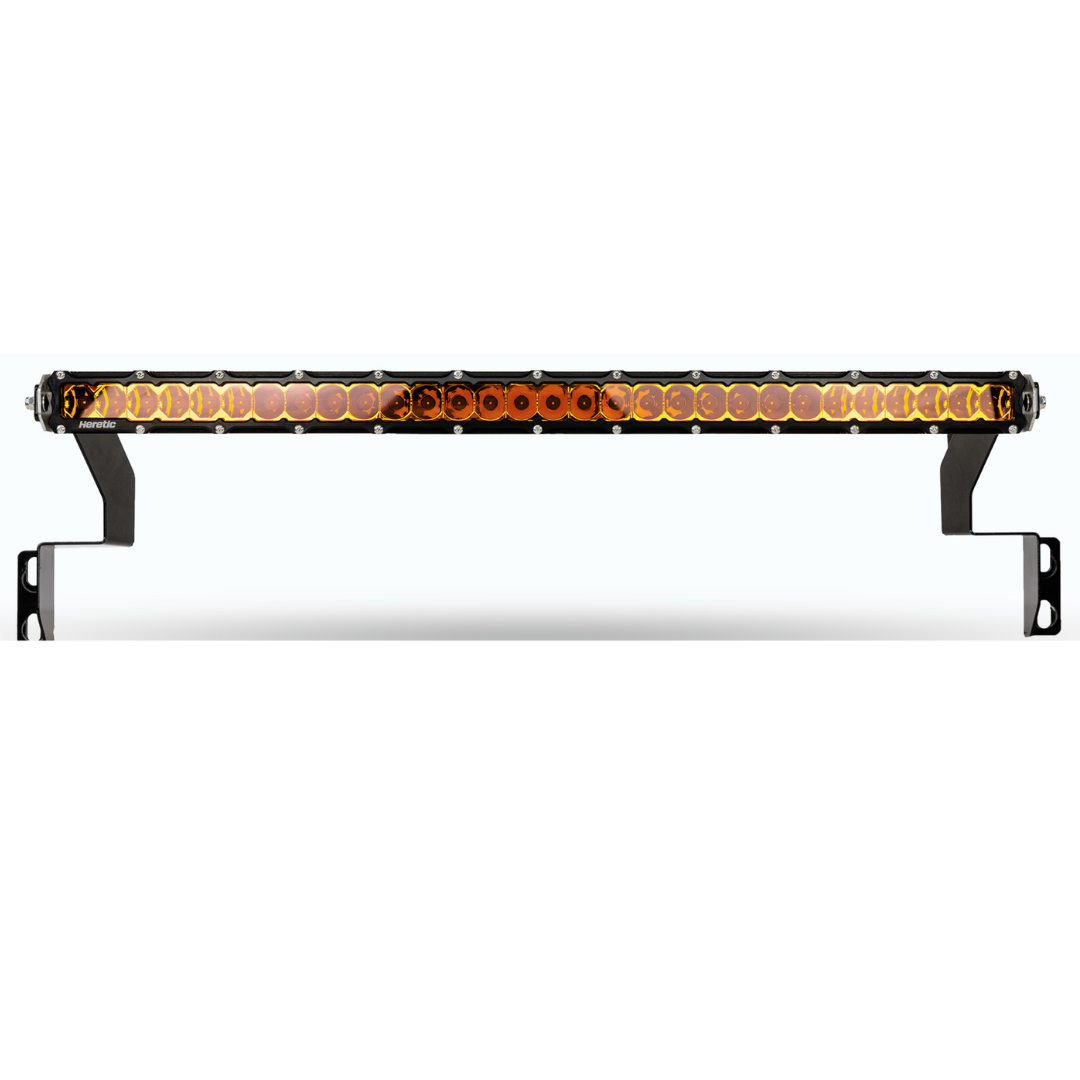

![studio image of a 30 inch behind the grille led light bar in amber](http://evergreenoffroad.com/cdn/shop/products/2_8e1b472c-c121-4d02-8a66-e61f609a07ee.png?v=1697223832&width=1080)

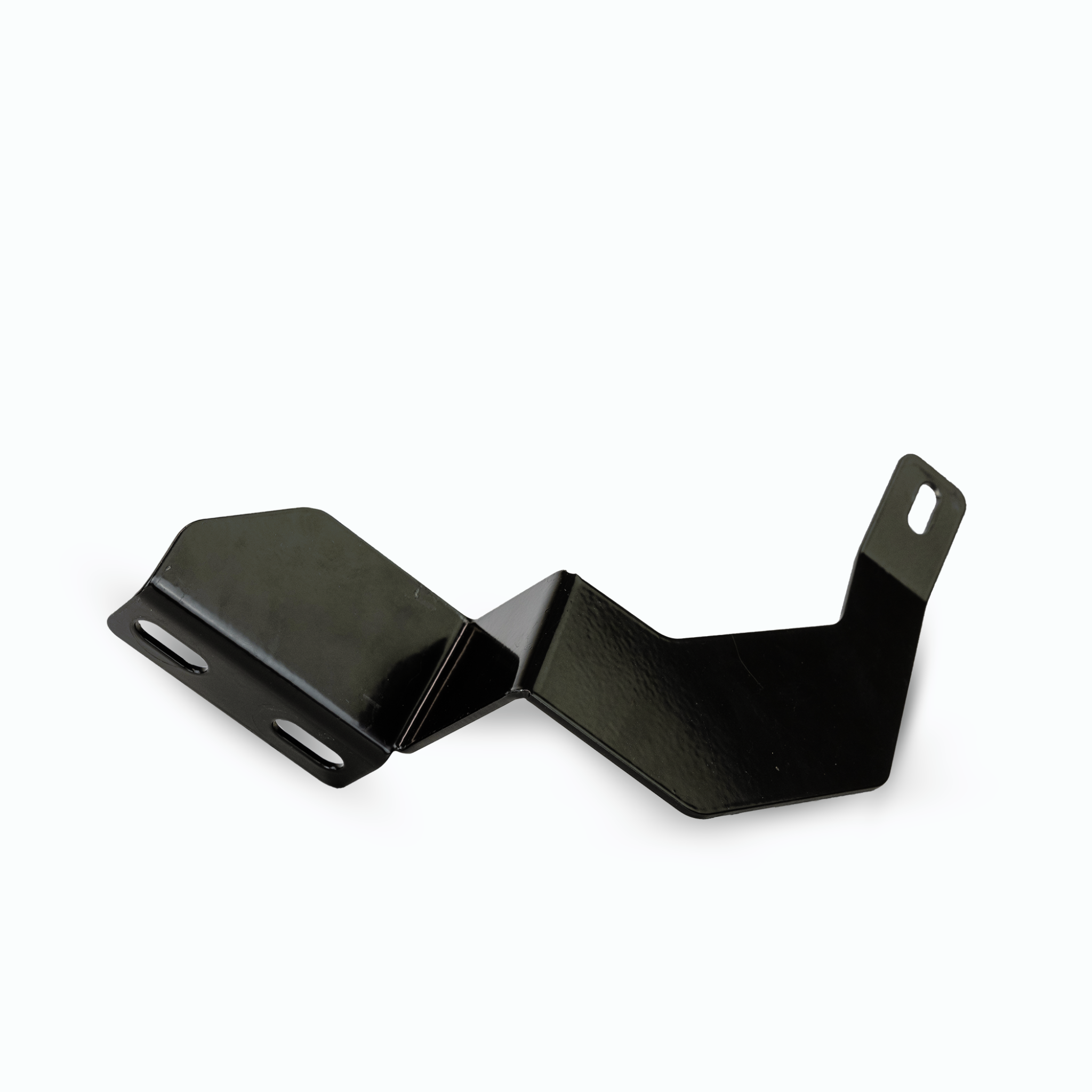

![mounting hardware for a 30 inch behind the grille led light bar](http://evergreenoffroad.com/cdn/shop/products/2_e3f37ed4-7756-4657-a122-f9a89975927d.png?v=1697223832&width=2048)

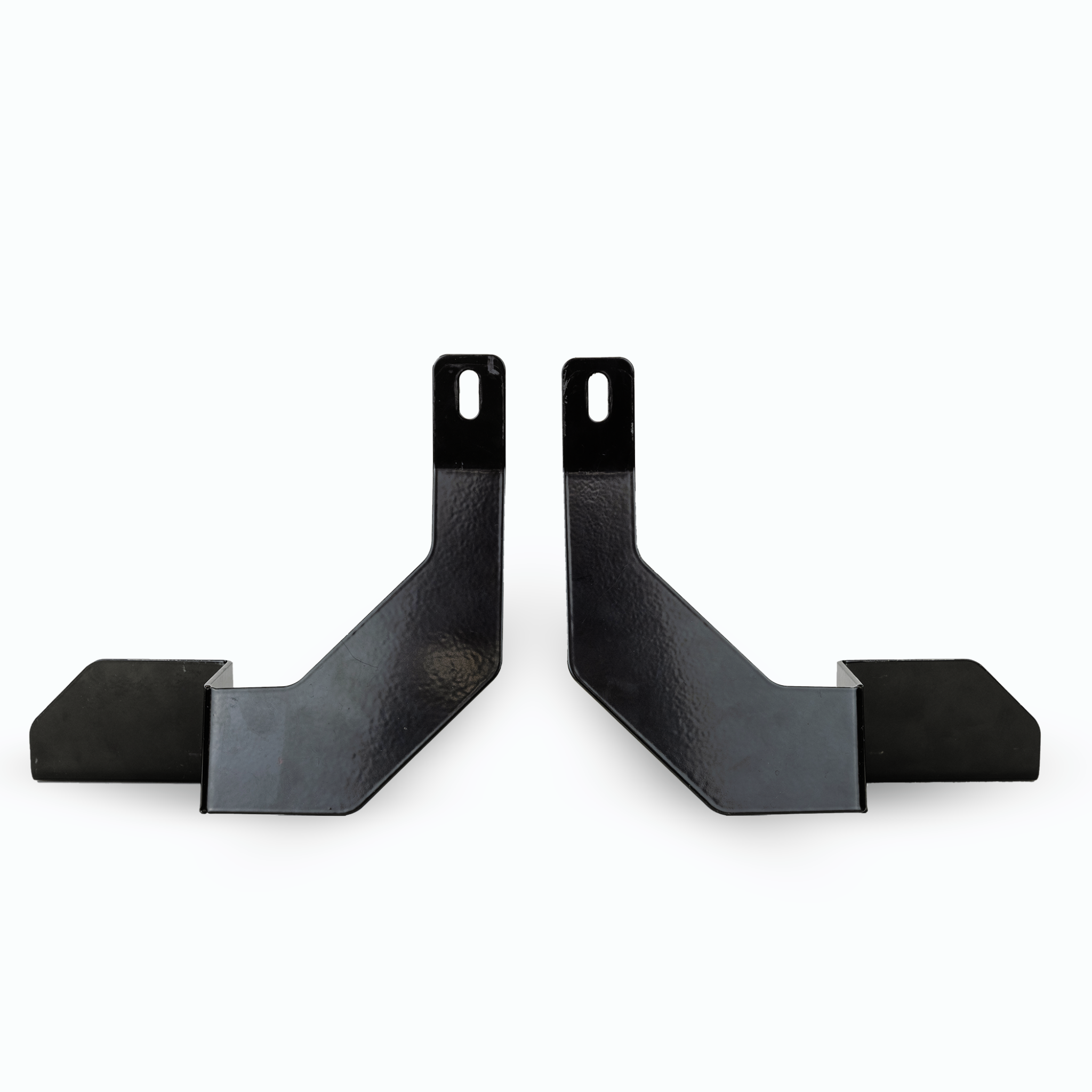

![mounting hardware for a 30 inch behind the grille led light bar](http://evergreenoffroad.com/cdn/shop/products/1_a6e800f1-7400-4273-8ca8-e6fbd13bb13e.png?v=1697223832&width=2048)

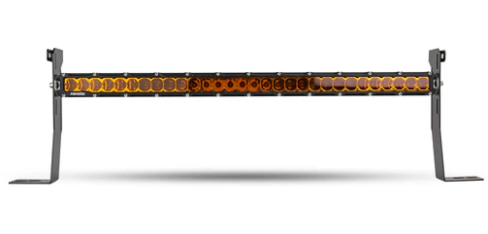

HERETIC STUDIO | Toyota 4Runner - Behind The Grille - 30 Inch Light Bar - Amber Lens
SELECT OPTIONS
Overview
Shipping Time: 3-4 Weeks
The Heretic Behind The Grille 30" LED light bar - Amber Lens is the best option for your Toyota 4Runner grille. This high performance 6-series amber LED light bar is designed and manufactured in the USA, housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. This light bar is optimized for visibility in foggy, dusty and snowy conditions. With brackets included this becomes a 32" Behind the Grille LED Light Bar.
Features
- USA Patented 6061 CNC Aluminum Grade Billet Housing
- (30) 6-watt CREE LED
- IP68 rated Stainless Steel Mounts
- Designed, Manufactured, Assembled, Supported, and Shipped in Centerville,Utah
- Customize Your Beam Pattern: Combo, Spot, or Flood
- Customize Your Bezel - Contact Heretic Studio

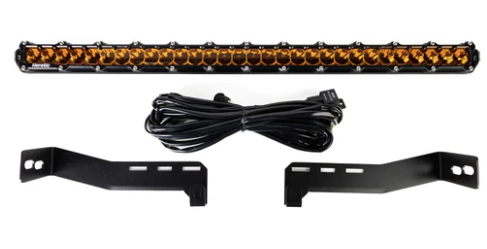

- Wire Harness And Brackets Included In Kit
Vehicle Trim Compatibility
Toyota 4Runner (2010-2021)
Details/Specs
30" LED Light Bar
Shipping Weight: 5lbs
Type: 30” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Roof, Bumper, Grille, Rack
Light Color: White
Lens Color: Amber
Wattage: 180W
Amp Draw at 13.8V: 17.9A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 31” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 32” x D 1.5” x H “2.4
Lumens: 21780 lm
Lux At 10m:
- Spot: 6188 lx
- Flood: 1316 lx
- Combo: 4239 lx
Candela:
- Spot: 618750 cd
- Flood: 131625 cd
- Combo: 423900 cd
Beam Distance:
- Spot: 1573 m
- Flood: 726 m
- Combo: 1302 m
DOT Compliant: No
Prop 65: No
SAE/ECE: No
