TOTAL CHAOS FABRICATION | Tundra 2nd Gen (2007 - 2021) Long Travel Suspension Kit With Coilovers +2.5 Inch (07-LT-K1A)

Description

Wider suspension increases the amount of wheel travel you cycle and allows you to maintain traction in rougher terrain. A wider track width will improve the vehicles cornering stability on and off-road.

Long travel systems offer better ride quality than stock length kits while adding component strength to any off-road adventure. Maximize off road performance and tuneability. Customize your ride quality for added vehicle weight and specific terrain with dual shock capability.

Features

• Chromoly upper and lower control arms are extended to increase the track width 2.5" per side and bolt to the factory control arm mounting locations.

• 14.5" of wheel travel with 4WD.

• Upper and lower ball joints are upgraded to 1" uniballs for additional strength and wheel travel.

• TOTAL CHAOS 1" I.D. uniballs feature a heat treated stainless steel ball & race for superior corrosion resistance and component strength. A military grade PTFE woven fabric liner surrounds the uniball which helps prevent noise.

• Upper and lower control arms utilize urethane bushings which greatly reduce bushing deflection compared to stock rubber bushings. Providing a tighter off road feel and trail handling. All pivots include zerk fittings for easy lubrication maintenance.

• Billet CNC machined uniball cups integrate into the lower arm providing increased LCA strength and factory turning radius.

• Lower arms are internally gusseted, fully boxed and include dual shock tabs.

• TC boxed lower arms feature sway bar mounting tabs to retain the factory sway bar for better high speed cornering stability. TC sway bar link #87250 is required to retain the sway bar system- sold separately.

• Secondary shock tabs are included to allow a TC specific external bypass shock to be installed for additional dampening control. Maximize tunability and performance. Customize your ride quality for added vehicle weight and specific terrain.

• TC specific long travel coil over shocks bolt to the factory coil bucket location.

• Adjustable limit strap clevises are supplied to properly limit suspension droop wheel travel and allow necessary adjustments during the life of the limit strap. Straps will stretch over time.

• Kit includes: DOT approved stainless steel braided brake lines that do not expand. TC custom 17-4 stainless hi-misalignment spacers. Grade 8 mounting hardware.

• TC custom 4WD extended axles are machined from 4340 and insert into the factory inner and outer CV joints to retain 4WD - SOLD SEPARATELY.

• Fiberglass fenders are required.

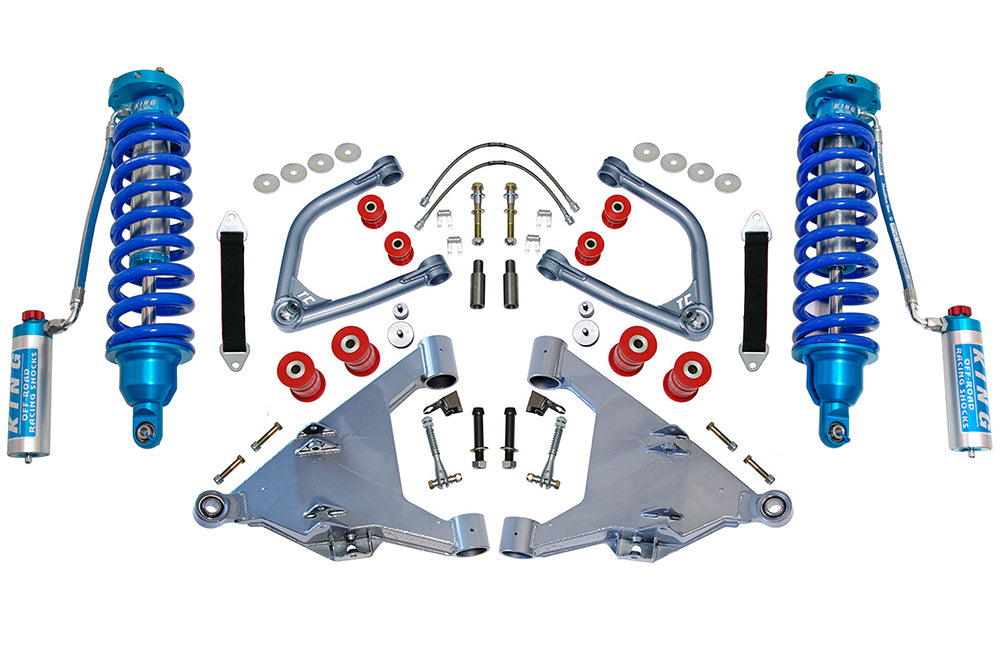

Parts Included:

• Does Not Include Tc Custom 4wd Extended Axles To Retain 4wd - Sold Separately.

• 2nd Gen Tundra +2.5" Long Travel Kit Pn: 87000-B - Qty: (1)

• King 2.5" Front Long Travel Coilovers W/ Compression Adjusters - Remote Reservoir W/ 700lb Coils (Pair) Pn: Tc5143-03-A-700 - Qty: 1
