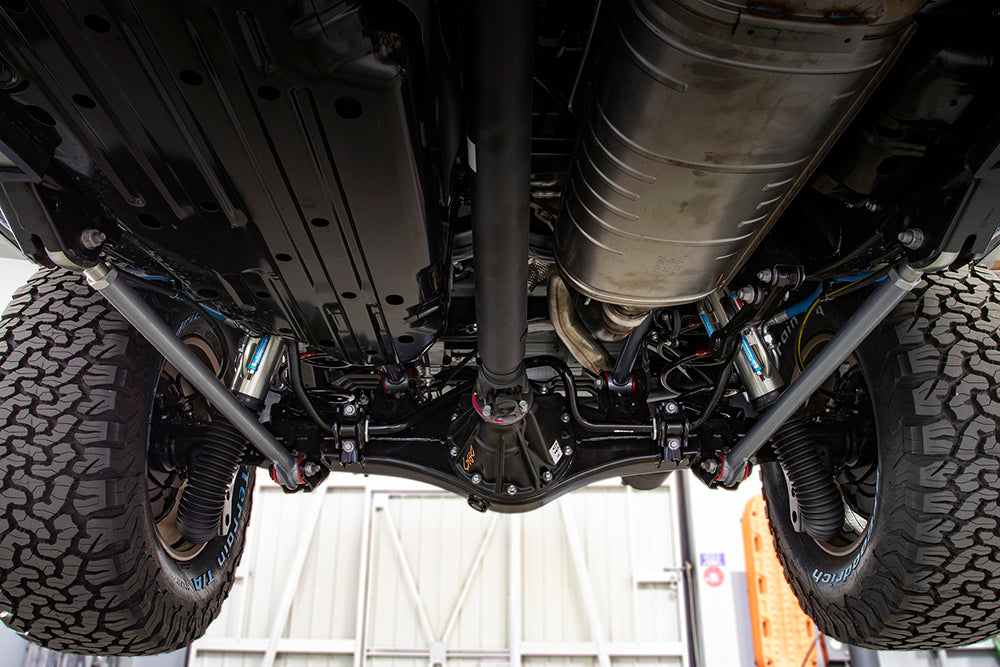

TOTAL CHAOS FABRICATION | Land Cruiser 200 Series (2008 - 2021) Chromoly Adjustable Rear Links (87450)

Description

Chromoly Adjustable Rear Links

Features

- 100% bolt on.

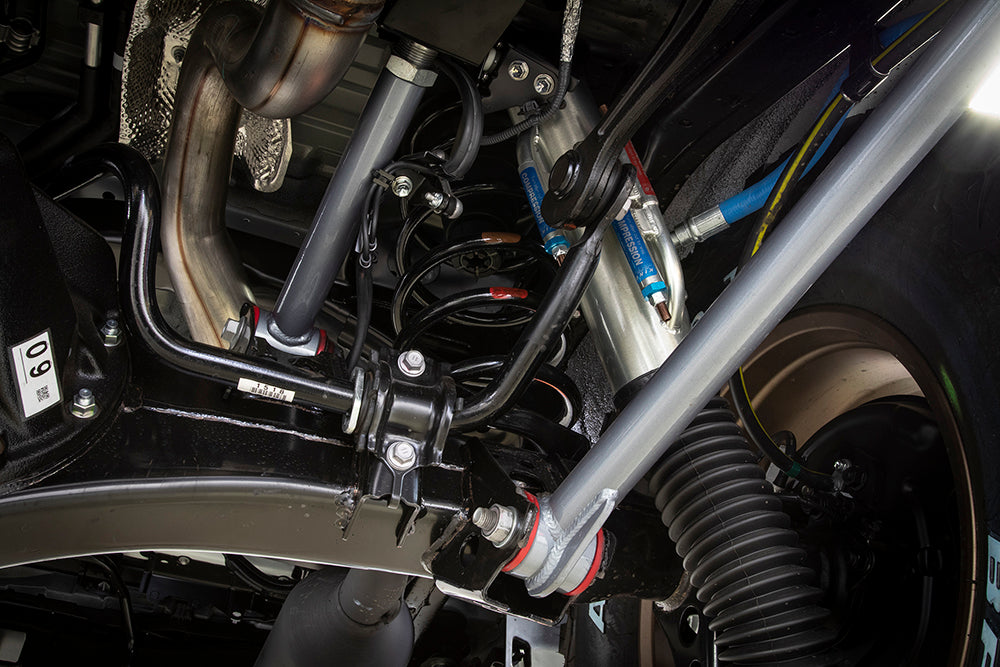

- Upper and lower links are constructed from 1 1/2".188 wall 4130 chromoly tubing for maximum strength and feature massive 1.250" chromoly heim joints.

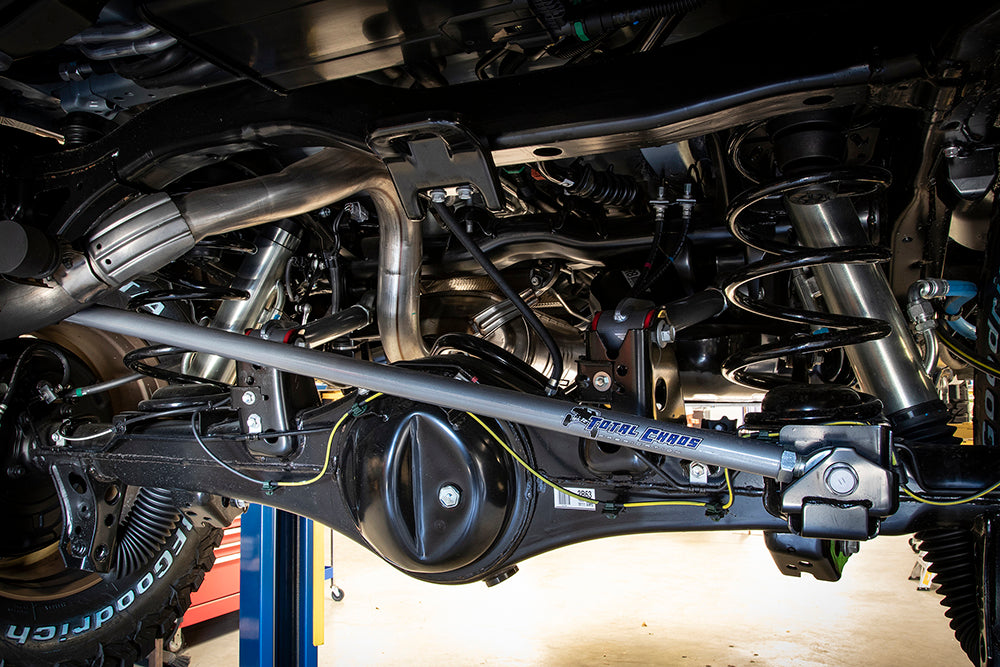

- Panhard bar is constructed from 1 1/A10 .250 wall 4130 chromoly tubing for maximum strength and uses 7/8" chromoly heims.

- Upper, lower and panhard bars are designed to incorporate a heim joint making the entire rear link system length adjustable

- Includes greasable urethane pivot bushings.

- Capable of more wheel travel with custom shocks.

- Hi-misalignment spacers included, re-uses factory mounting hardware.

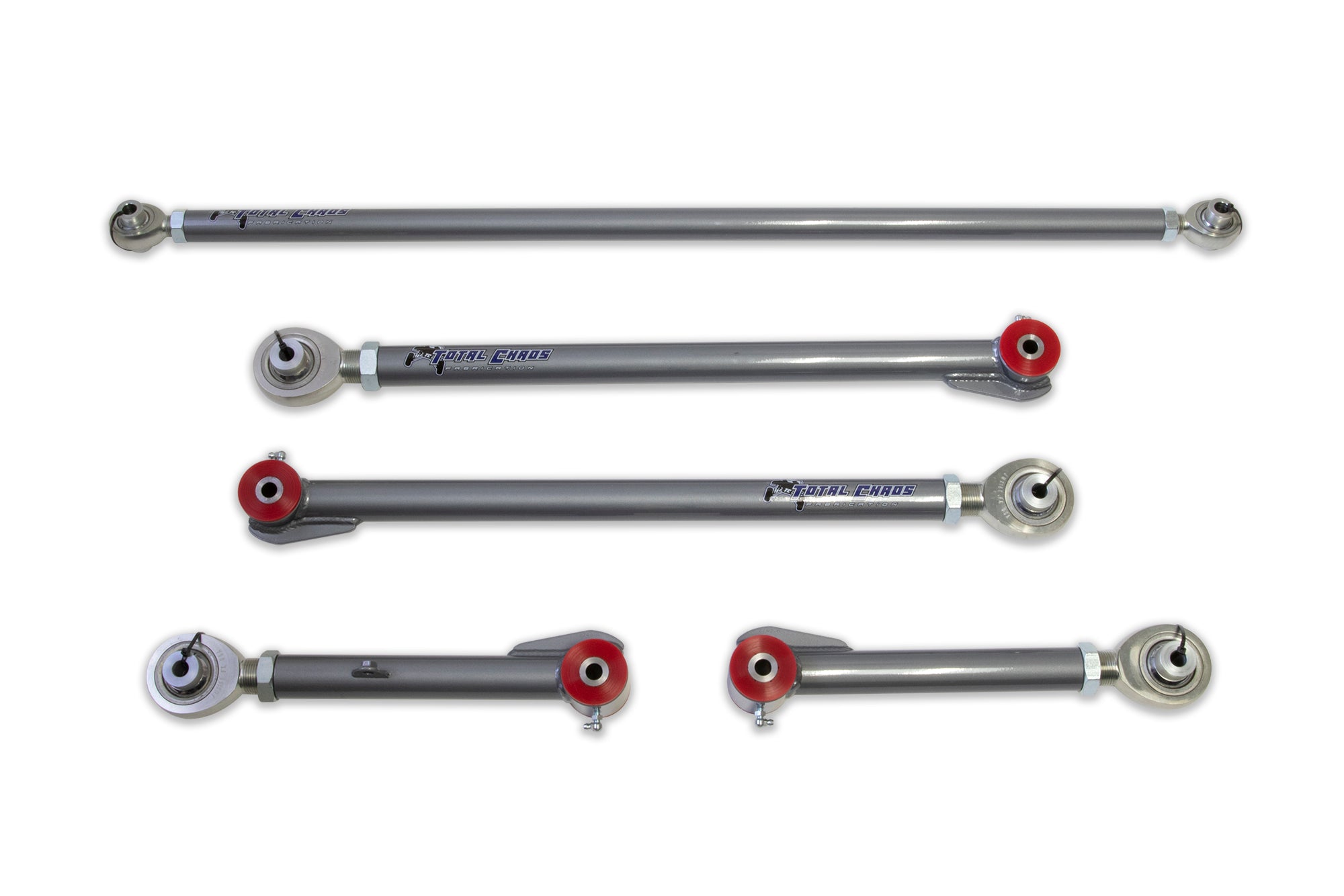

Parts Included:

• Upper Link - Qty: (2)

• Lower Link - Qty: (2)

• Panhard Bar - Qty: (1)

• Inner Sleeve, Rear Lower Link - Qty: (2)

• Inner Sleeve, Rear Upper Link - Qty: (2)

• Bushing, Universal Half - Qty: (6)

• Bushing, Universal Full - Qty: (2)

• Heim Spacer, Upper Link - Qty: (4)

• Heim Spacer, Lower Link - Qty: (4)

• Heim Spacer, Panhard - Qty: (4)

• Nut, 8mm-1.25 Flange Head Nut - Qty: (1)

• Heim, Rht 7/8" X 7/8" - Qty: (2) Jam Nut, 7/8 - 14 Rht - Qty: (2) Heim, Rht 1-1/4" - Qty: (14)

• Jam Nut, 1-1/4" Rht - Qty: (4)

• Zerk Fitting, 1/4"-28 90 Degree - Qty: (5)

• Please Contact Us For Any Replacement Parts.

(87450)
