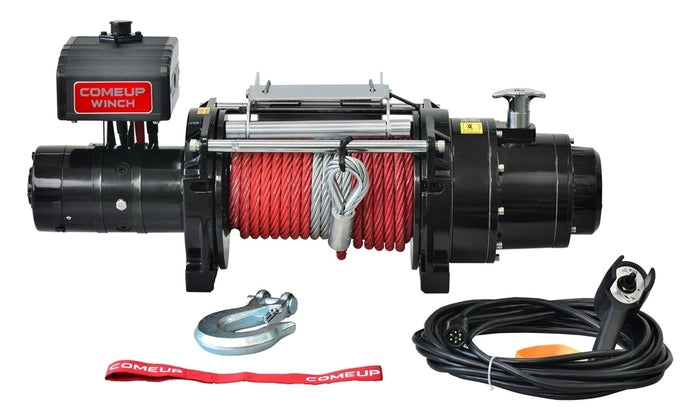

COMEUP WINCH | STS-15012
COMEUP WINCH | STS-15012
COMEUP WINCH | STS-15012

COMEUP WINCH | STS-15012

Regular price $1,745.95
/

The STS-series is not an offroad winch applied to cable roll-off systems. This product lineup is designed specifically for light to medium duty cable roll-off trucks and comes in two capacities.

The STS-series reflects our commitment to help our customers gain more sales with quality, design, innovation and service that benefit their customers.

Part Number 857375

Line Pull and Rope Capacity:

Layer of Wire Rope
Pull by Layer
lb/ kg
Total Rope on the Drum ft / m Line Speed
at 60 l/min (15.9 g/min)
fpm / mpm
1st 6,804 / 15,000 1.0 / 3.3 6.7 / 22.0
2nd 5,570 / 12,280 1.4 / 4.6 14.9 / 49.0
3rd 4,716 / 10,397 1.7 / 5.6 15.2 / 50.0



Line Speed and Amp. Draw ( 1st layer of wire rope on the drum ):

Line Pull,
kg / lb
Line Speed,
mpm / fpm
Amp. Draw, 12V
No load 8.4 / 27.6 45
1,814 / 4,000 2.7 / 8.9 150
3,629 / 8,000 2.4 / 7.9 210
4,536 / 10,000 2.1 / 6.9 260
5,443 / 12,000 1.5 / 4.9 300
6,804 / 15,000 1.0 / 3.3 370




Specifications:

  • Rated Line Pull 15,000 lbs (6,804 kg) single line
  • Motor 7.0 hp / 5,220w 12V series wound
  • Gear Ratio 315:1
  • Clutch (freespooling) Rotating Ring Gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum Die Cast Housing with Steel Drum

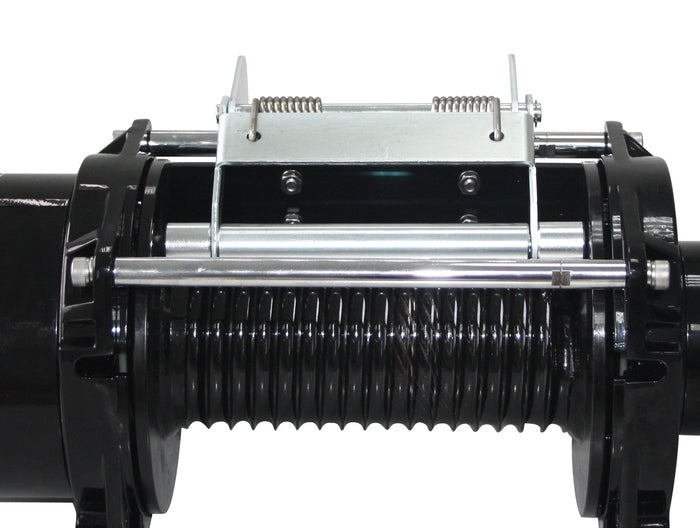

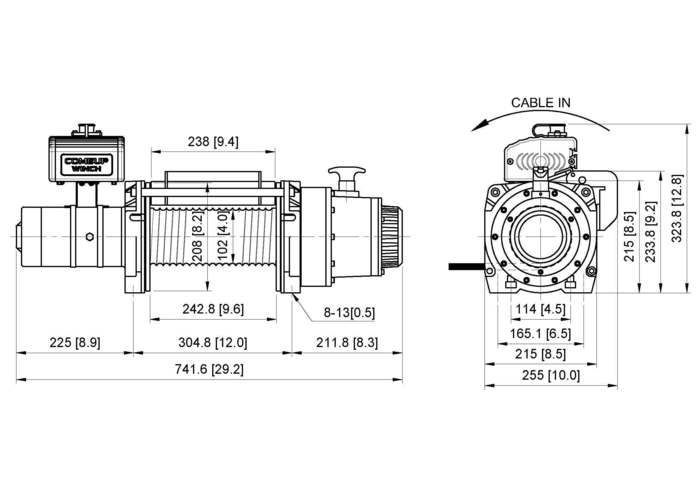

  • Drum Size 4.0” x 9.6” (102 x 242.8 mm)
  • Control Remote control w/32.8' (10 m) cord
  • Rope Size 1/2" x 50' (12.7mm x 15.2m)
  • Mounting Bolt Pattern 12” x 4.5” (304.8 x 114 mm), 12” x 6.5” (304.8 x 165 mm)
  • Winch Weight 143 lbs / 65 kg
  • Gross Weight 170 lbs / 77 kg
  • Box Dimensions 778 x 288 x 459 mm (30.6” x 11.3” x 18”)
