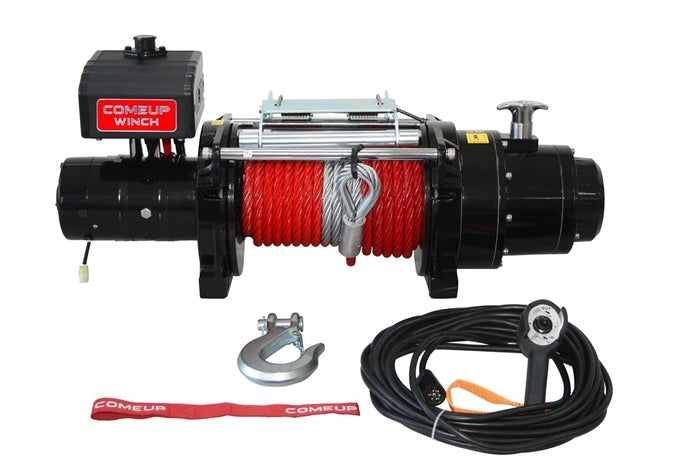

COMEUP WINCH | STS-15010
COMEUP WINCH | STS-15010
COMEUP WINCH | STS-15010

COMEUP WINCH | STS-15010

Regular price $1,665.95
/

The STS-series is not an offroad winch applied to cable roll-off systems. This product lineup is designed specifically for light to medium duty cable roll-off trucks and comes in two capacities.

The STS-series reflects our commitment to help our customers gain more sales with quality, design, innovation and service that benefit their customers.

Part Number 857380

Line Pull and Rope Capacity:

Layer of Wire Rope
Pull by Layer
lb/ kg
Total Rope on the Drum ft / m Line Speed
at 60 l/min (15.9 g/min)
fpm / mpm
1st 6,804 / 15,000 1.0 / 3.3 6.0 / 20.0
2nd 5,570 / 12,280 1.4 / 4.6 9.1 / 30.0



Line Speed and Amp. Draw ( 1st layer of wire rope on the drum ):

Line Pull,
kg / lb
Line Speed,
mpm / fpm
Amp. Draw, 12V
No load 8.4 / 27.6 45
1,814 / 4,000 2.7 / 8.9 150
3,629 / 8,000 2.4 / 7.9 210
4,536 / 10,000 2.1 / 6.9 260
5,443 / 12,000 1.5 / 4.9 300
6,804 / 15,000 1.0 / 3.3 370



    Specifications:

    • Rated Line Pull 15,000 lbs (6,804 kg) single line
    • Motor 7.0 hp / 5,220w 12V series wound
    • Gear Ratio 315:1
    • Clutch (freespooling) Rotating Ring Gear
    • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
    • Winch Construction Aluminum Die Cast Housing with Steel Drum

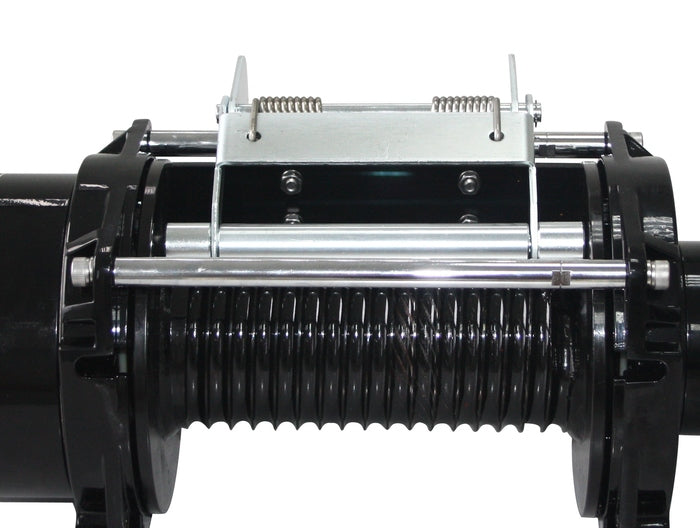

    • Drum Size 4.0” x 7.6” (102 x 192 mm)
    • Control Remote control w/32.8' (10 m) cord
    • Rope Size 1/2" x 30' (12.7mm x 9.1m)

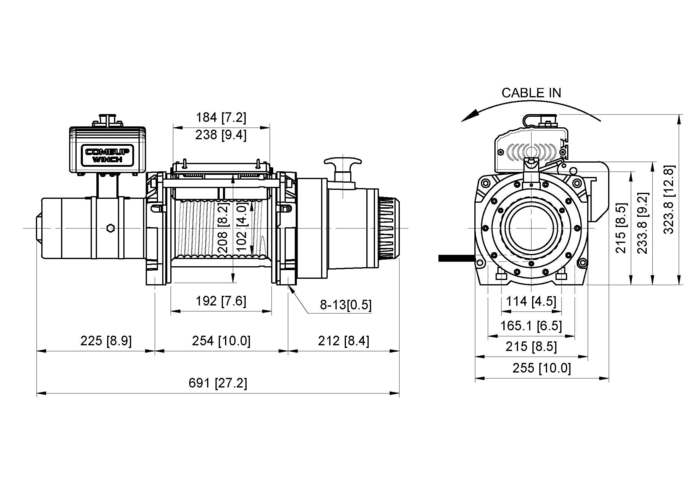

    • Mounting Bolt Pattern 10” x 4.5” (254 x 114 mm), 10” x 6.5” (254 x 165 mm)
    • Winch Weight 137 lbs / 62 kg
    • Gross Weight 163 lbs / 74 kg
    • Box Dimensions 778 x 288 x 459 mm (30.6” x 11.3” x 18”)
