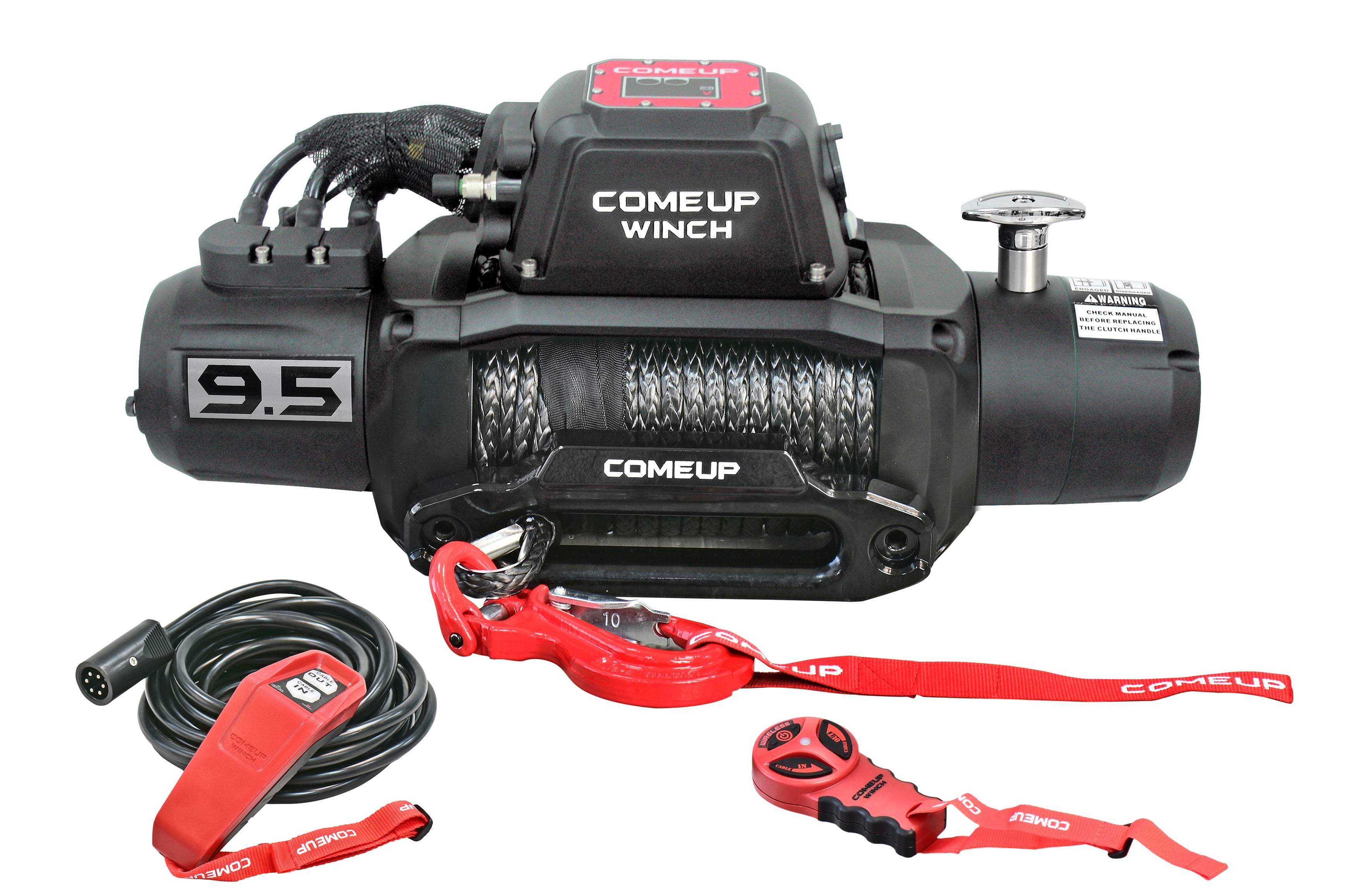

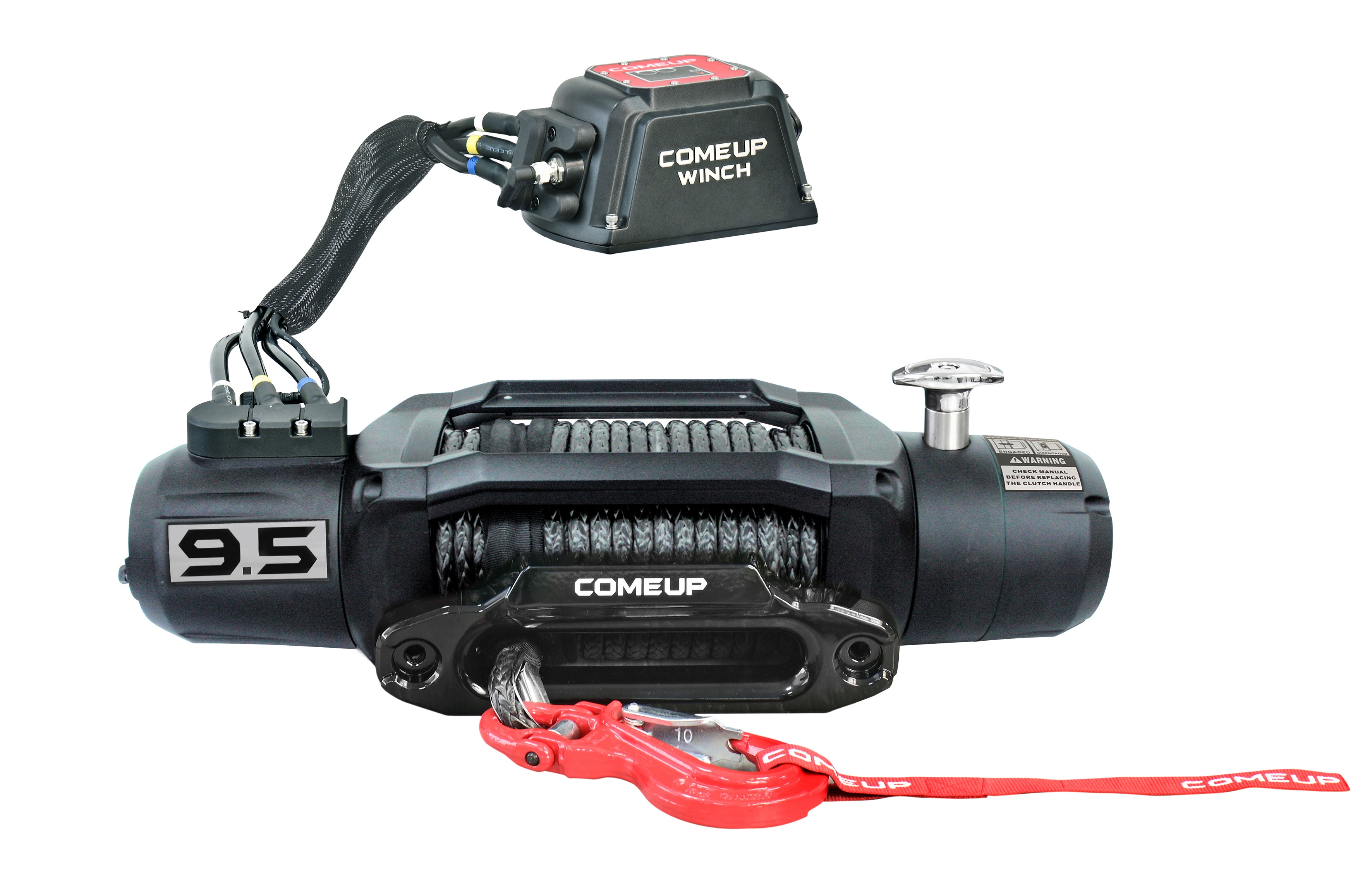

COMEUP WINCH | SOLO 9.5rs
COMEUP WINCH | SOLO 9.5rs
COMEUP WINCH | SOLO 9.5rs
COMEUP WINCH | SOLO 9.5rs
COMEUP WINCH | SOLO 9.5rs
COMEUP WINCH | SOLO 9.5rs

COMEUP WINCH | SOLO 9.5rs

Regular price $1,750.00 Sale price $1,455.95
/

Part Number 291280



Line Speed and Amp. Draw (1st layer of wire rope on the drum):

 Line Pull,
kg / lb
Line Speed,
mpm / fpm
Amp. Draw, A
No load 14.8 / 48.6 60
907 / 2,000 4.8 / 15.7 115
1,814 / 4,000 3.6 / 11.8 210
2,722 / 6,000 2.8 / 9.2 245
3,629 / 8,000 2.3 / 7.6 280
4,309 / 9,500 2.2 / 7.2 380



Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 4,309 / 9,500 5.1 / 16.7
2nd 3,472 / 7,655 11.7 / 38.4
3rd 2,908 / 6,410 19.7 / 64.6
4th 2,501 / 5,514 30.5 / 100


Specifications:

  • Rated Line Pull 9,500 lbs (4,309 kg) single line
  • Motor 5.0 hp / 3,730 w 12V Series Wound
  • Gear Ratio 3-Stage Planetary 159:1

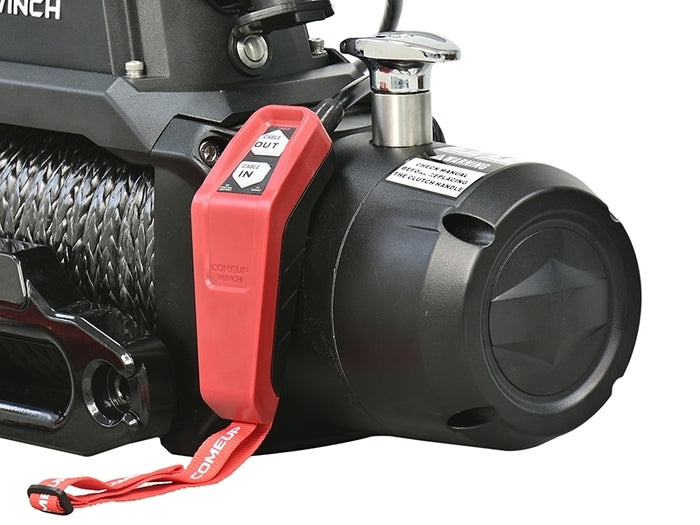

  • Clutch (freespooling) Rotating Ring Gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum Die Cast Housing with Steel Drum
  • Drum Size 2.5" x 9" (63.5 x 228 mm)

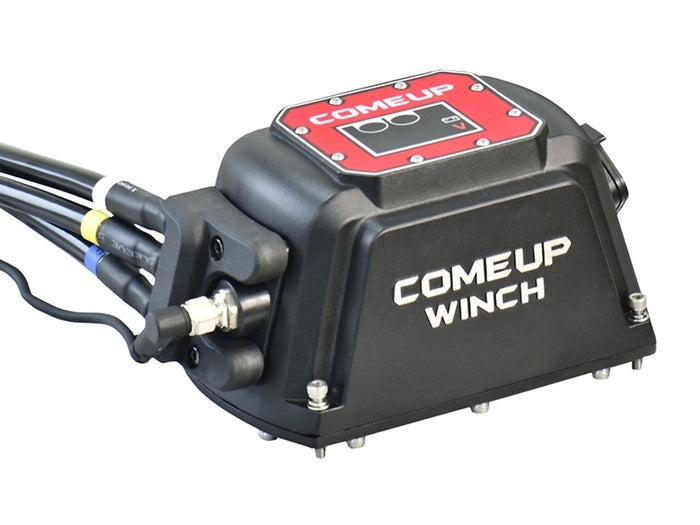

  • Control Digital two-way wireless remote control and water-proof wired remote control with thermometric LED indicator
  • Rope Type Synthetic Rope
  • Rope Size 3/8" x 100' (10 mm x 30.5 m)
  • Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm)
  • Winch Weight 76.9 lb
  • Gross Weigh 91.5 lb
  • Dimensions 26.9" x 8.2" x 16.9" (682 x 209 x 430 mm )
