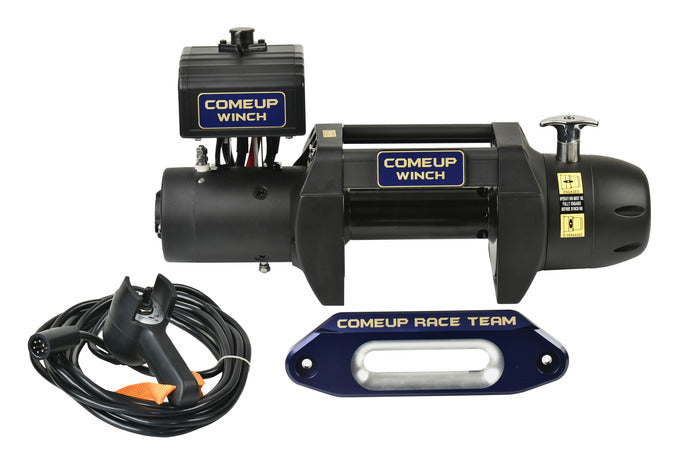

COMEUP WINCH | SEAL MadX 8.0s MD
COMEUP WINCH | SEAL MadX 8.0s MD
COMEUP WINCH | SEAL MadX 8.0s MD
COMEUP WINCH | SEAL MadX 8.0s MD
COMEUP WINCH | SEAL MadX 8.0s MD
COMEUP WINCH | SEAL MadX 8.0s MD

COMEUP WINCH | SEAL MadX 8.0s MD

Regular price $1,140.00 Sale price $945.95
/

Part Number 296155

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

 Line Pull,
kg / lb
Line Speed,
mpm / fpm
Amp. Draw, A
No load 25 / 82 45
907 / 2,000 10.8 / 35.4 125
1,814 / 4,000 8.5 / 27.9 249
2,722 / 6,000 4.1 / 13.5 378
3,630 / 8,000 1.0 / 3.3 500



Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 3,630 / 8,000 4.5 / 14.8
2nd 2,924 / 6,446 10.0 / 32.8
3rd 2,449 / 5,399 16.7 / 54.8
4th 2,106 / 4,643 22.3 / 73


Specifications:

  • Rated Line Pull 8,000 lb Single Line
  • Motor 5,250 w / 7.0 hp 12V series wound
  • Gear Ratio 3-stage planetary 67:1
  • Clutch (freespooling) Rotating ring gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum Die Cast Housing with Steel Drum

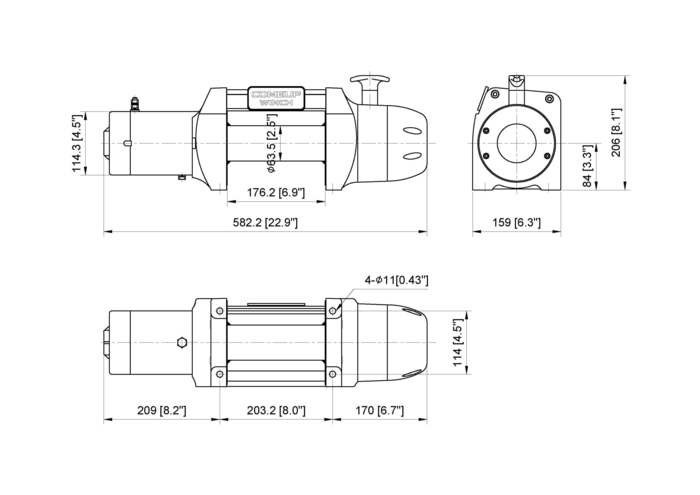

  • Drum Size 2.5” x 6.9”L
  • Control Waterproof remote with thermometric indicator LED w/ 17 ft cord

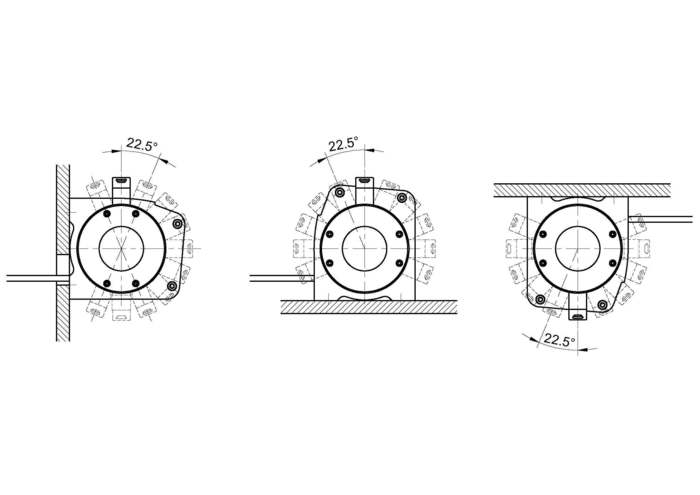

  • Mounting Bolt Pattern 8” x 4.5”
  • Winch Weight 59.5 lb
  • Gross Weigh 87 lb
  • Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
  • Box Dimensions 25.7 ” x 8.2 ” x 16.9”
