Part Number 296060
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
Line Pull, kg / lb
|
Line Speed, mpm / fpm |
Amp. Draw, A |
No load |
25 / 82 |
45 |
907 / 2,000 |
10.8 / 35.4 |
125 |
1,814 / 4,000 |
8.5 / 27.9 |
249 |
2,722 / 6,000 |
4.1 / 13.5 |
378 |
3,630 / 8,000 |
1.0 / 3.3 |
500 |
Line Pull and Rope Capacity:
Layer of Rope |
Pull by layer, kg / lb |
Total Rope on the Drum, m / ft |
1st |
3,630 / 8,000 |
5.8 / 19.1 |
2nd |
2,924 / 6,446 |
13.1 / 42.9 |
3rd |
2,449 / 5,399 |
21.7 / 71.2 |
4th |
2,106 / 4,643 |
30.5 / 100 |
Specifications:
- Rated Line Pull 8,000 lb Single Line
- Motor 5,250 w / 7.0 hp 12V series wound
- Gear Ratio 3-stage planetary 67:1
- Clutch (freespooling) Rotating ring gear
- Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
- Winch Construction Aluminum Die Cast Housing with Steel Drum

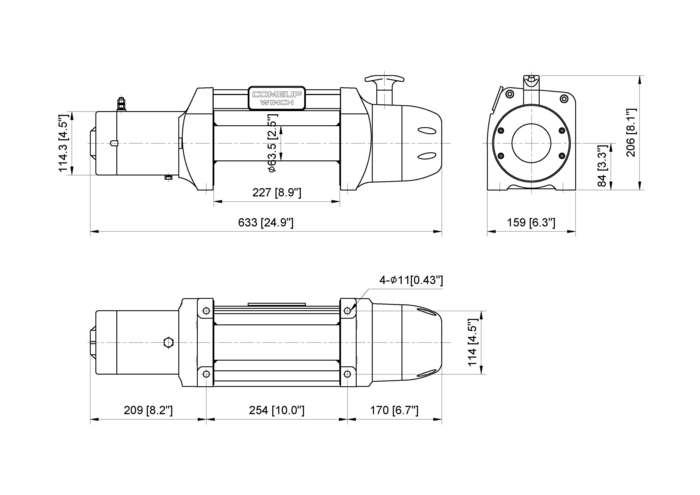

- Drum Size 2.5” x 8.9”L
- Control Waterproof remote with thermometric indicator LED w/ 17 ft cord
- Mounting Bolt Pattern 10” x 4.5”
- Winch Weight 61.7 lb
- Gross Weigh 89.1 lb
- Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
- Box Dimensions 28 ” x 8.2 ” x 16.9”
