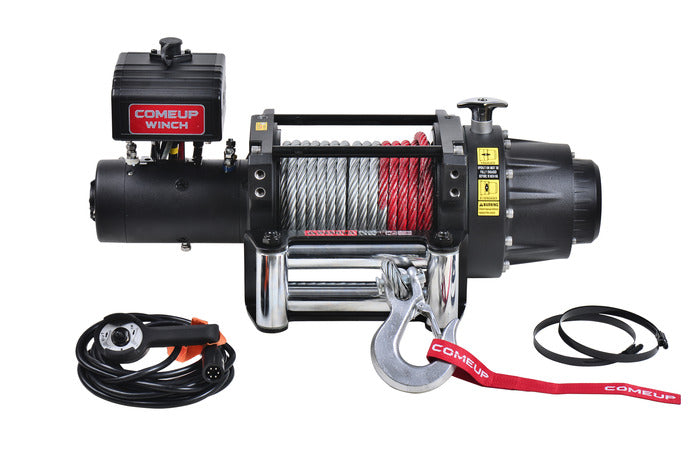

COMEUP WINCH | SEAL GEN2 20.0, 12V Winch
Quantity:
SELECT OPTIONS
Quantity:
Quantity:
Part Number 295230
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
No load | 4.5 / 14.8 | 60 |
1,814 / 4,000 | 2.1 / 6.9 | 150 |
3,629 / 8,000 | 1.8 / 5.9 | 190 |
4,536 / 10,000 | 1.4 / 4.6 | 260 |
7,484 / 16,500 | 1.1 / 3.6 | 340 |
9,072 / 20,000 | 0.4 / 1.3 | 410 |
Line Pull and Rope Capacity:
Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
1st | 9,072 / 20,000 | 5.0 / 16.4 |
2nd | 7,259 / 16,003 | 11.2 / 36.7 |
3rd | 6,050 / 13,338 | 18.0 / 59.0 |
Specifications:
- Rated Line Pull 20,000 lb single line
- Motor 5,220 w / 7.0 hp 12V series wound
- Gear Ratio 3-stage planetary 343:1
- Clutch (freespooling) Rotating ring gear
- Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
- Winch Construction Aluminum die cast housings with steel drum
- Drum Size 3.5" x 8"L
- Control Both built-in digital signal two way wireless remote control and waterproof wired remote with thermometric indicator LED w/ 17’ (5 m) cord
- Rope Type Synthetic rope
- Rope Size 9/16" x 55'

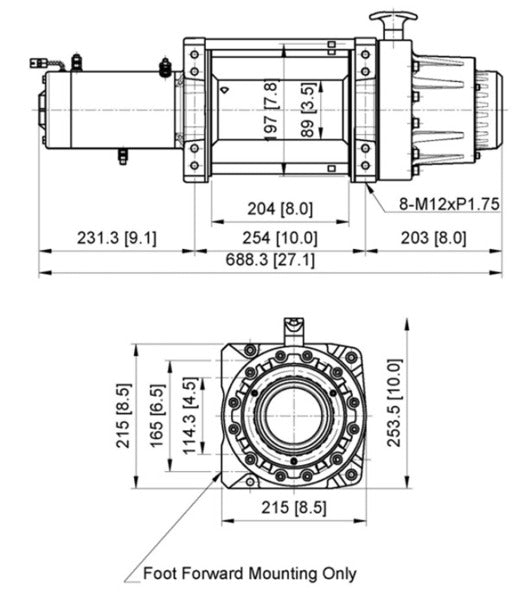

- Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm), 10" x 6.5" (254 x 165 mm)
- Winch Weight 109.3 lb
- Gross Weight 140.2 lb
- Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
- Box Dimensions 29.1" x 10.6" x 19.5"
