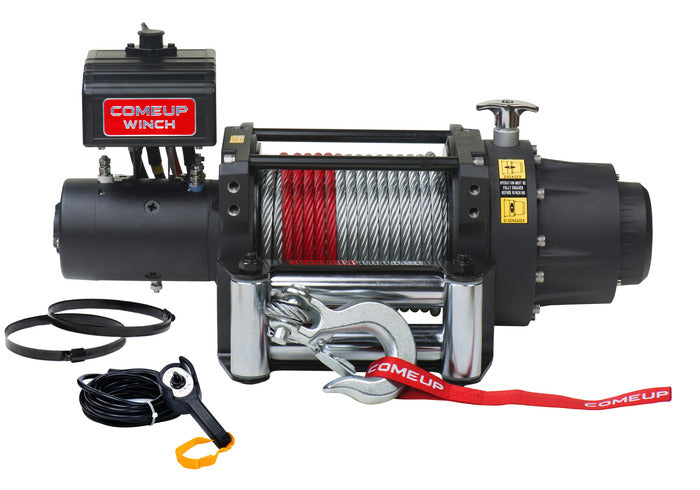

Part Number 295620
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
Line Pull, kg / lb
|
Line Speed, mpm / fpm |
Amp. Draw, A |
No load |
5.5 / 18.0 |
50 |
1,814 / 4,000 |
2.9 / 9.5 |
90 |
3,629 / 8,000 |
2.4 / 7.9 |
180 |
4,536 / 10,000 |
1.8 / 5.9 |
230 |
7,484 / 16,500 |
1.4 / 4.6 |
355 |
Line Pull and Rope Capacity:
Layer of Rope |
Pull by layer, kg / lb |
Total Rope on the Drum, m / ft |
1st |
7,484 / 16,500 |
5.6 / 18.4 |
2nd |
6,125 / 13,503 |
12.4 / 40.7 |
3rd |
5,184 / 11,429 |
20.4 / 66.9 |
4th |
4,494 / 9,908 |
27.4 / 90.0 |
Specifications:
- Rated Line Pull 20,000 lb single line
- Motor 5,220 w / 7.0 hp 12V series wound
- Gear Ratio 3-stage planetary 343:1
- Clutch (freespooling) Rotating ring gear
- Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
- Winch Construction Aluminum die cast housings with steel drum
- Drum Size 3.5" x 8"L
- Control Waterproof wired remote with thermometric indicator LED w/ 17’ (5 m) cord
- Rope Type 6 x 29 - IWRC
- Rope size 1/2" x 59’ (12.7 mm x 18 m )

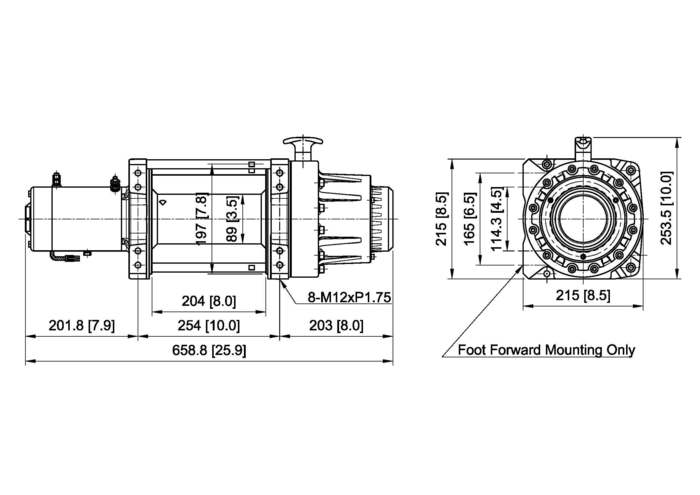

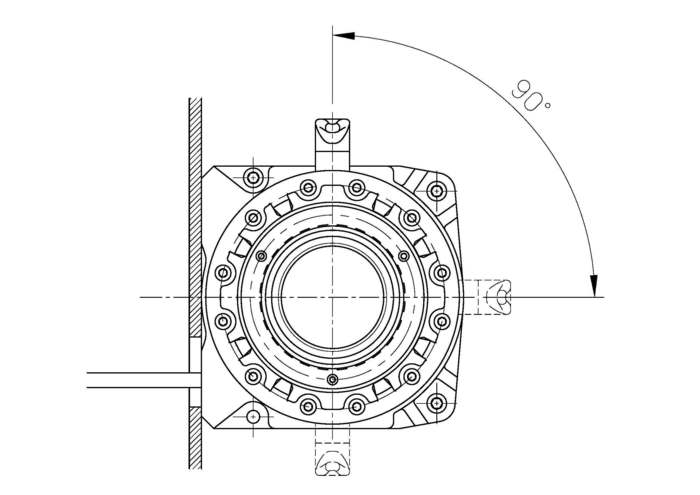

- Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm), 10" x 6.5" (254 x 165 mm)
- Winch Weight 132 lb
- Gross Weight 169.7 lb
- Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
- Box Dimensions 29.1" x 10.6" x 19.5"
