Regular price $2,860.00 Sale price $2,385.95
/

Part Number 298376

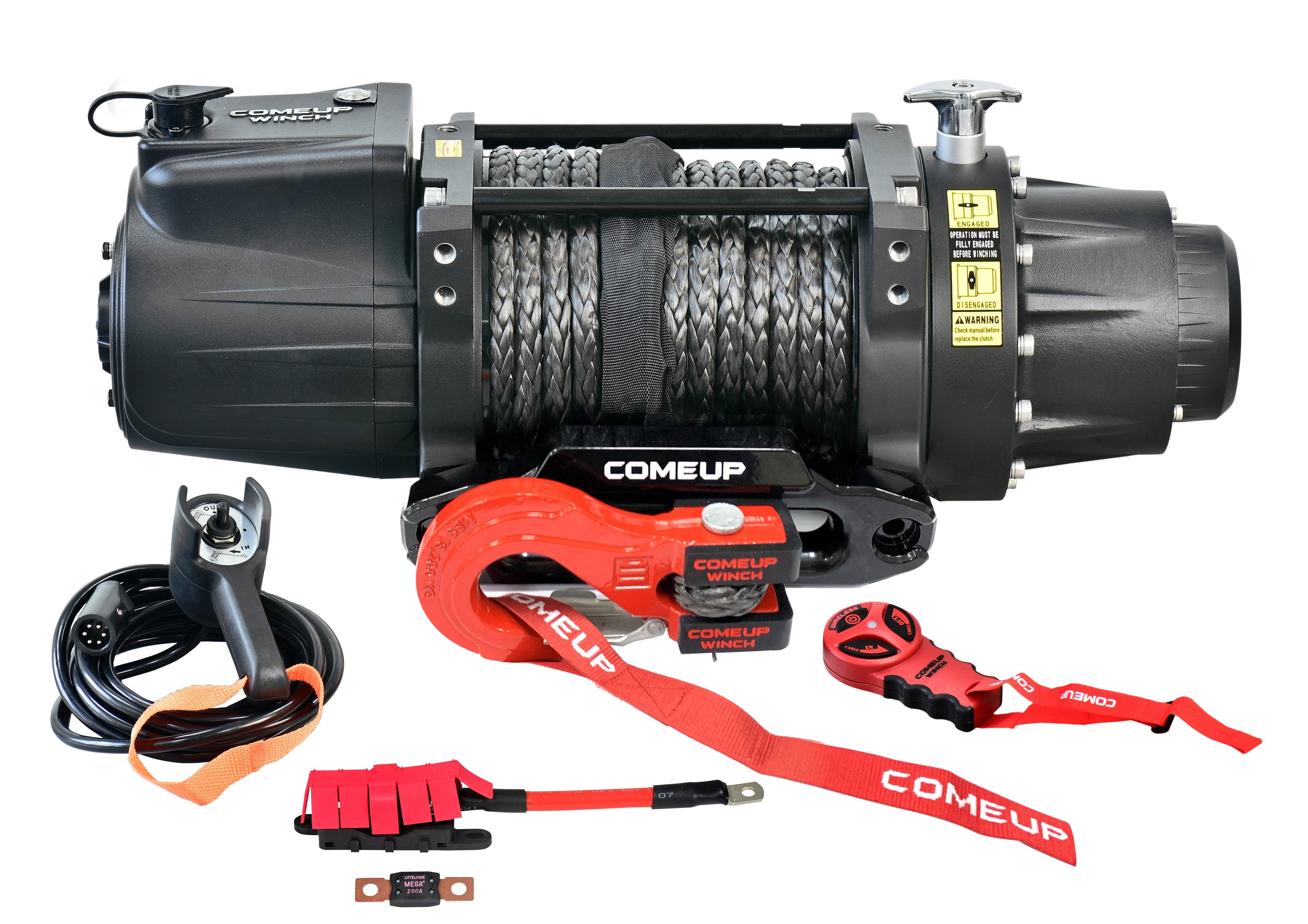

Introducing the COMEUP Seal 16.5rsi Trail Edition, the ultimate winching solution designed for unparalleled ease of installation and equipped with exclusive Trail Edition features for enhanced functionality.

Firstly, as a control box integrated winch, the Seal 16.5rsi sets a new standard for simplicity in installation. By integrating the control box directly into the winch design, installation becomes a breeze, streamlining the setup process and saving you valuable time and effort.

Secondly, the Seal 16.5rsi proudly bears the distinction of being the Trail Edition, which includes our innovative BossHook-L and a specialized winch fuse kit. The BossHook-L revolutionizes recovery operations with its advanced design, providing superior attachment points for secure and efficient winching. Additionally, the inclusion of the winch fuse kit ensures optimal performance and protection for your winch system, enhancing reliability and peace of mind on the trail.

With its robust construction, powerful performance, and exclusive Trail Edition features, the COMEUP Seal 16.5rsi stands out as the ultimate winch choice for Overland full-size pickup trucks. Engineered to meet the demanding needs of off-road enthusiasts, this winch offers unparalleled convenience, functionality, and reliability specifically tailored for full-size trucks navigating challenging terrains. Enjoy peace of mind on your solo expeditions, knowing that the Seal 16.5rsi is there to provide reliable assistance whenever you need it most, making it the best winch companion for your Overland adventures.

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

 Line Pull,
kg / lb
Line Speed,
mpm / fpm
Amp. Draw, A
No load 5.6 / 18.4 50
1,814 / 4,000 3.0 / 9.8 90
3,629 / 8,000 2.5 / 8.2 180
4,536 / 10,000 1.9 / 6.2 230
7,484 / 16,500 1.4 / 4.6 355



Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 7,484 / 16,500 5.2 / 17.1
2nd 6,125 / 13,503 11.6 / 38.1
3rd 5,184 / 11,429 19.2 / 63.0
4th 4,494 / 9,908 25.0 / 82.0



Specifications:

  • Rated Line Pull 16,500 lbs (7,484 kg) single line
  • Motor 5.8 hp / 4,325w 12V Series Wound
  • Gear Ratio 3-Stage Planetary 343:1
  • Clutch (freespooling) Rotating Ring Gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum Die Cast Housing with Steel Drum

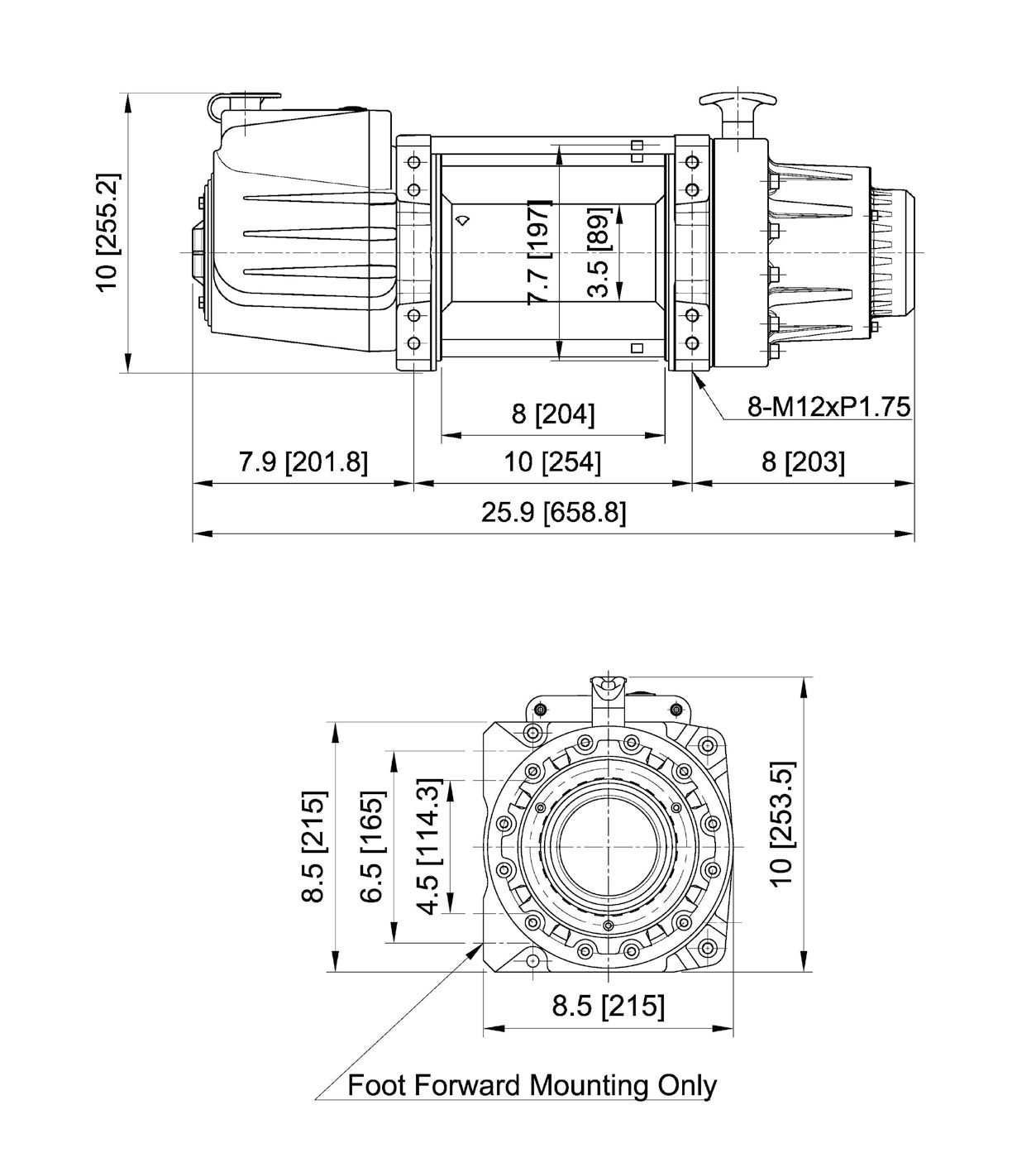

  • Drum Size 3.5" x 8" (89 x 204 mm)
  • Control Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17' (5 m) cord
  • Rope Type Synthetic Rope
  • Rope Size 1/2" x 82' (12 mm x 25 m)
  • Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm), 10" x 6.5" (254 x 165 mm)
  • Winch Weight 132 lb (60 kg)
  • Gross Weight 150 lb (68 kg)
  • Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
  • Box Dimensions 27.2" x 10.6" x 15.9" (690 x 270 x 405 mm )
