RIGID INDUSTRIES | Tundra 3rd Gen 2022-2025 6 Inch 360-Series A-Pillar Lighting Kit (46806)
SELECT OPTIONS
Description
Give your Tundra's light game the ultimate upgrade with the 2022-2025 Toyota Tundra 6 Inch 360-Series A-Pillar Light Kit. Designed to mount cleanly to the A-Pillar mounting location, this kit includes the brackets, a pair of 6 Inch 360-Sries Drive Lights with Amber Backlighting, two black light covers, two yellow light covers, a wiring harness, and hardware. The kit has everything you need to install and connect a pair of RIGID's 360-Series lights into your Tundra's A-Pillar light locations.
Features
Complete LED Light A-Pillar Mount Kit
Brackets made from Stainless Steel Construction
UV and Abrasion Resistant Powder Coat
Works with the Tundra's A-Pillar mounting location
Low Profile
A pair of 6 Inch 360-Series Lights with Drive Optics and independtly controlled Amber Backlighting
Designed to fit on the 2022-2025 Toyota Tundra

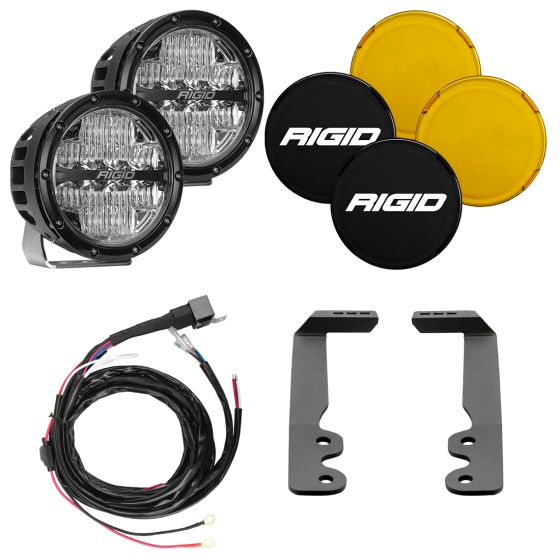

Product comes with
Pair of 6 Inch 360-Series Drive Lights with Amber Back Light
Pair of Black 6 Inch 360 Covers
Pair of Yellow 6 Inch 360 Covers
A-Pillar Brackets
Mounting Hardware
Wire Harness
Specifications
| Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | **Peak Beam Ibntensity(cd) | Horizontal Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|
| 46806 | 7.20 | DRIVE | 72 | 4.85 | 8670 | 736.57 | 271.4 | 542.8 | 73657 | 57 |
46806-46807-46808-Tundra_Ditch_Light_Bracket (350.52 kB)
