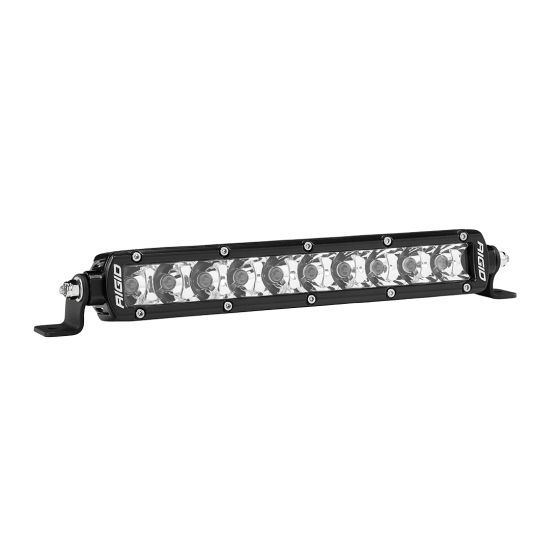

RIGID INDUSTRIES | SR-Series Pro 10 Inch Spot Black (910213)
SELECT OPTIONS
Description
The SR-Series PRO LED Light Bars provide a sleek, low profile lighting solution that measures less than 2” tall. Thanks to improved LED technology, the SR-Series PRO now offers more light output than ever before with up to 111% more raw lumens. As the name implies, the SR-Series PRO utilizes a single row of LEDs with your choice of Hybrid or patented Specter optics in a variety of beam patterns. Ideal for applications where space is limited, the SR-Series PRO is a powerful light source designed to project light at extreme distances while consuming very little power. Available in a wide range of lengths and configurations, these LED light bars can be used on virtually any application, whether it’s an off-road vehicle, industrial, agricultural, or marine. RIGID’s SR-Series PRO lights utilize extruded aluminum housings and are available with either a black or white durable powder coated finish. Along with improved LEDs for more output, the SR-Series PRO benefits from new branding and blacked-out circuit boards for a more refined look. They feature the same superior build quality as the rest of RIGID’s lighting products, providing reliable and efficient lighting on demand.
Features
50,000 Plus Hour Lifespan
9-36 V DC
Durable UV Resistant Powder Coat
High-Grade Aluminum Alloy
Integrated Thermal Management System
Impact Resistant Polycorbonate Lens
Over/Under Voltage Protection
RFI/EMI Protection
Reverse Polarity Protection
Over/Under Voltage Protection
RoHS Compliant
Operating Temp -40 Deg F To +145 Deg F
SAE J575 Compliant - Shock/Vibration
Available In White And Black Housing
Pressure Equalizing Vent
Waterproof Connector (Exclusions Apply)
Limited Lifetime Warranty
Off Road Use Only
Specifications
Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | Horizontal Beam Angle |
---|---|---|---|---|---|---|---|---|---|---|
10" | 910213 | 1.72 | SPOT | 59 | 4.21 | 7920 | 1394.11 | 373.4 | 746.8 | 17.2 |
E-Series PRO and SR-Series PRO Installation Instructions (832.92 kB)
