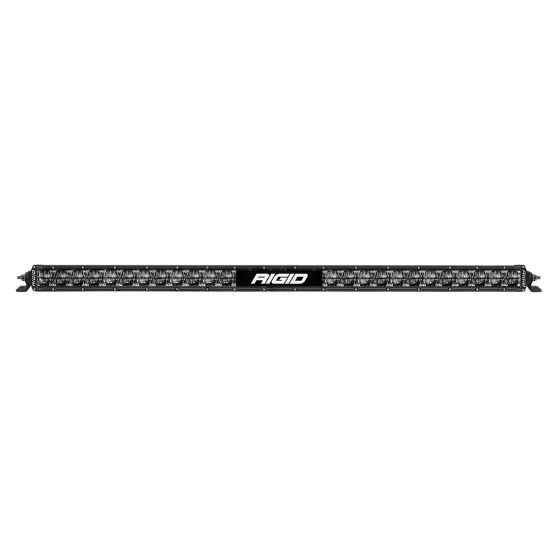

RIGID INDUSTRIES | SR-Series 30 Inch Dual Function SAE Auxiliary High Beam Driving Lights with White Backlight (930413)
SELECT OPTIONS
Description

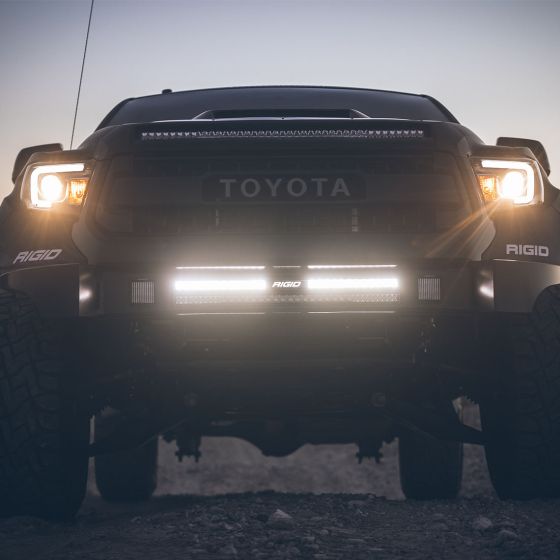

Off-road auxiliary lighting is one thing, but everyone knows that it’s important to have lighting that is also safe and legal for on-road use. RIGID’ SAE Compliant Fog Lights and Auxiliary High Beam Driving Lights allow them to be used on-the-road and not just off-road. RIGID created the proprietary output spread and height with the new patented Clarilux™ optic system. The color temperature of these LEDs was carefully chosen to be a perfect range of pure daylight to penetrate the night for superior clarity on the road. These SAE Compliant lights project long-range high intensity light while drawing very little power and provide up to 50,000 useful hours. As an added function, the SR-Series SAE compliant lights offer a bold back-lit RIGID branding plate. This feature can be ran independently, or in tandem with the forward projecting LEDs. The low profile design includes a High-Grade Aluminum Alloy Housing with a custom designed oversized heat sink to keep the LEDs running cooler, brighter and longer. Combine this with the strength of a polycarbonate lens; the RIGID SAE Compliant Lights represent the ultimate solution for your street-legal lighting in North America.
Features
SAE J581 Compliant Street Legal Auxiliary High Beam LED Light
White LED Light

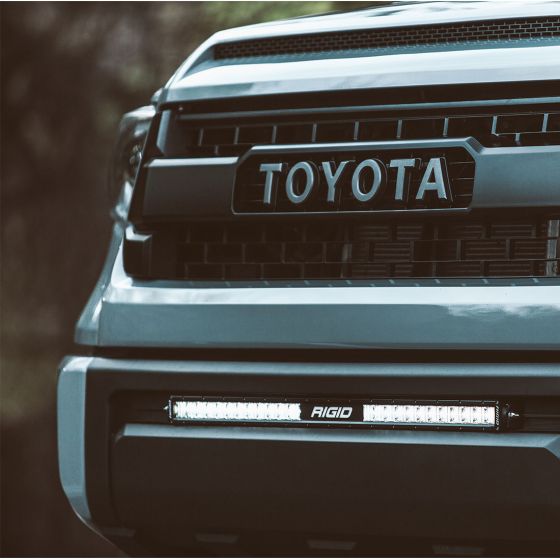

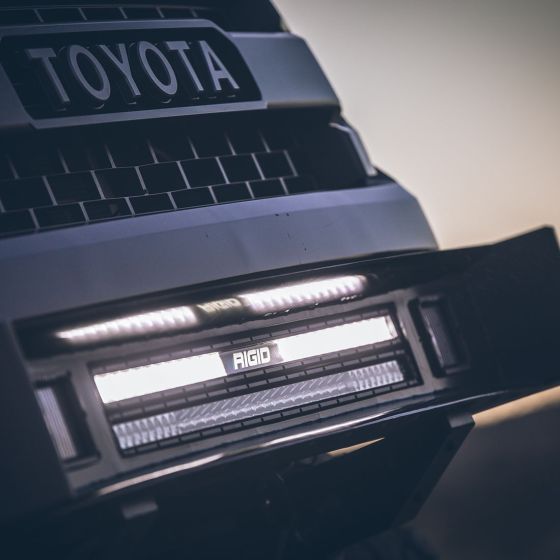

Multi-Function With RIGID Branding Plate
"Integrated Thermal Management System"
9-36 VDC Operation
RFI/EMI Protection
Impact Resistant Polycarbonate Lens
High Grade Alloy Housing And Heatsink
Over/Under Voltage Protection
IP68 Rated - Dust/Water Ingress
Pressure Equalizing Vent
Patented Optics
Durable UV Polyester Powder Coat
50,000 Hour Lifespan
Operating Temp -40 Deg F To +145 Deg F
RoHS Compliant
Limited Lifetime Warranty
Legal For On Road and Off Road Use
Product comes with
BLACK HOUSING ONLY
2-1”, 2-3” Black Powder Coated, L-shape brackets
Deutsch Connector (6")
Open Leads, No Connector (20”-30”)
Harness w/Switch
Specifications

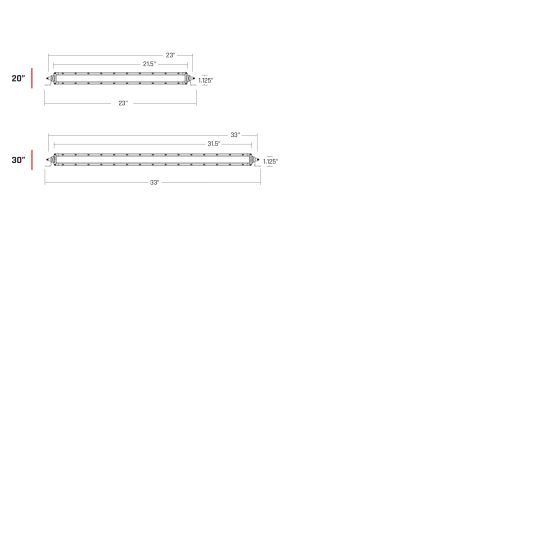

Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | Horizontal Beam Angle |
---|---|---|---|---|---|---|---|---|---|---|
30" | 930413 | 6.70 | DRIVING | 180 | 12.9 | 14148 | 745.5 | 273 | 546.1 | 53.6 |
