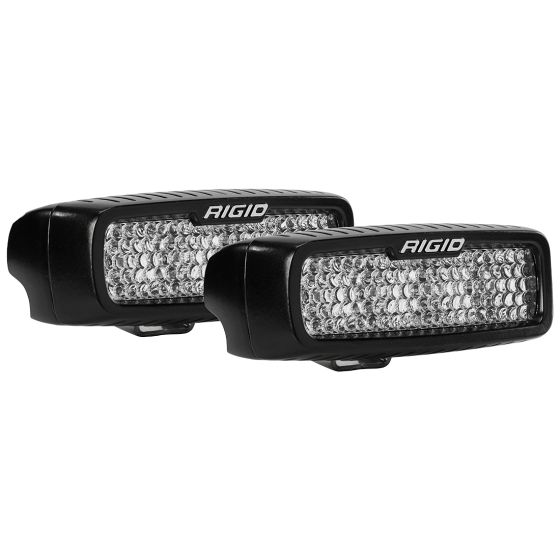

RIGID INDUSTRIES | SR-Q Series Pro Flood Diffused Backup Kit Surface Mount (980023)
SELECT OPTIONS
Description
Most factory back-up lights are inadequate for being able to clearly see what’s behind the vehicle while in reverse. The SR-Q Series PRO Back Up Light Kit is a sleek low profile lighting solution that packs more lighting output than ever before. Thanks to recent improvements to the advanced LED circuitry inside, the SR-Q Series PRO now emits 3,168 raw lumens.
Features
50,000 Plus Hour Lifespan
9-36 V DC
Durable UV Resistant Powder Coat
High-Grade Aluminum Alloy
Integrated Thermal Management System
Impact Resistant Polycorbonate Lens
Over/Under Voltage Protection
RFI/EMI Protection
Reverse Polarity Protection
RoHS Compliant
IP68 Compliant - Dust/Water Ingress
Operating Temp -40 Deg F To +145 Deg F
SAE J575 Compliant - Shock/Vibration
Available In White And Black Housing
Pressure Equalizing Vent
Waterproof Connector (Exclusions Apply)
Limited Lifetime Warranty
Off Road Use Only
Product comes with

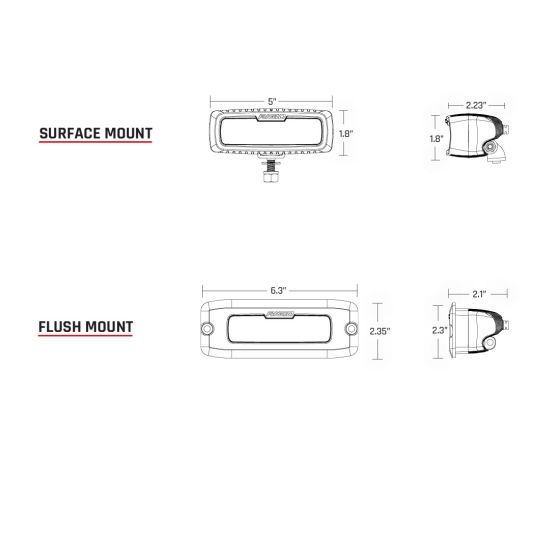

(2) SR-Q PRO Surface or Flush Mount Flood Diffusion Lights
OR
(2) SR-M PRO Surface or Flush Mount Flood Diffusion Lights
25’ Wiring Harness with Switch
Mounting Hardware
Black Covers for Pair of Lights (SM ONLY)
Specifications
| Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | **Peak Beam Ibntensity(cd) | Horizontal Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|
| 980023 | 1.48 | FLOOD DIFFUSED | 31 | 2.21 | 3168 | 13.38 | 36.6 | 73.2 | 1338 | 102.1 |
