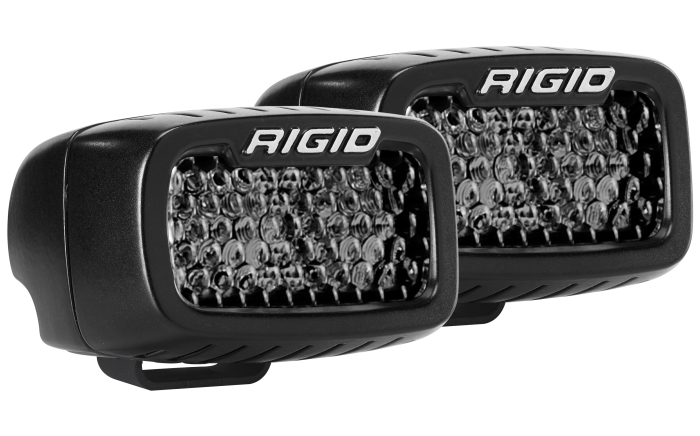

RIGID INDUSTRIES | SR-M Series Pro Spot Diffused Midnight Surface Mount | Pair (902513BLK)
SELECT OPTIONS
Description
It’s all about stealth with RIGID’s new Midnight Diffused Lens. Available in SR-Q, SR-M and D-Series, these lights feature blacked out hardware, blacked out spot optics and our NEW blacked out Diffused Lens. The Midnight Optics along with the new smoked diffused lens enable RIGID to virtually disappear during the day while still providing powerful LED technology to light up the night. Thanks to improved LED technology, the Midnight Edition PRO now offers more light output than ever before.
Features
Translucent Black Enamel on our Patented Hybrid Spot Optics
All Black Assembly Hardware
Special Black Polymer Coated Circuit Board
50,000 Plus Hour Lifespan
9-36 V DC
Durable UV Resistant Powder Coat
High-Grade Aluminum Alloy
Integrated Thermal Management System
Impact Resistant Polycorbonate Lens
Over/Under Voltage Protection
RFI/EMI Protection
Reverse Polarity Protection
RoHS Compliant
IP68 Compliant - Dust/Water Ingress
Operating Temp -40 Deg F To +145 Deg F
SAE J575 Compliant - Shock/Vibration
Limited Lifetime Warranty
Off Road Use Only
Product comes with
Mounting Hardware
Black Powdercoat, U-Shape Bracket (Excludes FM)
Harness w/Switch
Deutsch Connector
Specifications
| Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | **Peak Beam Ibntensity(cd) | Horizontal Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2"X3" | 902513BLK | 0.40 | SPOT | 10 | 0.7 | 706 | 11.8 | 34.4 | 68.7 | 1180 | 50.2 |
SR-M Series PRO Installation Instructions (837.59 kB)
