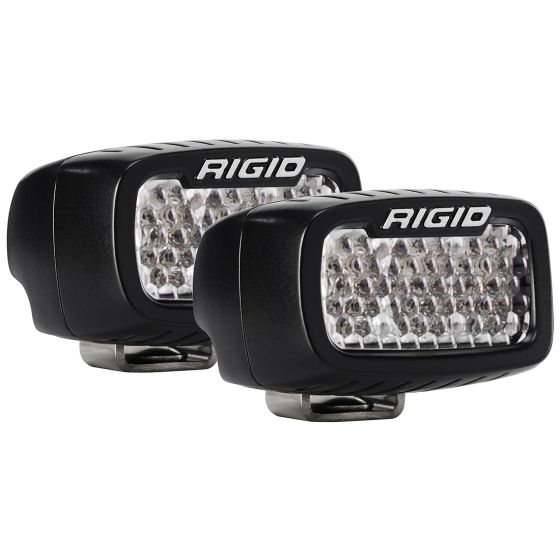

RIGID INDUSTRIES | SR-M Series Pro Flood Diffused Backup Kit Surface Mount (980003)
SELECT OPTIONS
Description

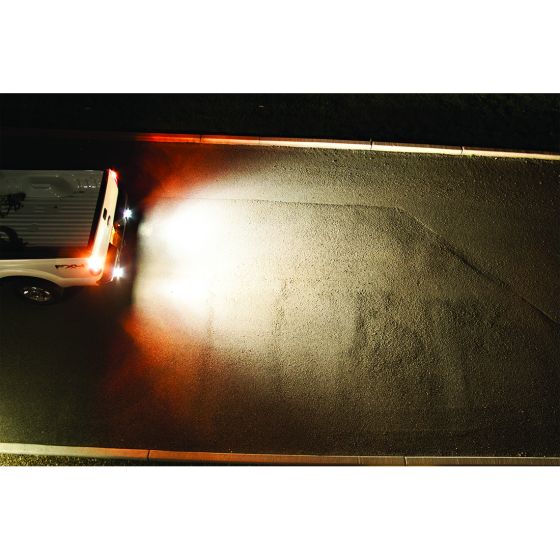

Most factory back-up lights are inadequate for being able to clearly see what’s behind the vehicle while in reverse. The SR-M Series PRO Back Up Light Kit is a sleek low profile lighting solution that packs more lighting output than ever before. Thanks to recent improvements to the advanced LED circuitry inside, the SR-Q Series PRO now emits 1584 raw lumens.
Features
50,000 Plus Hour Lifespan
9-36 V DC
Durable UV Resistant Powder Coat
High-Grade Aluminum Alloy
Integrated Thermal Management System
Impact Resistant Polycorbonate Lens
Over/Under Voltage Protection
RFI/EMI Protection
Reverse Polarity Protection
RoHS Compliant
IP68 Compliant - Dust/Water Ingress
Operating Temp -40 Deg F To +145 Deg F
SAE J575 Compliant - Shock/Vibration
Available In White And Black Housing
Pressure Equalizing Vent
Waterproof Connector (Exclusions Apply)
Limited Lifetime Warranty
Off Road Use Only
Specifications
| Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | **Peak Beam Ibntensity(cd) | Horizontal Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|
| 980003 | 0.59 | FLOOD DIFFUSED | 16 | 1.14 | 1584 | 18.3 | 42.8 | 85.6 | 1830 | 70.5 |
SR-M Series PRO Installation Instructions (837.59 kB)
