RIGID INDUSTRIES | Rock Light Kit 4 Amber (400243)
SELECT OPTIONS
Description
The RIGID Rock Light Kit uses the power and durability of A-Series LED lighting and adds custom 15 foot leads on each light, switch and angled mounts to light up the undercarriage of any truck, Jeep, or all-terrain vehicle. This kit will allow you to light up the trail with strategically placed lights on the vehicle. Perfect for night rock crawling, the LED lights are available in a variety of colors, including white, red, blue, or amber to aid night vision or accent vehicle colors. RIGID Rock Light Kits are available in 4-light or 6-light configurations to enhance and customize your night crawling experience. Own The Night with the original LED Rock Light Kit.
Features
50,000 Plus Hour Lifespan
10-28 V DC
Durable UV Resistant Powder Coat
High-Grade Aluminum Alloy
Integrated Thermal Management System
Impact Resistant Polycorbonate Lens
Mount Adaptors Included
Over/Under Voltage Protection
RFI/EMI Protection
Reverse Polarity Protection
RoHS Compliant
IP69K Compliant - Dust/Water Ingress
Epoxy Sealed, No Vent
Operating Temp -40 Deg F To +145 Deg F
SAE J575 Compliant - Shock/Vibration
Available In White And Black Housing
Limited Lifetime Warranty
Off Road Use Only

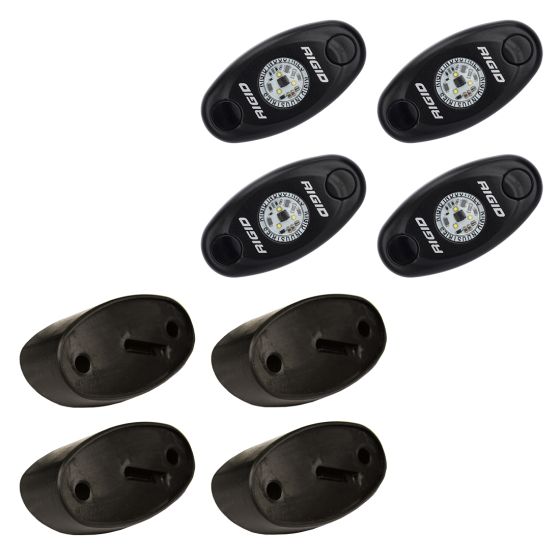

Product comes with
A-Series with 15’ Leads
Distribution Block for Easy Wiring
8’ Wiring Harness
Angled Mounting Pads w/30o Angle
Mounting Hardware
Specifications
| Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | **Peak Beam Ibntensity(cd) | Horizontal Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|
| 400243 | 0.50 | FLOOD | 6 | 0.42 | 339 | 1.5 | 12.3 | 24.6 | 151 | 140 |
Rock Light Kit Installation Instructions (563.82 kB)
