RIGID INDUSTRIES | Revolve Pod with Amber Trim Ring Pair (491613)
SELECT OPTIONS
Description

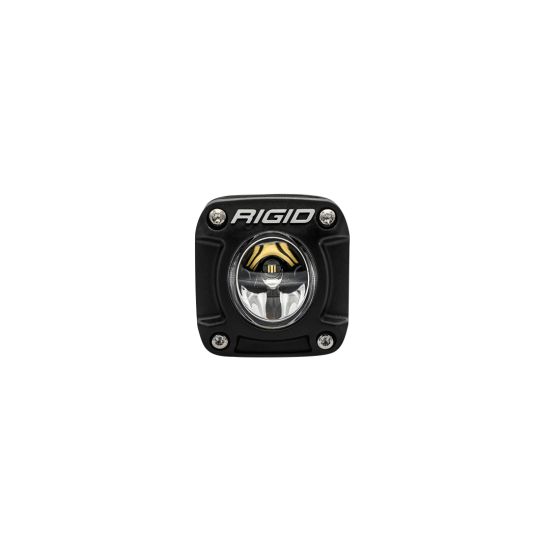

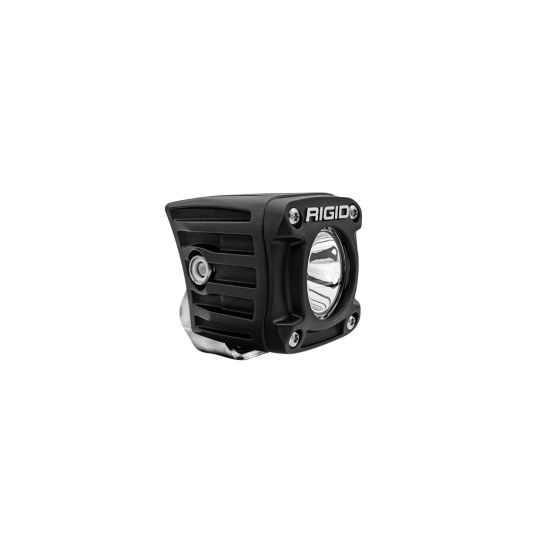

RIGID's Revolve Light Pod is the perfect solution for those who want RIGID's legendary quality in a compact package. The Revolve Light Pod is built with a high-grade aluminum alloy housing and heatsink, and is coated with a two-stage powder coat light texture finish in black, it features an impact resistant nylon bezel that offers an extra layer of protection against road debris and sun exposure. The Revolve Light Pod features a Broad-Spot optic that combines the attributes of a spot and flood beam pattern projecting the perfect amount of light to tackle almost any road or weather condition. The Revolve Light Pod also features a back-lit trim ring available in amber or white that is significantly brighter when compared to other back-lit applications.
Features
Independently Controlled Amber Trim Ring
Black Two-Stage Powder Coat Light Texture Finish
Light Weight, Durable Nylon Bezel
Max-Bright Auxiliary Lighting Trim Ring
Efficient Current Draw for Systems with Limited Power and UTVs
Corrosion Resistant Stainless Steel Chrome Hardware
High Grade Aluminum Alloy Heatsink
Harness And Switch Sold Separately
Limited Lifetime Warranty
Product comes with

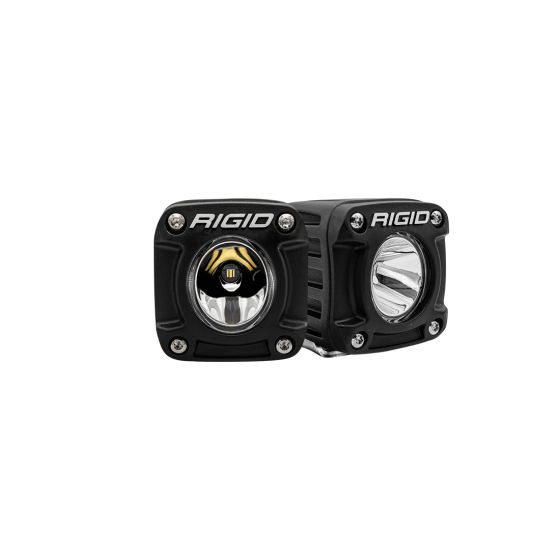

2 Revolve Pod Lights with Amber Trim Ring
Mount Brackets
Mount Hardware
Marketing Pack
Specifications

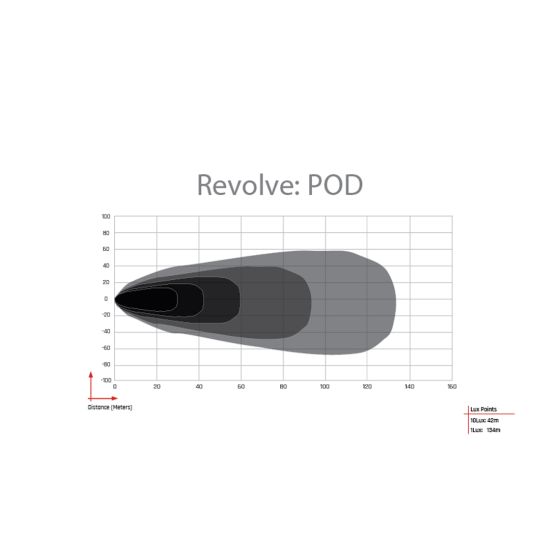

| Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | **Peak Beam Ibntensity(cd) | Horizontal Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2" | 491613 | 0.60 | BROAD SPOT | 22 | 1.4 | 2106 | 179.22 | 133.9 | 267.7 | 17922 | 30.6 |
11-14073-A_RIGID-REVOLVE-INSTALLATION (691.15 kB)
