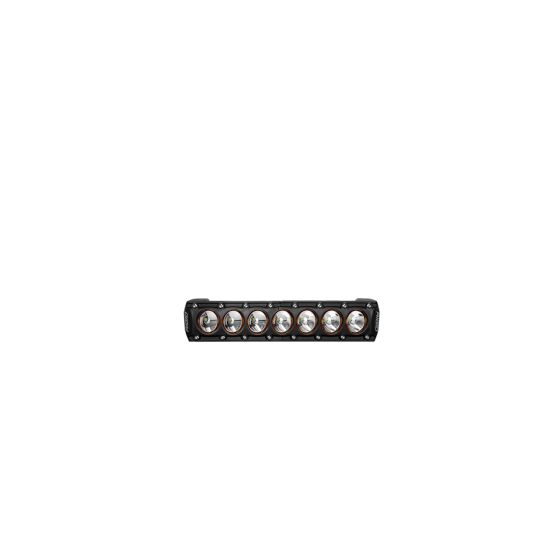

RIGID INDUSTRIES | Revolve 10 Inch Bar with Amber Trim Ring (411613)
SELECT OPTIONS
Description
RIGID's Revolve Light Bar combines RIGID's legendary quality in a sleek compact design. The Revolve Light Bar is built with a high-grade aluminum alloy housing and heatsink, and is coated with a durable textured powder-coat finish in black, it features an impact resistant nylon bezel that offers an extra layer of protection against road debris and sun exposure. The Revolve Light Bar features Broad-Spot optics that combine the attributes of a spot and flood beam pattern projecting the perfect amount of light to tackle almost any road or weather condition. The Revolve Light Bar comes in 10, 20, 30, 40, and 50 Inch sizes and features back-lit trim rings available in amber or white that are significantly brighter when compared to other back-lit applications.
Features
Independently Controlled Amber Trim Ring
Textured Black Powder Coat Finish
Light Weight, Durable Nylon Bezel
Max-Bright Auxiliary Lighting Trim Ring
Efficient Current Draw for Systems with Limited Power and UTVs
Corrosion Resistant Stainless Steel Chrome Hardware
High Grade Aluminum Alloy Heatsink
Compatible With Original E-Series Mounting Dimensions
Harness And Switch Sold Separately
Limited Lifetime Warranty
Product comes with
10 Inch Revolve Bar with Amber Trim Ring
Mount Brackets
Mount Hardware
Marketing Pack
Specifications

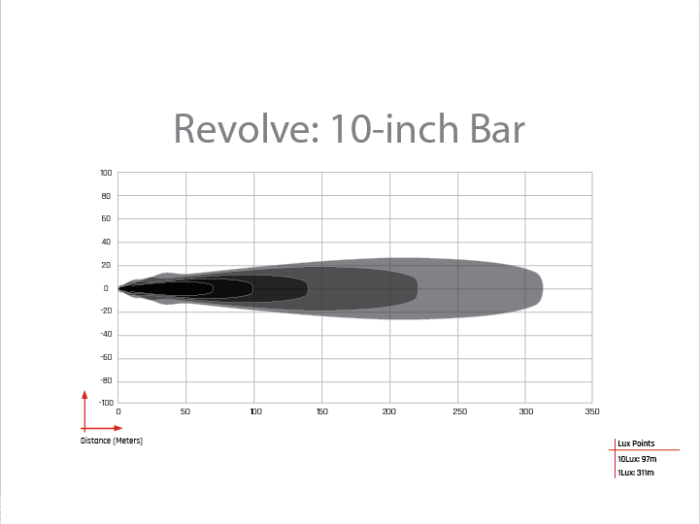

| Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | **Peak Beam Ibntensity(cd) | Horizontal Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10" | 411613 | 2.30 | BROAD SPOT | 47 | 2.9 | 5082 | 970.44 | 311.5 | 623 | 97044 | 19.9 |
11-14073-A_RIGID-REVOLVE-INSTALLATION (691.15 kB)
