RIGID INDUSTRIES | RDS-Series Pro 20" Spot Midnight (882213BLK)
SELECT OPTIONS
Description

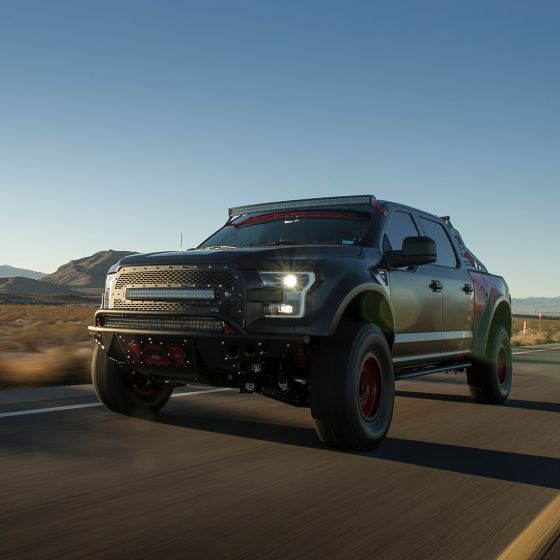

RIGID revolutionized the lighting industry with the introduction of the RDS-Series, and recent advancements in LED technology have made them more powerful than ever before with the RDS-Series PRO, Professional Race Output. With an improved output of up to 70% more raw lumens, the RDS-Series PRO projects more usable light exactly where it’s needed on the road ahead. By taking an E-Series light bar and treating it to a gentle arc, the patented RDS-Series PRO provides a sleek, integrated look with the curved windshields and bumpers on today’s trucks and SUVs. The curve is for more than just looks, it is also functional: the arc of the RDS-Series PRO light bars provides a wider spread of LED light, providing unmatched lighting coverage with a single light bar. RDS-Series PRO also includes updated branding and blacked-out circuit boards for a more refined look. It’s all about stealth with RIGID’s new Midnight Optics. Utilizing our exclusive spot optic with a transparent black enamel coating, our Midnight Optics take the subtle “blacked out” look seriously featuring black oxide hardware. The Midnight Optics enable RIGID to “disappear” during the day while still providing powerful LED technology to light up the night. Thanks to improved LED technology, the Midnight Edition now offers more light output than ever before. Midnight Optics are available in E-Series, RDS-Series, D-Series, SR-Series, SR-Q Series and SR-M Series.
Features
Translucent Black Enamel on our Patented Hybrid Spot Optics
All Black Assembly Hardware
Special Black Polymer Coated Circuit Board
50,000 Plus Hour Lifespan
9-36 V DC
Durable UV Resistant Powder Coat
High-Grade Aluminum Alloy
Integrated Thermal Management System
Impact Resistant Polycorbonate Lens
Over/Under Voltage Protection
RFI/EMI Protection
Reverse Polarity Protection
RoHS Compliant
IP68 Compliant - Dust/Water Ingress
Operating Temp -40 Deg F To +145 Deg F
SAE J575 Compliant - Shock/Vibration
Limited Lifetime Warranty
Off Road Use Only
Product comes with
2 Black Powder Coated, L-shape brackets
Open Leads, No Connector
Harness w/Switch
Specifications
Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | **Peak Beam Ibntensity(cd) | Horizontal Beam Angle |
---|---|---|---|---|---|---|---|---|---|---|---|
20" | 882213BLK | 6.31 | SPOT | 202 | 14.43 | 25080 | 1897.2 | 435.6 | 871.1 | 189719 | 26.7 |
