RIGID INDUSTRIES | Radiance+ SR-Series 50 Inch RGBW Lightbar (250603)
SELECT OPTIONS
Description
The RIGID Radiance Plus SR-Series single row LED light bar is the perfect solution for those who want RIGID's legendary quality at a level everyone can attain. Utilizing RIGID's LED technology, the Radiance Plus light bars feature the same superior build quality as the rest of RIGID's lighting products, providing reliable and efficient lighting on demand. The Radiance Plus SR-Series LED light bars are built with the same sleek low-profile high-grade aluminum alloy housing as the legendary SR-Series, but that's where the visual similarities end. Inside, the Radiance SR-Series is feature-packed, with a black exposed circuit board, optimized forward projecting Broad Spot optics, prominent RIGID branding plates, and RGB LEDs that provide the user with the ability to toggle between eight available back light options with the flip of a switch: Red, Green, Blue, Light Blue, Purple, Amber, White or Rotating. Available in 10, 20, 30, 40 and 50 inch lengths, and fits all existing SR-Series mounting options. The RIGID Radiance Plus SR-Series light bar is for the customer who wants a truly custom look, making it easier than ever to Own The Night.
Features
Same Construction As RIGIDs SR-Series
Fits All SR-Series Light Covers And Mounts
Black Exposed Printed Circuit Board

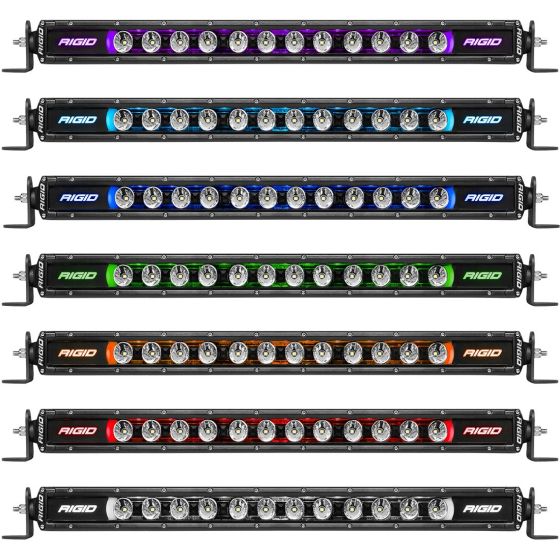

8 Back Lighting Options: Red, Green, Blue, Light Blue, Purple, Amber, White Or Rotating
10 Year Warranty
9-15 V DC
Harness And Switch Sold Separately, Part Number 40200
Back Lighting Independently Controlled Using Switch Logic
Black Powder Coat Finish
Pressure Equalizing Vent
IP68 Compliant - Dust/Water Ingress
High Grade Aluminum Alloy Housing And Heat Sink
Over/Under Voltage Protection
High Impact Polycarbonate Lens
Mounting Brackets Included
RFI/EMI Protection
RoHS Compliant
Off Road Use Only
Product comes with
Light Bar
Mounting Hardware

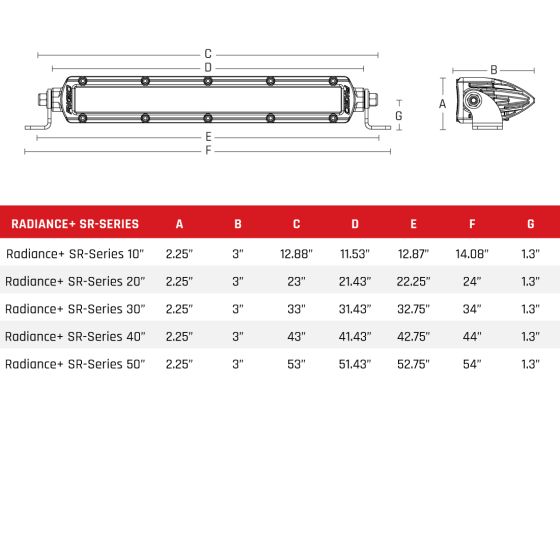

Specifications
Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | **Peak Beam Ibntensity(cd) | Horizontal Beam Angle |
---|---|---|---|---|---|---|---|---|---|---|---|
50" | 250603 | 10.80 | BROAD SPOT | 262 | 19.1 | 29376 | 3404.5 | 565.45 | 1166.95 | 340450 | 24.8 |
Radiance Plus SR-Series Installation Instructions (274.50 kB)
