RIGID INDUSTRIES | Radiance+ Scene RGBW Surface Mount | Pair (682053)
SELECT OPTIONS
Description
Get ready to light the scene in style. The Radiance+ RGBW Pod Scene Light is built with the same high-grade aluminum alloy housing as our D-Series lights. The RGBW back-lights provide you the ability to toggle between eight available backlight options with the flip of a switch: red, green, blue, light blue, purple, amber, white, or demo mode. Utilizing the latest in LED technology and incorporating a thermally optimized heat sink, the Radiance+ RGBW Pod Scene Light provides up to 100 degrees of horizontal spread for maximum coverage. Scene lighting provides a clear, bright light with minimal amp draw. The Radiance+ RGBW Pod Scene Light is feature-packed, with a black exposed printed circuit board, and forward projecting optics that optimize the light output. The RIGID Radiance+ RGBW Pod Scene delivers a stylish approach to scene lighting.
Features

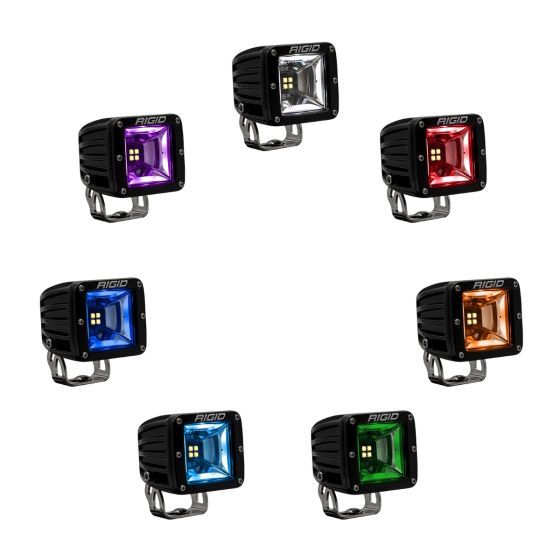

8 Back Lighting Options: Red, Green, Blue, Light Blue, Purple, Amber, White Or Demo Mode
Back Lighting Independently Controlled Using Switch Logic
Fits All D-Series Light Covers And Mounts
Black Exposed Printed Circuit Board
10 Year Warranty
9-15 V DC
Black Powder Coat Finish
Pressure Equalizing Vent
IP68 Compliant - Dust/Water Ingress
High Grade Aluminum Alloy Housing And Heat Sink
Over/Under Voltage Protection
High Impact Polycarbonate Lens
Mounting Brackets Included
RFI/EMI Protection
RoHS Compliant
Off Road Use Only
Product comes with
Two Surface Mount Scene Radiance+ RGBW light pods
mounting brackets
media pack
Specifications
| Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | **Peak Beam Ibntensity(cd) | Horizontal Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3" | 682053 | 1.30 | SCENE LIGHT | 24 | 1.7 | 2970 | 22 | 50 | 93 | 2166 | 100 |
Radiance Plus RGBW-Series Installation Instructions (673.81 kB)
