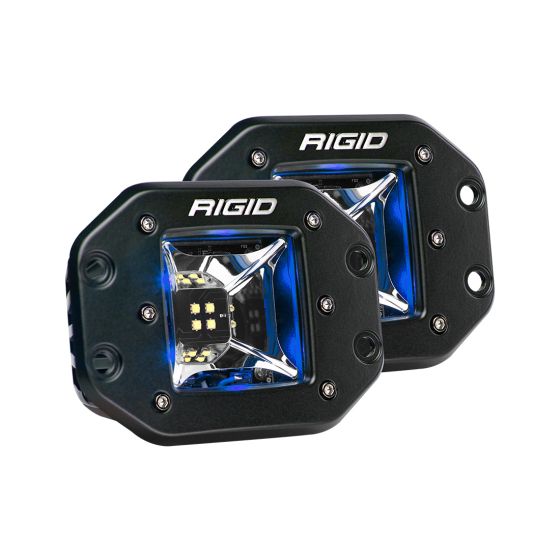

RIGID INDUSTRIES | Radiance Scene Blue Backlight Flush Mount Pair (68211)
SELECT OPTIONS
Description
The all-new RIGID Radiance Pod Scene Light is the perfect solution for those who want RIGID’s legendary quality at a level everyone can attain. The Radiance Pod Scene Light is built with the same high-grade aluminum alloy housing as our D-Series. Utilizing the latest in LED technology and incorporating a thermally optimized heat sink, the Radiance Pod Scene Light provides up to 100 degrees of horizontal spread for maximum coverage. Scene lighting provides clear, bright light with minimal amp draw. The Radiance Pod Scene Light is feature-packed, with a black exposed printed circuit board, forward projecting optics that optimize the light output and back-lighting available in white, green, amber, blue or red. The RIGID Radiance Pod Scene is for the customer who wants a truly custom look for any area lighting needs.
Features
D-Series Construction And Durability
Fits All D-Series Light Covers And Mounts
Black Exposed Printed Circuit Board
100 Degree Horizontal Spread
10 Year Warranty
9-15 V DC
Independently Controlled Back Lighting Available In White, Red, Blue, Or Amber
Harness And Switch Sold Separately (#36360)
Black Powder Coat Finish
Pressure Equalizing Vent
IP68 Compliant - Dust/Water Ingress
High Grade Aluminum Alloy Housing And Heat Sink
Patented Optics
High Impact Polycarboanate Lens
Mounting Brackets Included
RFI/EMI Protection
RoHS Compliant
Over/Under Voltage Protection
Specifications
| Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | Horizontal Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|
| 3"X3" | 68211 | 1.24 | SCENE LIGHT | 30 | 2 | 2970 | 22 | 50 | 93 | 100 |
Radiance Pod Scene Installation Instructions (802.38 kB)
