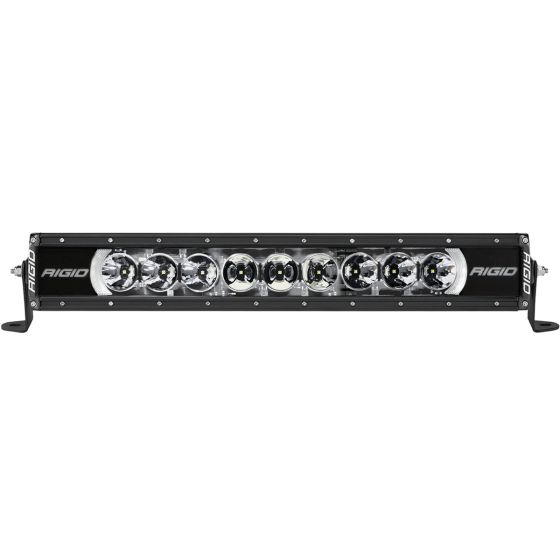

RIGID INDUSTRIES | Radiance+ 20 Inch RGBW Light Bar (220053)
SELECT OPTIONS
Description

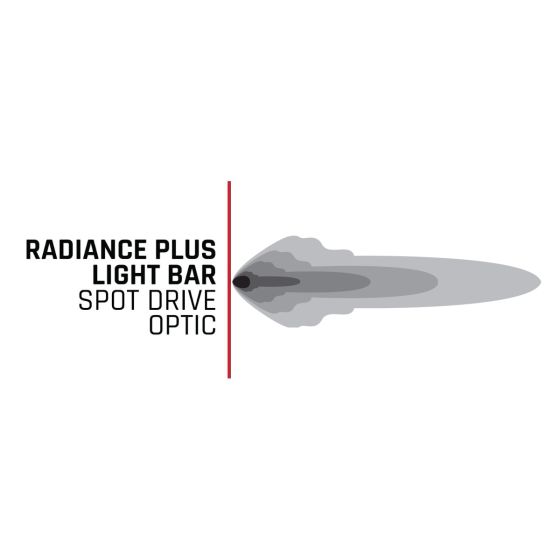

The stylish versatility of the RIGID Radiance light bars just got better. Now introducing Radiance+ RBGW light bars. The latest addition to the Radiance light family provides you with the ability to toggle between eight available backlight options with the flip of a switch: red, green, blue, light blue, purple, amber, white, or demo mode. The RIGID Radiance+ RGBW bars are built with the same high-grade aluminum alloy housing as RIGID's legendary E-Series but include a stylish color-changing backlight. Inside, the Radiance+ RGBW bars are feature-packed, with a black exposed circuit board, optimized forward projecting Spot Drive optics that combine the attributes of a spot and a drive beam pattern. Available in 10, 20, 30, 40, and 50 Inch sizes, the Radiance+ RGBW Lights Bars take the customization of your vehicle to the next level. Own The Night in style with Radiance+ RBGW lighting.
Features

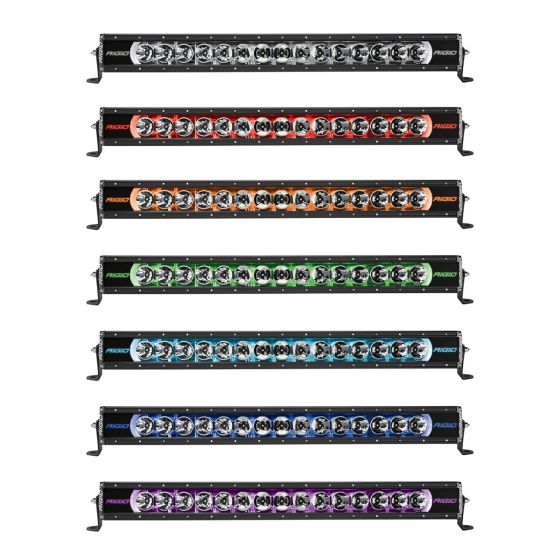

8 Back Lighting Options: Red, Green, Blue, Light Blue, Purple, Amber, White Or Demo Mode
Back Lighting Independently Controlled Using Switch Logic
Fits All E-Series Light Covers And Mounts
Black Exposed Printed Circuit Board
10 Year Warranty
9-15 V DC
Black Powder Coat Finish
Pressure Equalizing Vent
IP68 Compliant - Dust/Water Ingress
High Grade Aluminum Alloy Housing And Heat Sink
Over/Under Voltage Protection
High Impact Polycarbonate Lens
Mounting Brackets Included
RFI/EMI Protection
RoHS Compliant
Off Road Use Only
Product comes with
20 Inch Radiance+ RGBW light bar
Harness
Mounting brackets
Media pack
Specifications
| Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | **Peak Beam Ibntensity(cd) | Horizontal Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20" | 220053 | 6.10 | SPOT DRIVE | 76 | 5.4 | 7128 | 1295.36 | 359.9 | 719.8 | 129536 | 16 |
Radiance Plus RGBW-Series Installation Instructions (673.81 kB)
