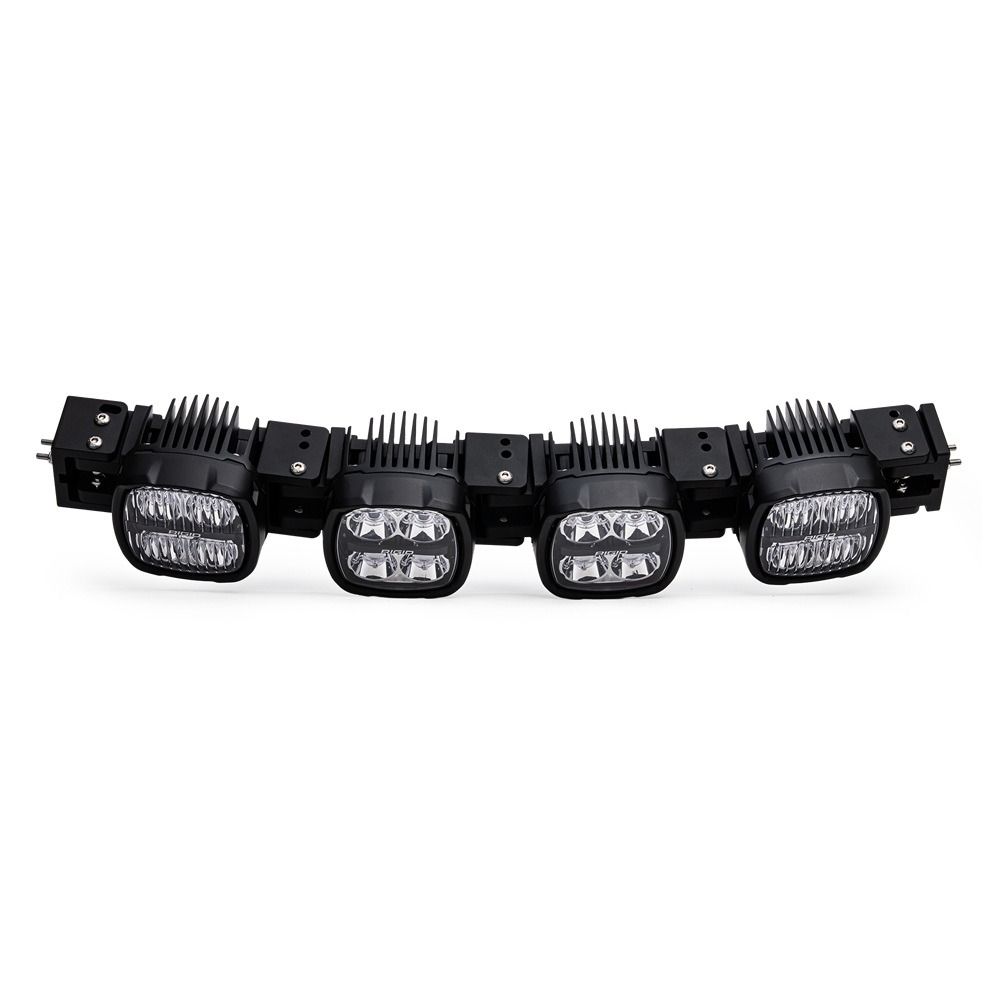

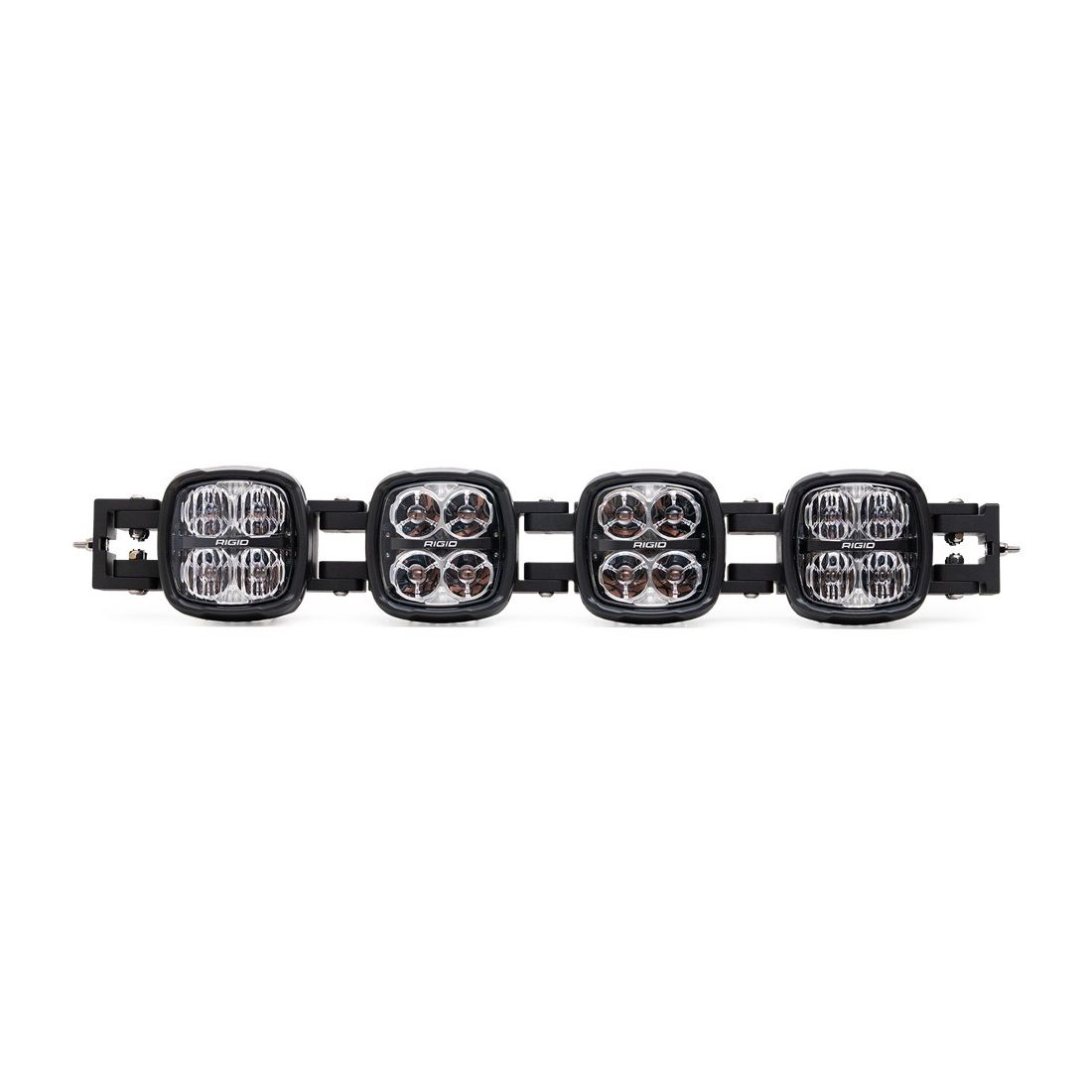

RIGID INDUSTRIES | Phoenix 30 Inch Connect Bar (168242)

Features

Peak Performance: The Phoenix 30" Connect combines Phoenix 5" light pods with billet aluminum links to create a durable, modular light bar built for demanding trails.
Phoenix Connect: The 30" Connect configuration includes four Phoenix 5" pods, with two Spot and two Drive beam patterns, delivering balanced forward projection and wide coverage with RIGID tough performance.

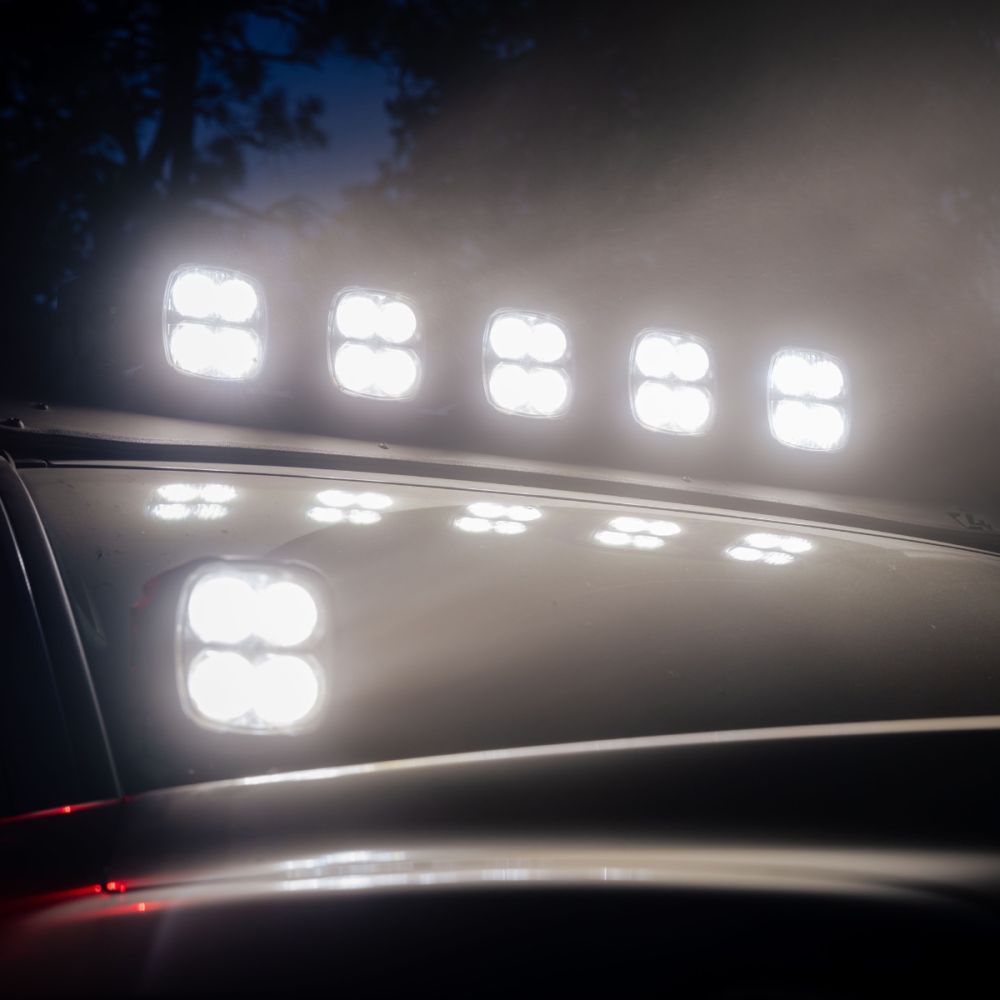

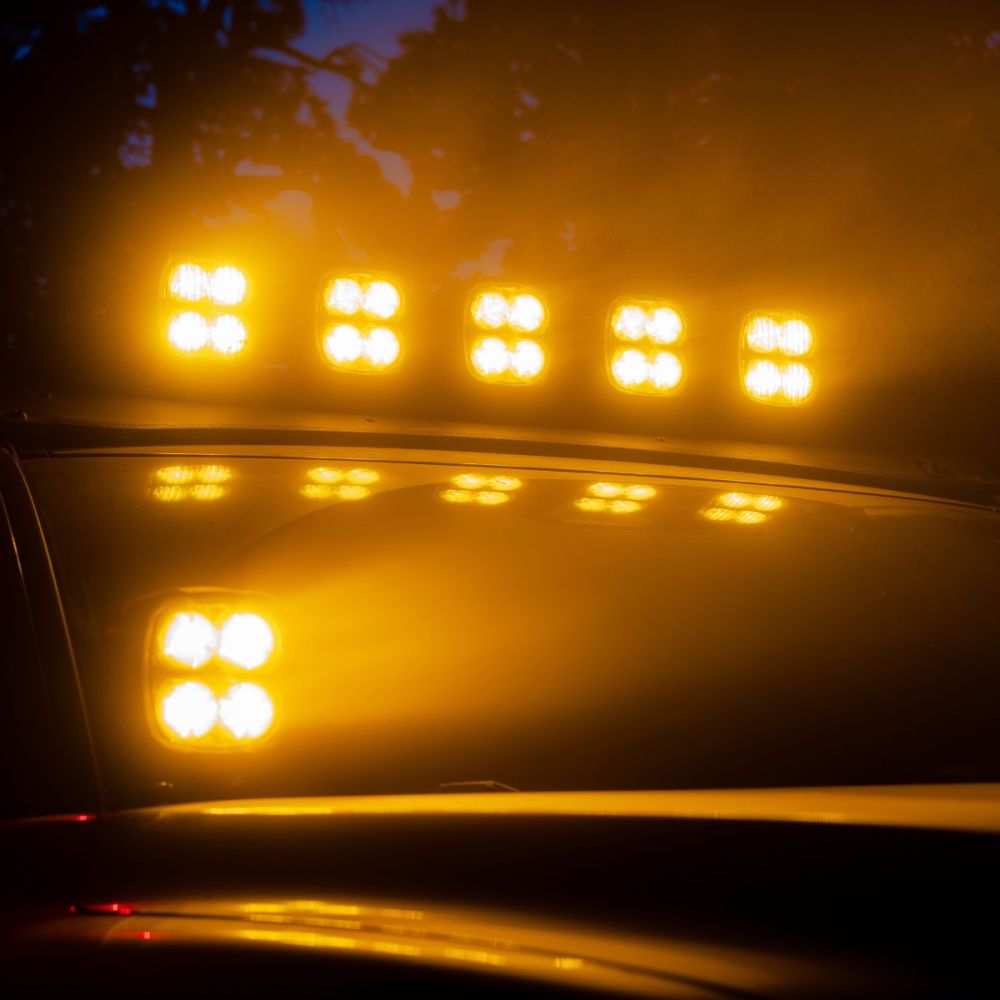

Amber to White: Switch between 5 color modes, allowing drivers to instantly switch between Cool White, Natural, Full Power, Warm, and Amber at the push of a button. No stopping and no leaving the cab.
3 Selectable Power Modes: The Phoenix lineup offers three selectable Power Modes to optimize a vehicle’s power system with a magnet switch.
Cast Aluminum Housing: To withstand the most brutal off-road conditions
Protective Bezel: Cast aluminum bezel designed for lens protection and aerodynamics
Fortified Against The Elements: IP68+ related - sealed from water and dust

Specifications

Product Name: Phoenix 30 Inch Connect Bar

SKU: 168242

UPC: 849774037207

Size: 30"

Light Shape: POD

Mount Type: SURFACE MOUNT

Beam Category: SPOT DRIVING COMBO

Voltage Range: 9V - 36V

Current Draw at 14V (a): Specs coming soon

Lux @10m: Specs coming soon

Beam Distance @ 1 LUX: Specs coming soon

Beam Distance @ .25 LUX: Specs coming soon

Peak Beam Intensity(cd): Specs coming soon

Horizontal Beam Angle: Specs coming soon

Vertical Beam Angle: Specs coming soon

Dimensions

Product Height: 4.375 in

Product Width: 31.5 in

Product Depth: 5.25 in

Product Weight: 22.4 lbs

What's In The Box

Pre-Assembled Light Bar

(2) 5" Phoenix with Spot Lens

(2) 5" Phoenix with Drive Lens

Mounting Hardware

Light Assembly Harness

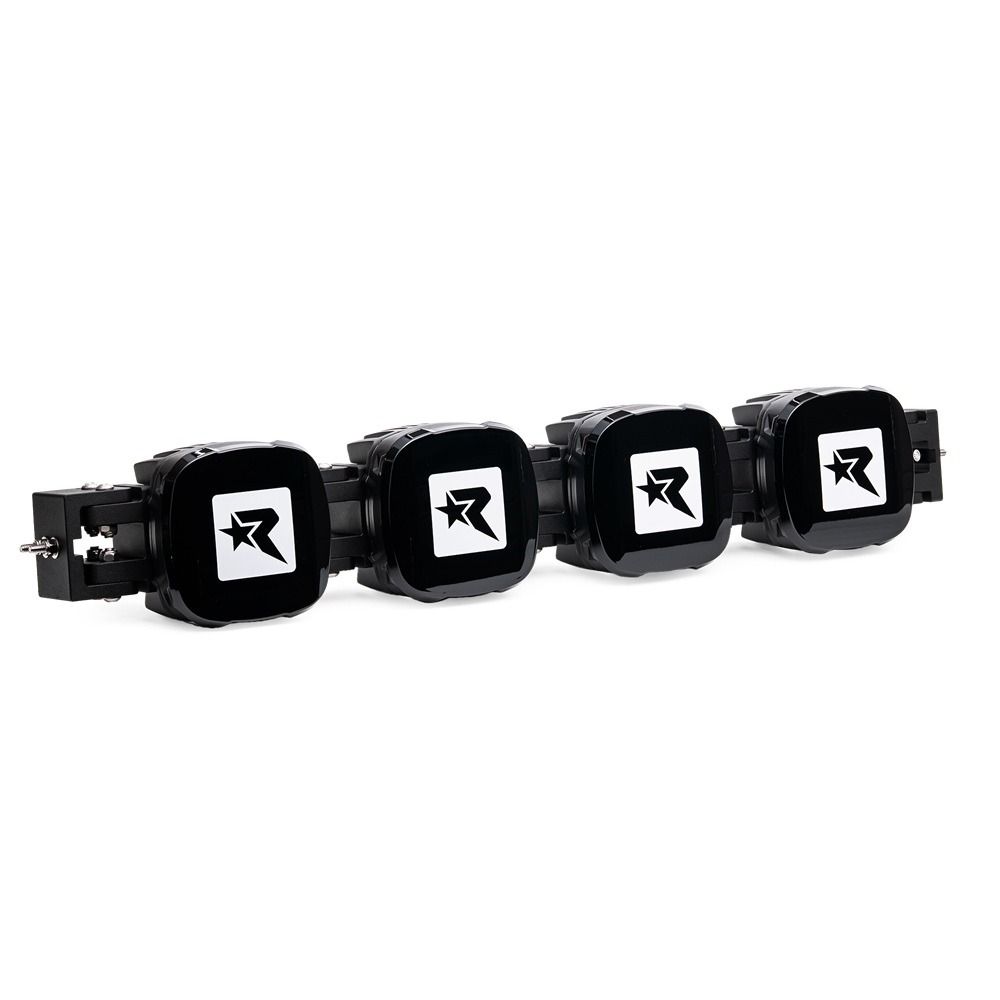

(4) Black Light Covers

*Harness sold separately

*L-shaped mounting brackets sold separately

Spot Lens Beam
Designed for long distance visibility with a narrow 10° beam. Perfect for high-speed driving in open terrain, it helps you spot obstacles far ahead. Swappable lens compatible on Phoenix lights.

Driving Lens Beam
Balanced 45° beam for real-world driving. Combines distance and width for versatile trail and overland use. Swappable lens compatible on Phoenix lights.
