RIGID INDUSTRIES | Ignite Flood Diffused Backup Kit Surface Mount (20541)
SELECT OPTIONS
Description

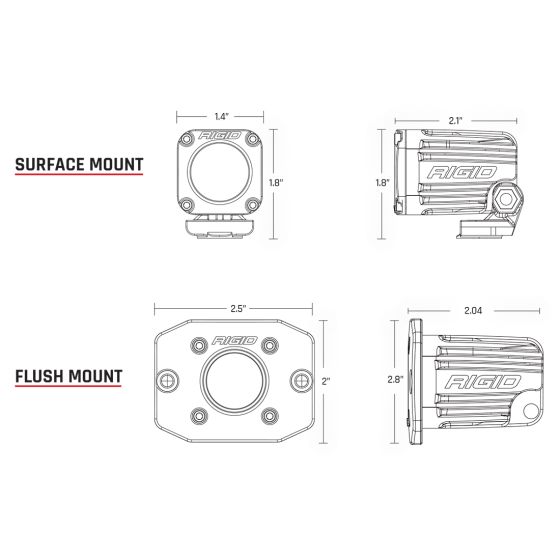

The Ignite is the smallest, most versatile light in RIGID's product line! Measuring approximately 1.4 x 1.4 x 2 Inches, this flexible light packs 1000 raw lumens using Spot, Flood or Diffused beam patterns; perfect for applications where short range light output is required. Designed with a Go-Pro style mounting bracket which mates with an array of off the shelf Go-Pro mounts; the Ignite provides you with limitless mounting options. The compact housing makes the RIGID Ignite a great choice for auxiliary lighting on cars and trucks, motorcycles, UTVs, and even marine applications. Low current draw makes this light adaptable to almost any action sport and is the ultimate lighting solution.
Features
RIGIDs Smallest Forward Projecting Light
Unlimited Mounting Options; Go-Pro™® Style Mounting Bracket
Low Minimum Voltage: 6-28 VDC
Available in Spot, Flood and Diffused Beam Patterns
2 Wire Open Lead For Any 7-24 V Application
50,000 Plus Hour Lifespan
IP68 Compliant - Dust/Water Ingress
Durable UV Resistant Powder Coat
Impact Resistant Polycorbonate Lens
Over/Under Voltage Protection
RFI/EMI Protection
Smallest RIGID Led Light - 1 Inch x 1 Inch
Operating Temp -40 Deg F To +145 Deg F
SAE J575 Compliant - Shock/Vibration
Available In White And Black Housing
Pressure Equalizing Vent
Limited Lifetime Warranty
Off Road Use Only
Product comes with
2 Ignite Lights (Surface or Flush Mount)
2 Sets of Hardware
48” Wire Leads
2 Mounting Brackets (Surface) Only)
Specifications
| Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | **Peak Beam Ibntensity(cd) | Horizontal Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|
| 20541 | 0.30 | DIFFUSED | 12 | 0.85 | 1000 | 9 | 29 | 60 | 885 | 55.8 |
Ignite Back-Up Light Kit Surface Mount Installation Instructions (56.52 kB)
