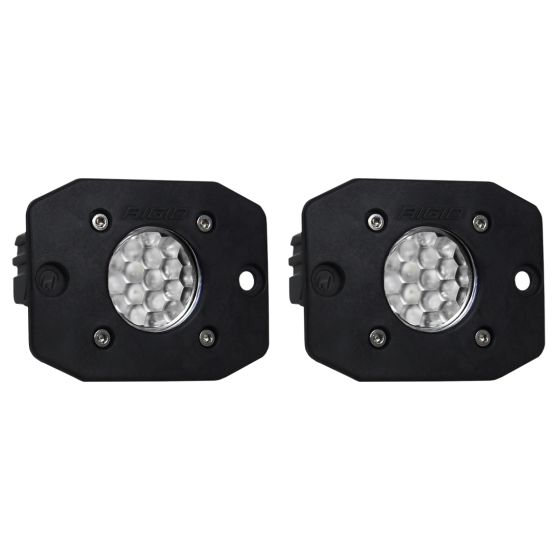

RIGID INDUSTRIES | Ignite Flood Diffused Backup Kit Flush Mount (20641)
SELECT OPTIONS
Description
The Ignite is the smallest, most versatile light in RIGID product line! This flexible light packs 1000 raw lumens using Spot, Flood or Diffused beam patterns. The Ignite provides you with limitless mounting options. The compact housing makes the RIGID Ignite a great choice for auxiliary lighting on cars and trucks, motorcycles, UTVs, and even marine applications. Low current draw makes this light adaptable to almost any action sport and is the ultimate lighting solution.
Features
RIGIDs Smallest Forward Projecting Light
Easy Install - Uses 1.75 Inch Hole Saw
Low Minimum Voltage: 6-28 VDC
Available in Spot, Flood and Diffused Beam Patterns
2 Wire Open Lead For Any 7-24 V Application
50,000 Plus Hour Lifespan
IP68 Compliant - Dust/Water Ingress
Durable UV Resistant Powder Coat
Impact Resistant Polycorbonate Lens
Over/Under Voltage Protection
RFI/EMI Protection

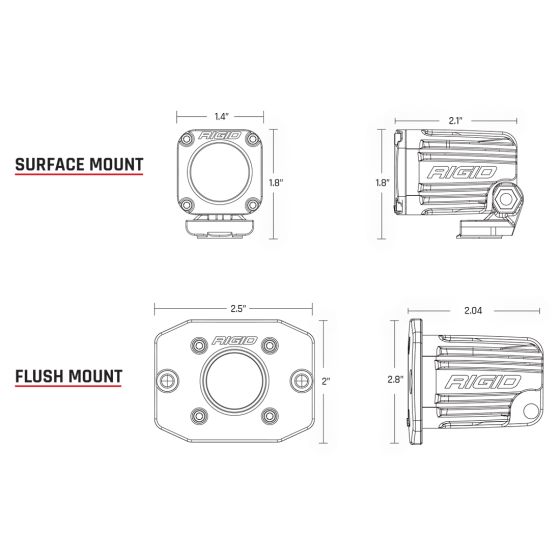

Smallest RIGID Led Light - 1 Inch x 1 Inch
Operating Temp -40 Deg F To +145 Deg F
SAE J575 Compliant - Shock/Vibration
Available In White And Black Housing
Pressure Equalizing Vent
Limited Lifetime Warranty
Off Road Use Only
Product comes with
2 Ignite Lights (Surface or Flush Mount)
2 Sets of Hardware
48” Wire Leads
2 Mounting Brackets (Surface) Only)
Specifications
| Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | **Peak Beam Ibntensity(cd) | Horizontal Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1"X2" | 20641 | 0.30 | FLOOD DIFFUSED | 12 | 0.85 | 1000 | 9 | 29 | 60 | 885 | 55.8 |
Ignite Back-Up Light Kit Flush Mount Installation Instructions (56.53 kB)
