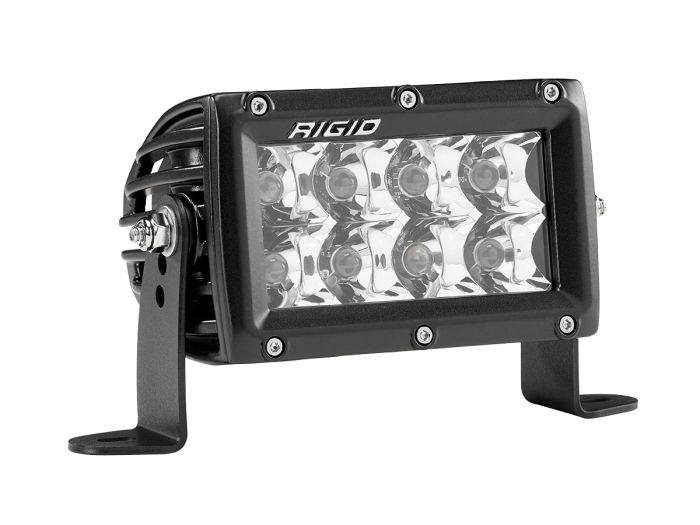

RIGID INDUSTRIES | E-Series Pro 4 Inch Spot Black (104213)
SELECT OPTIONS
Description
The E-Series is one of RIGID's most versatile, all-around lighting solutions, and recent enhancements in LED technology delivering up to 111 percent more raw lumens than ever before with the E-Series PRO. Among RIGID's most popular product lines, the E-Series PRO has recently benefited from several upgrades to improve both looks and performance. Plus, prominent RIGID branding and blacked-out circuit boards give the E-Series PRO a refined look. Available with your choice of optics, the E-Series features a host of beam options, including Spot, Flood, Driving, Hyperspot, Diffused, Driving/Spot combo, Spot/Flood combo, Spot/Hyperspot combo, and Midnight Edition. These and other innovations make it one of the brightest and most efficient LED light bars on the market. The E-Series was born in off-road, but its versatility makes it well suited for use with power sports, marine, general automotive and even first responder applications. Own The Night with RIGID's E-Series double row LED light bar.
Features
50,000 Plus Hour Lifespan
9-36 V DC
Durable UV Resistant Powder Coat
High-Grade Aluminum Alloy
Integrated Thermal Management System
Impact Resistant Polycorbonate Lens
Over/Under Voltage Protection
RFI/EMI Protection
Reverse Polarity Protection
RoHS Compliant
IP68 Compliant - Dust/Water Ingress
Operating Temp -40 Deg F To +145 Deg F
SAE J575 Compliant - Shock/Vibration
Available In White And Black Housing
Pressure Equalizing Vent
Waterproof Connector (Exclusions Apply)
Limited Lifetime Warranty
Off Road Use Only
Product comes with
BLACK HOUSING ONLY
2 Black Powder Coated, L-shape brackets
Deutsch Connector (4”-10”)
Open Leads, No Connector (20”-50”)
Harness w/Switch
WHITE HOUSING ONLY
2 Stainless Steel, L-shape brackets
Deutsch Connector (4”-10”)
Open Leads, No Connector (20”-50”)
Harness w/Switch
Specifications
Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | Horizontal Beam Angle |
---|---|---|---|---|---|---|---|---|---|---|
4" | 104213 | 2.01 | SPOT | 61 | 4.36 | 6336 | 1396.54 | 373.7 | 747.4 | 16.5 |
E-Series PRO and SR-Series PRO Installation Instructions (832.92 kB)
