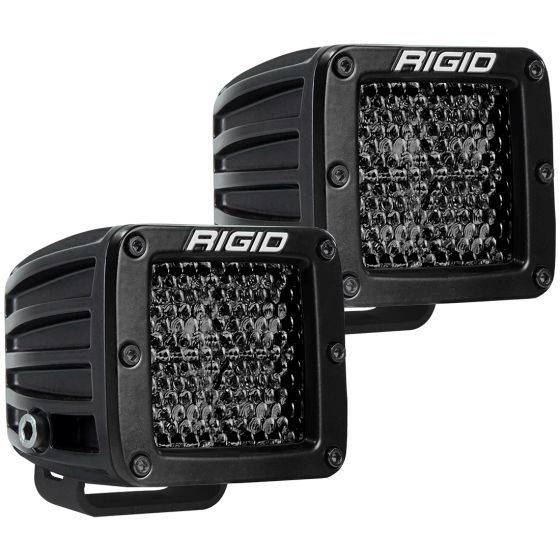

RIGID INDUSTRIES | D-Series Pro Spot Diffused Midnight Surface Mount | Pair (202513BLK)
SELECT OPTIONS
Description
It is all about stealth with RIGID's Midnight Edition LED lights. Available in one of RIGID's most popular lights, the D-Series pods with Midnight Optics enable the lights to virtually disappear during the day while still providing powerful LED technology to light up the night. Own The Night with RIGID's D-Series Midnight Edition original LED pod lights
Features
Translucent Black Enamel on our Patented Hybrid Spot Optics
All Black Assembly Hardware
Special Black Polymer Coated Circuit Board
50,000 Plus Hour Lifespan
9-36 V DC
Durable UV Resistant Powder Coat
High-Grade Aluminum Alloy
Integrated Thermal Management System
Impact Resistant Polycorbonate Lens
Over/Under Voltage Protection
RFI/EMI Protection
Reverse Polarity Protection
RoHS Compliant
IP68 Compliant - Dust/Water Ingress
Operating Temp -40 Deg F To +145 Deg F
SAE J575 Compliant - Shock/Vibration
Limited Lifetime Warranty
Off Road Use Only
Product comes with
Mounting Hardware
Black Powdercoat, U-Shape Bracket (Excludes FM)
Harness w/Switch
Deutsch Connector
Specifications
| Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | **Peak Beam Ibntensity(cd) | Horizontal Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3"X3" | 202513BLK | 1.10 | SPOT DIFFUSED | 30 | 2.1 | 1411 | 9.13 | 30.2 | 60.4 | 913 | 74.6 |
D-Series, D-SS Series, and SR-Q Series Installation Instructions (204.79 kB)
