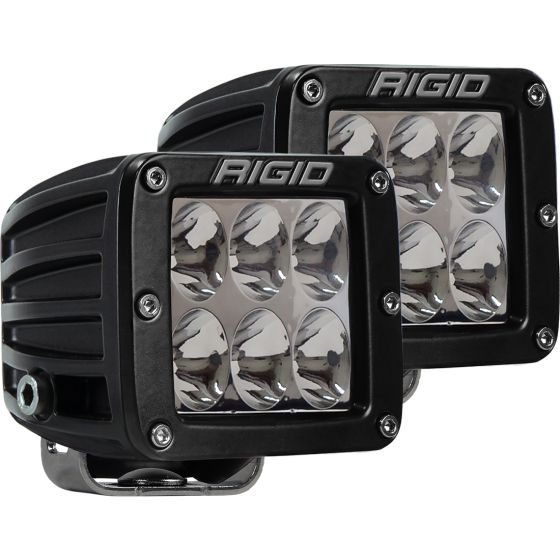

RIGID INDUSTRIES | D-Series PRO Specter Driving Surface Mount Black 2 Lights (502313)
SELECT OPTIONS
Description

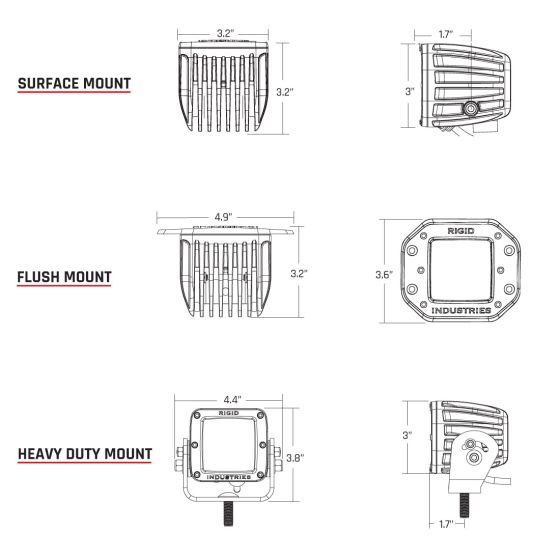

The D-Series has always been the most versatile compact lighting package on the market today. RIGID has just made it professional grade with the D-Series PRO, which offers more light output than ever before thanks to recent advancements in LED technology. Available with a variety of mounting options, including surface, flush, or heavy-duty, the D-Series PRO can be utilized for virtually any lighting application. Measuring just 3” x 3”, the D-Series PRO packs a powerful punch up to 102% more raw lumens depending on the optics chosen. They feature the same superior build quality as the rest of RIGID’s lighting products, providing reliable and efficient lighting on demand.
Features
50,000 Plus Hour Lifespan
9-36 V DC
Durable UV Resistant Powder Coat
High-Grade Aluminum Alloy
Integrated Thermal Management System
Impact Resistant Polycorbonate Lens
Over/Under Voltage Protection
RFI/EMI Protection
Reverse Polarity Protection
RoHS Compliant
IP68 Compliant - Dust/Water Ingress
Operating Temp -40 Deg F To +145 Deg F
SAE J575 Compliant - Shock/Vibration
Pressure Equalizing Vent
Waterproof Connector (Exclusions Apply)
Limited Lifetime Warranty
Off Road Use Only
Product comes with
Mounting Hardware
Stainless Steel, U-Shape Bracket (Excludes FM)
Vibration Isolators (Heavy Duty Surface Only)
Harness w/Switch
Deutsch Connector
Specifications
| Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | **Peak Beam Ibntensity(cd) | Horizontal Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3"X3" | 502313 | 2.30 | DRIVING | 44 | 3.14 | 4752 | 231.48 | 152.1 | 304.3 | 23148 | 51 |
D-Series, D-SS Series, and SR-Q Series Installation Instructions (204.79 kB)
