RIGID INDUSTRIES | A-Series High Power White 1 Light Black housing (480093)
SELECT OPTIONS
Description

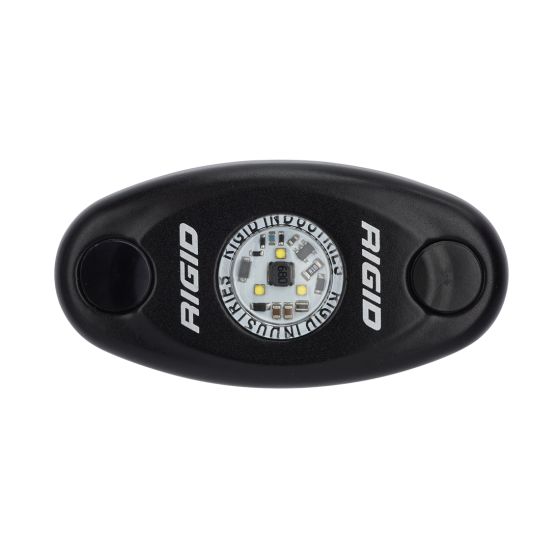

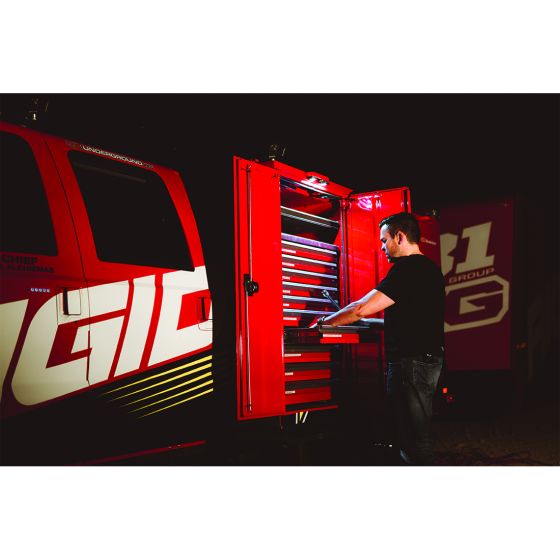

RIGID's A-Series LED Accessory Light is the universal light that can be used just about anywhere. Vehicle cabs, boat cabins, work vehicle beds, under the hood of a vehicle and trunks are just a few of the places where the A-Series can provide handy bright lighting in otherwise dark environments. The A-Series has a durable compact aluminum housing and includes rubber flat-mount, a two way pad for flat mounting, and radius tube-mount adapters, which provide side or bottom wire exits to accommodate different applications. It is lightweight, waterproof, and available in a variety of different LED colors in high and low power versions. The versatility of the A-Series makes it an easy installation on almost anything.
Features
50,000 Plus Hour Lifespan
10-28 V DC
Durable UV Resistant Powder Coat
High-Grade Aluminum Alloy
Integrated Thermal Management System
Impact Resistant Polycorbonate Lens
Mount Adaptors Included
Over/Under Voltage Protection
RFI/EMI Protection
Reverse Polarity Protection
RoHS Compliant
IP69K Compliant - Dust/Water Ingress
Epoxy Sealed, No Vent
Operating Temp -40 Deg F To +145 Deg F
SAE J575 Compliant - Shock/Vibration
Available In White And Black Housing
Limited Lifetime Warranty
Off Road Use Only
Product comes with
Mounting Hardware
2 Mounting Hole Rubber Plugs1 Adhesive Primer
1 VHB Mount Tape
1 Flat Mount Adapter
1 Tube Mount Adapter
3ft. Wire Extension
2-Wire Open Lead, No Connector
Specifications
| Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | **Peak Beam Ibntensity(cd) | Horizontal Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|

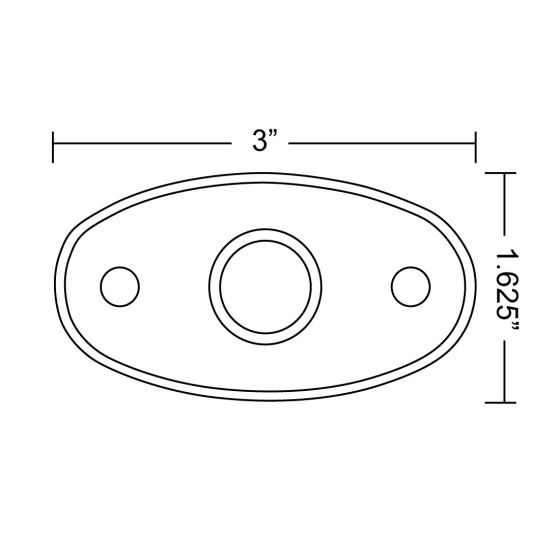

| 2"X3" | 480093 | 0.13 | FLOOD | 6 | 0.3 | 600 | 1.75 | 13.2 | 26.5 | 175 | 149.8 |
Rock Light Kit Installation Instructions (563.82 kB)
