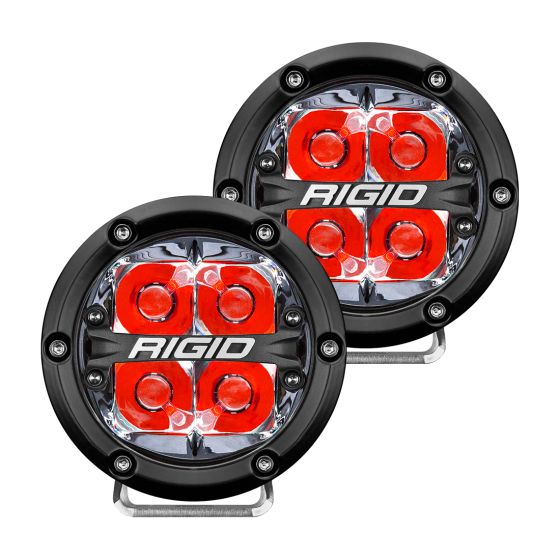

RIGID INDUSTRIES | 360-Series 4 Inch Led Off-Road Spot Optic with Red Backlight | Pair (36112)
SELECT OPTIONS
Description
The 360-Series family of LED lights has optimized beam patterns that project up to 8,600 raw lumens and are protected by an aluminum housing, features a blacked-out circuit board, prominent RIGID branding, and limited lifetime warranty making them the most robust and useful round lights on the market. Choose between a 4-inch or 6-inch light, preferred backlight color: red, white, blue or amber, and beam pattern available from 17 degrees to 60 degrees for a customized experience and look. RIGID's 360-Series round lights seamlessly integrate into multiple applications and make it easier than ever to Own The Night.
Features
Back Lighting Independently Controlled
Selective Yellow LED Light For Fog, Dust, Snow, Rain
Stainless Steel Mounting Bracket Included
Removable Bezel for Color Matching
Removable Bezel and Side Fairings for OEM Applications
9-36 VDC Operation
Flying Leads for Universal Installation
Alloy Housing and Heatsink
Reverse Polarity Protection
Over/Under Voltage Protection
IP68 Compliant - Dust/Water Ingress
Pressure Equalizing Vent
Black Exposed Printed Circuit Board
Patented Optics
50,000 Hr+ LED Lifespan
Wiring Harness Sold Separately
Limited Lifetime Warranty
Off Road Use Only
Specifications
| Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | **Peak Beam Ibntensity(cd) | Horizontal Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4" | 36112 | 1.20 | SPOT | 28 | 2 | 3060 | 725.82 | 269.4 | 538.8 | 72,582 | 16.5 |
11-13521-B_RIGID-360-INSTALLATION (1.04 MB)
