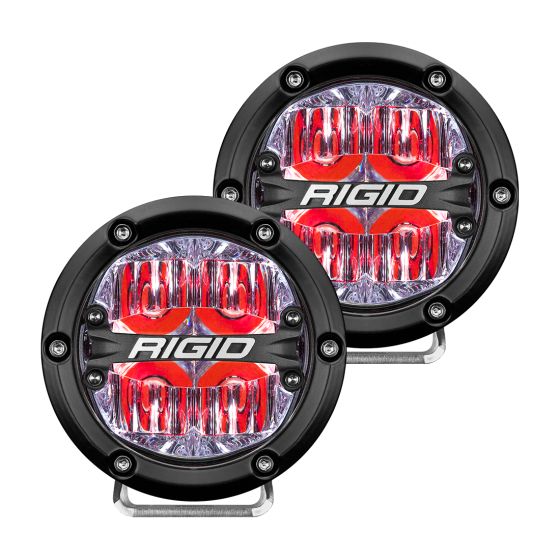

RIGID INDUSTRIES | 360-Series 4 Inch Led Off-Road Drive Optic with Red Backlight | Pair (36116)
SELECT OPTIONS
Description
The 360-Series family of LED lights has optimized beam patterns that project up to 8,600 raw lumens and are protected by an aluminum housing, features a blacked-out circuit board, prominent RIGID branding, and limited lifetime warranty making them the most robust and useful round lights on the market. Choose between a 4-inch or 6-inch light, preferred backlight color: red, white, blue or amber, and beam pattern available from 17 degrees to 60 degrees for a customized experience and look. RIGID's 360-Series round lights seamlessly integrate into multiple applications and make it easier than ever to Own The Night.
Features
Back Lighting Independently Controlled
Available Backlight Colors: Red, White, Blue or Amber
Stainless Steel Mounting Bracket Included
Removable Bezel for Color Matching
Removable Bezel and Side Fairings for OEM Applications
9-36 VDC Operation
Flying Leads for Universal Installation
Alloy Housing and Heatsink
Reverse Polarity Protection
Over/Under Voltage Protection
IP68 Compliant - Dust/Water Ingress
Pressure Equalizing Vent
Black Exposed Printed Circuit Board
Patented Optics
50,000 Hr+ LED Lifespan
Wiring Harness Sold Separately
Limited Lifetime Warranty
Off Road Use Only
Specifications
| Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | **Peak Beam Ibntensity(cd) | Horizontal Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4" | 36116 | 1.20 | DRIVE | 28 | 2 | 3060 | 326.85 | 180.8 | 361.6 | 32,685 | 44 |
11-13521-B_RIGID-360-INSTALLATION (1.04 MB)
