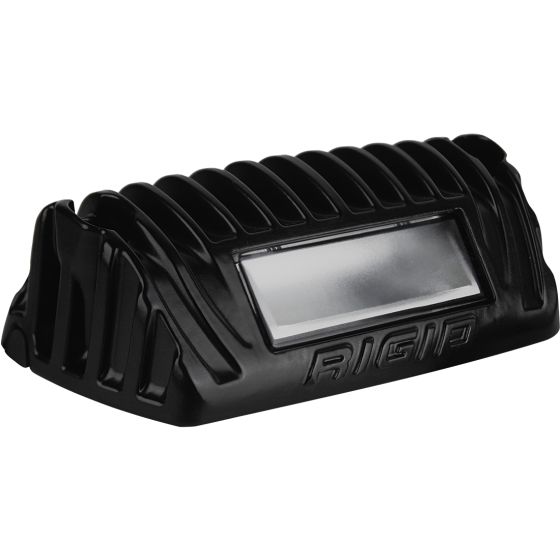

RIGID INDUSTRIES | 1x2 65 Degree DC Scene Light Amber (86630)
SELECT OPTIONS
Description
RIGID 1x2 65° DC Scene Light produces 1100 raw lumens and features a vertical spread of 69° and a horizontal spread of 65°. Using the latest LED technology, all new patent pending optic system, minimal amp draw, and extreme output, the 1x2 65° Scene Light is the perfect area lighting solution. This versatile light can bemounted to your RV, toy hauler, tractor trailer, fire truck and can even be mounted to the undercarriage of your vehicle. Limited Lifetime Warranty.
Features
DC Power LED Scene Or Area Lighting
Flat Mounting Surface
65 Degree Horizontal Spread X 69 Degree Vertical Spread
9-36 V DC
IP68 Compliant
Impact Resistant Polycorbonate Lens
Integrated Thermal Management
Pressure Equalizing Vent
RFI/EMI Protection
Operating Temp -145 Deg To +145 Deg F
Over / Under Voltage Protection
Durable UV Polyester Powder Coat
High Grade Aluminum Alloy Housing And Heat Sink
IP68 Compliant - Dust/Water Ingress
White Polycarbonate Reflector With 98 Percent Reflectivity
RoHS Compliant
Limited Lifetime Warranty
Off Road Use Only
Product comes with

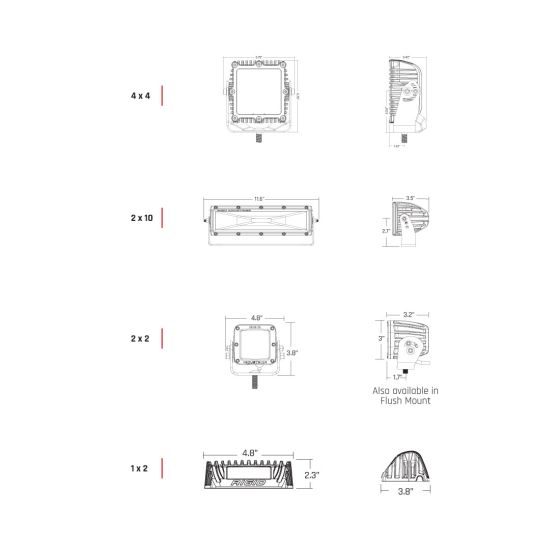

4 x 4 / 2 x 2 / 2 x 10 HOUSING ONLY
Mounting Hardware
Heavy Duty U-Shape Brackets
Vibration Isolators
1 x 2 HOUSING ONLY
Mounting Hardware
DC VERSION ONLY
2-Wire Open Lead, No Connector
AC VERSION ONLY
Standard 110V Outlet Plug
Specifications
Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | **Peak Beam Ibntensity(cd) | Horizontal Beam Angle |
---|---|---|---|---|---|---|---|---|---|---|---|
1"X2" | 86630 | 0.53 | SCENE LIGHT | 10 | 0.7 | 122 | 5.37 | 23.2 | 46.3 | 536.6 | 100.3 |
