REDARC | TVMS Prime (TVMS1280-NA)
SELECT OPTIONS
Description
Product details
A RedVision System to suit setups with more than two water tanks and a mix of low and high powered devices. Ideal for camper trailers and mid-sized caravans.
- TVMS Prime Instruction Manual EN
- RedVision Brochure
- RedVision Display Quick Start Guide
- Additional Documents
- RedVision Configuration Guide

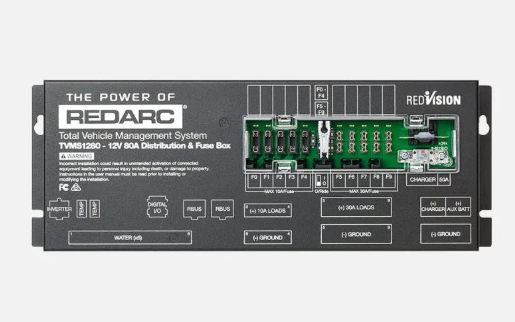

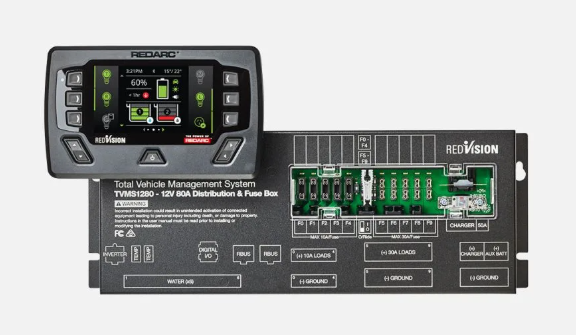

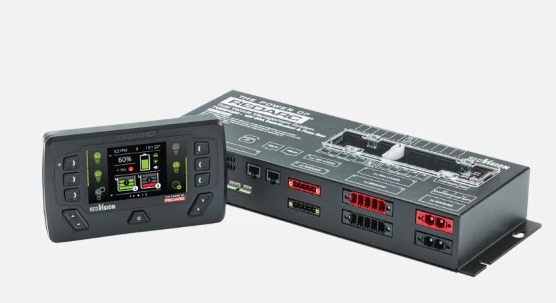

TVMS Prime is a RedVision system to suit setups with more than two water tanks and a mix of low and high powered devices. Ideal for camper trailers and mid-sized caravans.
6 tank sensor inputs, a dedicated inverter channel and 80A max current make the TVMS Prime an absolute powerhouse.
CHARGING
Whether you’re free camping or on a powered site when paired with the Manager30 battery manager (sold seperately), the TVMS Prime has the smarts to keep your secondary batteries charged while you travel, from solar, or from a power point at home. This state-of-the-art 30A charger measures your battery levels and adjusts its charge rate on the fly, ensuring your secondary batteries are kept charged and healthy.
MONITORING
Relax knowing your power is in good hands. Using the Manager30 battery manager helps you keep track of your essentials in real time. State of charge, charge remaining, charge/discharge current and battery temps are all available on the included RedVision display or connected phone app.
Six dedicated tank level sensor inputs and two ambient temperature inputs make the TVMS Prime the all-seeing eye of your power set up.
CONTROL
The TVMS Prime allows complete control of multiple on-board devices including lights, fans, fridges, inverters, and pumps.
Its 10 output channels include 5x 30A and 5x 10A channels, perfect for controlling a mix of low and high-powered devices. With a max current of 80A, you’ll never be limited to how many devices you can run at once. A dedicated inverter channel brings the total number of channels to 11.

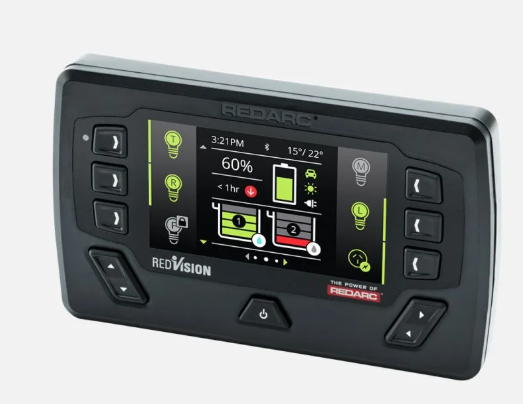

Take control outside with the connected Bluetooth app or use the included RedVision display.
AUTOMATION
Save time and energy by using RedVision to automate those mundane tasks. With the press of a button, switch off everything except for your fridge or power down non-essential loads when your batteries are running low.
*TVMS Rogue is compatible with RedVision Display units (DISP4300-RC) manufactured from January 2023, serial numbers beginning with 23. Displays manufactured from July 22 to Jan 23 (serial numbers beginning 2207 - 2212) are upgradable.
California residents: see Proposition 65 information
REDARC recommends that our products are installed by a qualified auto electrician or technician.
HAVE A QUESTION?
Specifications
| Warranty | 2 Years |
|---|---|
| gtin_barcode | 9338628006403 |
| brand | REDARC |
| Weight | 4 lb 7 oz (Distribution box) |
| depth | length | 15.2" (Distribution box) |
| width | 5.4" (Distribution box) |
| height | 2.3" (Distribution box) |
| Suitable For 24V Systems | No |
| Suitable For 12V Systems | Yes |
| Max. Charger Current | 40A |
| Max. Battery Current | 80A |
| MPPT Solar Regulator | No |
| No. Switched Circuits | 5 x 10A Max, 5 x 30A Max |
| Trailer Install | Yes |
| Engine Bay Install | No |
| System Voltage | 12V |
| Cabin/ Canopy Install | Yes |
| Display Size | 4.3" |
| Operating Temperature | -4°F to 140°F |
