Description
REDARC recommends that the Tow-Pro Liberty be installed with the universal pig tail wiring harness (TPH-025), or utilizing one of our range of vehicle specific brake controller wiring harnesses and switch inserts to allow a quick and easy installation specific to major vehicle makes and models.
Product details
The REDARC Tow-Pro Liberty is the latest innovation in brake controller technology, perfect for highway driving.
Looking for the best brake controller for highway driving? The REDARC Tow-Pro Liberty is the latest innovation in brake controller technology that features inertia sensing technology perfect for hauling day to day or towing on highway conditions, with vehicle specific wiring harnesses available for an easy installation.
Rugged reliability meets everyday ease-of-use
Using Everyday Mode, the Tow-Pro Liberty uses proportional braking to measure the vehicles braking force and applies the trailer brakes to match, ensuring a smooth braking application and no push or pull on the vehicle when braking. Suitable for 12-volt systems, the Tow-Pro Liberty from REDARC self calibrates for easy setup and install, and is compatible with both electric and electric-over-hydraulic brakes.
Swaystop Control
Keep all your travelers and precious cargo safe on the road with SwayStop. The second you start to feel the trailer sway, feel confident using SwayStop Control and pull your trailer immediately back into line with the touch of a button. Smooth and precise control right at your fingertips.
Built For Safety
The REDARC Tow-Pro series of brake controllers eliminates accidental trailer braking which can send your trailer into a skid. The Tow-Pro’s advanced three-axis accelerometer senses movement in all directions, applying the trailer brakes only when necessary, providing the safest towing experience when compared to other brake controllers on the market.
Perfect factory look with no more knee knocking

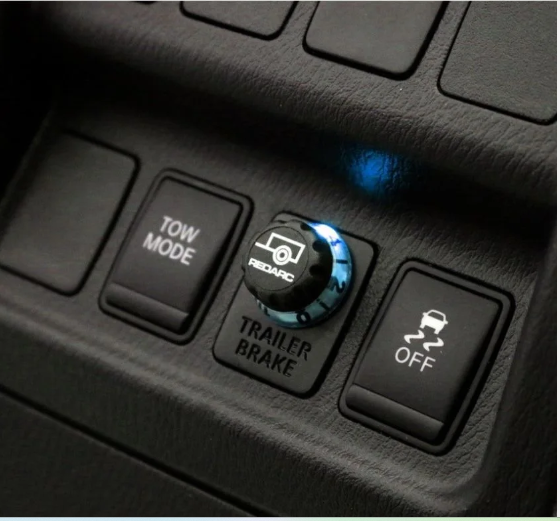

The Tow-Pro Liberty comes with a manual override function via the discreet dash mounted remote head unit, allowing you to quickly and safely avoid trailer sway at the tap of a button. Designed, manufactured and tested in Australia, the Tow-Pro Liberty is the perfect proportional brake controller for your truck or tow vehicle. Add a brake controller with a factory look and feel to your vehicle dash that not only gives you the smooth automatic braking experience when towing on the highway, but also ensures the safest and most innovative technology for you and your family on the road.
Simplify Setup
With simple, one time calibration as soon as you start driving - with or without a trailer connected - the Tow-Pro is always ready for any family getaway or last minute trip. Tow the RV, trailer or boat without needing to worry about setup every time. Combine our Tow-Pro range with our wiring harnesses and switch inserts for the ultimate electric brake controller setup or get everything needed for a Tow-Pro installation with our brake controller kits. We also have a handy guide to help you find the right Tow-Pro wiring harness for a vehicle.
Benefits of a Tow-Pro Liberty Electronic Brake Controller
Everyday Mode for smooth proportional braking
SwayStop Control to stop trailer sway with one touch
Factory look, dash mounted remote head for ultimate control at your fingertips

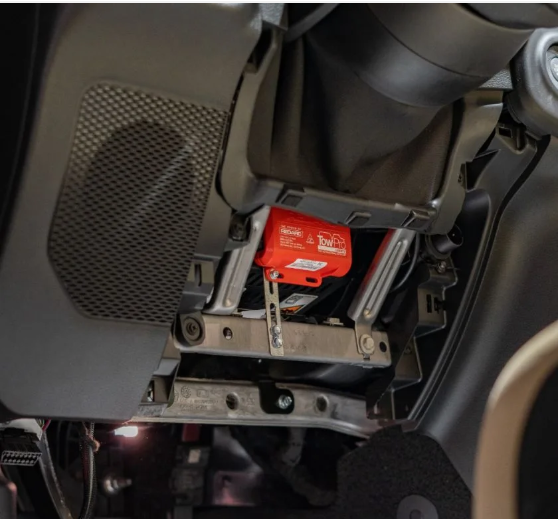

Main unit mounted behind the dash keeping the drivers leg space clear and no interference with airbags.
Suitable for 12V vehicles
Active calibration for easy setup
Operates both electric and electric/hydraulic trailer brakes.
California residents: see Proposition 65 information
REDARC recommends that our products are installed by a qualified auto electrician or technician. We recommend product installation through a member of the REDNetwork, suitably qualified auto electrician or installer which can be found using the Find An Installer tool on the REDARC website.
Specifications
| Warranty | 2 Years |
|---|---|
| gtin_barcode | 9338628006311 |
| brand | REDARC |
| Remote head meets UNECER21 and FMVSS 201 safety standards | Yes |
| Active Calibration | Yes |
| Proportional Mode (inertia sensing) for highway driving | Yes |
| User-Controlled Mode for off-road driving | No |
| Weight | 7oz |
| operating voltage | 9 - 16V |
| Dash mounted remote head | Yes |
| Dexter & Tuson Sway Control System approved | Yes |
| Operates electric and electric/hydraulic brakes | Yes |
| Brake Input Signal Voltage | ON: +12V nominal OFF: 0V |
| Suitable For 12V Systems | Yes |
| Suitable for 24 volt systems | No |
| Cable Length | 1 m (remote head cable) |
| Operating Temperature | -4°C to 140°C |
| 1-2 trailer axles | Yes |
| 1-3 trailer axles | No |
| Input Voltage | 12V |
| Max Power Current | 18A |
| Includes Universal Bare Cable Harness | No |
| Includes TPSI-001 Universal Switch Insert | No |
